THX-5002-S
In-Ceiling Speaker
$2,099.99

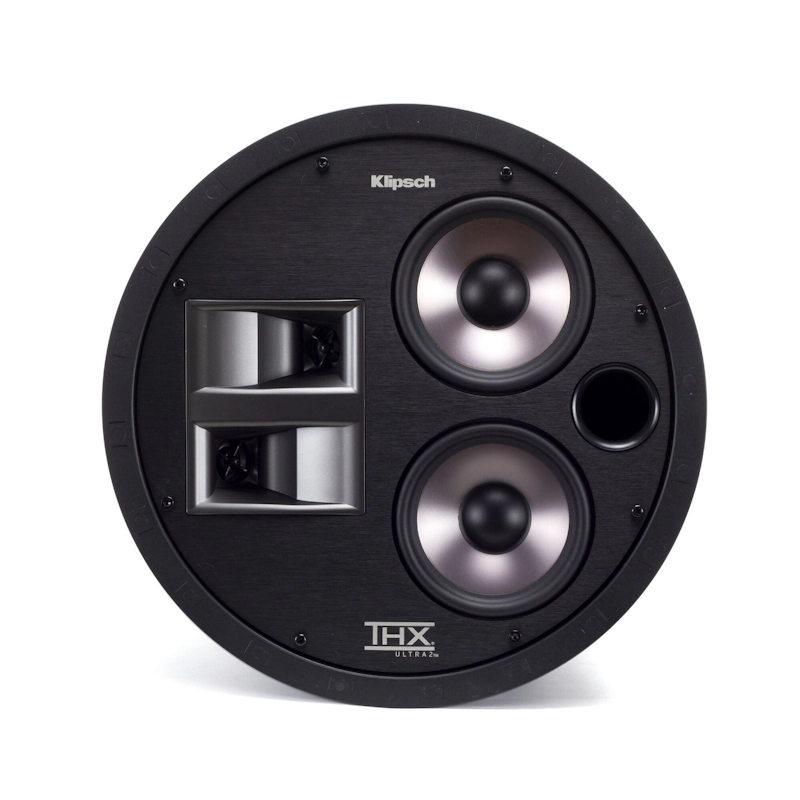

So stunningly detailed and immersive, the THX-5002-S in-ceiling surround speaker brings a whole new dimension of reality to home theater. Perhaps that's why it's the first of its kind to receive the highly respected Ultra2 certification from THX.
Features
Key Product Features
| Dual 1” Titanium tweeters |
| Dual 5.25” Cerametallic Woofers |
| THX® Ultra2 Certified |
| Cinema Quality Sound |
| Maximum Installation Reliability |
| Unlimited Flexibility |

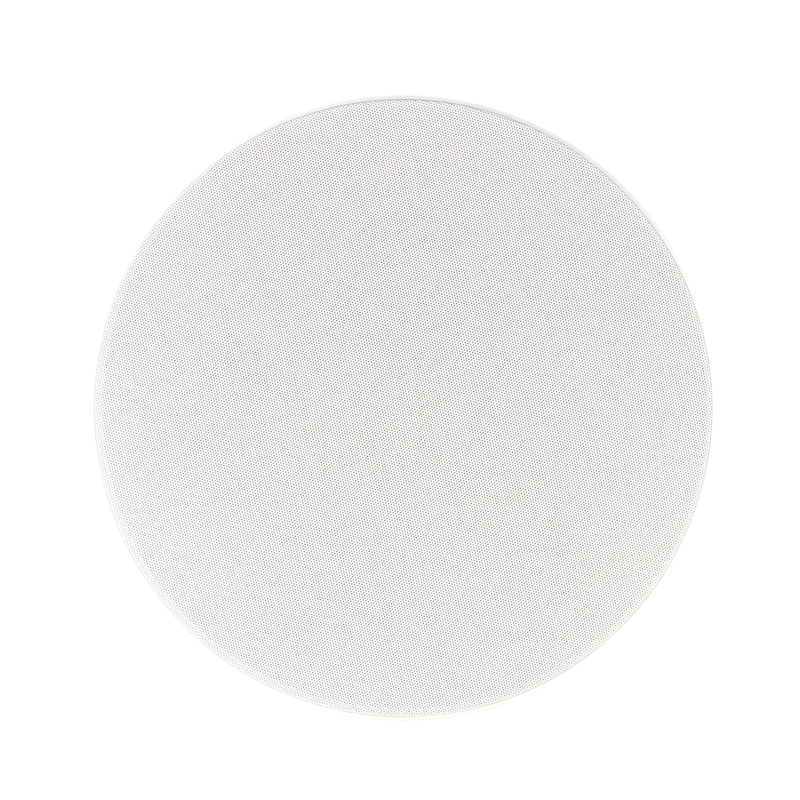

| Edge-to-Edge Grille |
Specifications
Specifications
| System Type | 2-way In-ceiling |
| Frequency Response | 45 Hz - 20 kHz +/- 3dB |
| Power Handling | 100W/400W |
| Sensitivity | 93dB |
| Impedance | 8 Ohms |
| Crossover Frequency | 2500Hz |
| High Frequency Driver | Two 1” Titanium tweeters in vertically stacked tractrix horns |
| Low Frequency Driver | Two 5.25” Cerametallic Woofers |
| Enclosure Type | Bass Reflex via 1.6” diameter port - Front Flush with Ceiling |
| Hole dimensions (mm/in, HxWxD) | 13.25” (33.7cm) |
| Dimensions | 14.89” (378.21mm) |
| Mounting Depth | 9.23” (234.44mm) |
| Weight | 11 lbs. (5.0kg) |
| Finish | White with Brushed Aluminum Facia |
| Installation Kit | IK-502-C |
| Cutout Diameter | 13.39” (349.11mm) |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here: THX-5002-S Spec Sheet.
