THX-5000-SUR

As part of the THX® family, the THX-5000-SUR surround loudspeaker with Klipsch Wide Dispersion Surround Technology™ (WDST) brings a new dimension of reality to home theater by using the same high-performance technology as the Klipsch professional cinema systems.

Features:

    • Two 5.25-inch Cerametallic™ woofers
    • Dual 5-inch square Tractrix® Horn tweeters
    • Top-of-the-line internal wiring

    Select your location and we'll connect you to the premium custom installer in your area.

    Representative(s) for State:

    Specifications

    Frequency Response80Hz-20kHz ± 3dB
    Sensitivity96dB @ 2.83 volts / 1 meter
    Nominal Impedance8 ohms compatible
    High Frequency Crossover2100Hz
    Power Handling100 watts maximum continuous (400 watts peak)
    Enclosure TypeSealed
    Enclosure MaterialMedium density fiberboard construction (MDF)
    TweeterTwo 1" (2.5cm) magnetically shielded titaniumdome compression drivers with neodymium magnet structures
    High Frequency Horn5" square 90° x 60° Tractrix® Horns
    WooferTwo 5.25" (13.3cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers
    InputsTwo sets of binding post speaker terminals (connected via brass strap jumpers)
    Dimensions13.75" (35cm) H x 13" (33cm) W x 8.5" (21.6cm) D
    Weight20 lbs. (9.1kg)
    FinishGalaxy Black cabinet with Black anodized aluminum fascia
    Mounting2-bolt pattern 1/4"-20 thread
    KS-525-THX side

    The THX-5000-SUR produces a smooth, seamless, broad distribution of sound by employing a pair of 5.25-inch Cerametallic™ woofers and dual 5-inch square Tractrix® Horn tweeters in a Wide Dispersion Surround Technology array. WDST is the industry's no-compromise approach to surround speaker design because it offers both rich, immersion surround sound and precise localization of individual effects from a speaker that has much more placement flexibility than conventional designs.

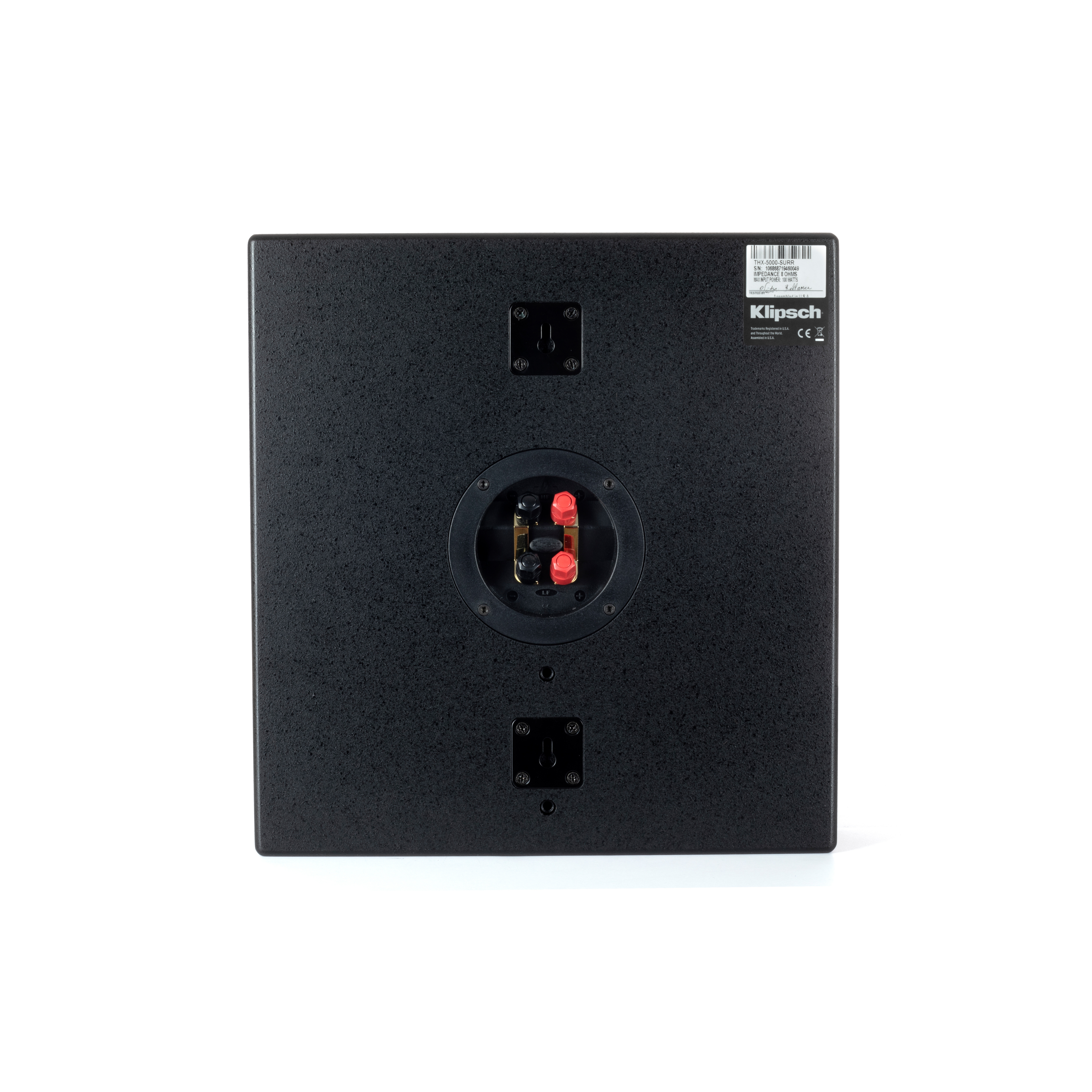

    KS-525-THX back

    This surround's sealed enclosure has the dado and rabbet construction used in Klipsch professional speakers, ensuring cabinet integrity in suspended applications. The Omni-Mount suspension points facilitate wall or ceiling mounting using standard hardware.

    Available in a custom Galaxy black finish with an aluminum fascia, the THX-5000-SUR also utilizes top-of-the-line internal wiring to help listeners experience the true impact and exhilaration of surround sound.
