Specifications
Frequency Response | 48Hz-20kHz ± 3dB |
Sensitivity | 97dB @ 2.83 volts / 1 meter |
Nominal Impedance | 8 ohms compatible |
High Frequency Crossover | 1400Hz |
Power Handling | 150 watts maximum continuous (600 watts peak) |
Enclosure Type | Bass reflex via front-mounted port |
Enclosure Material | Medium density fiberboard construction (MDF) |

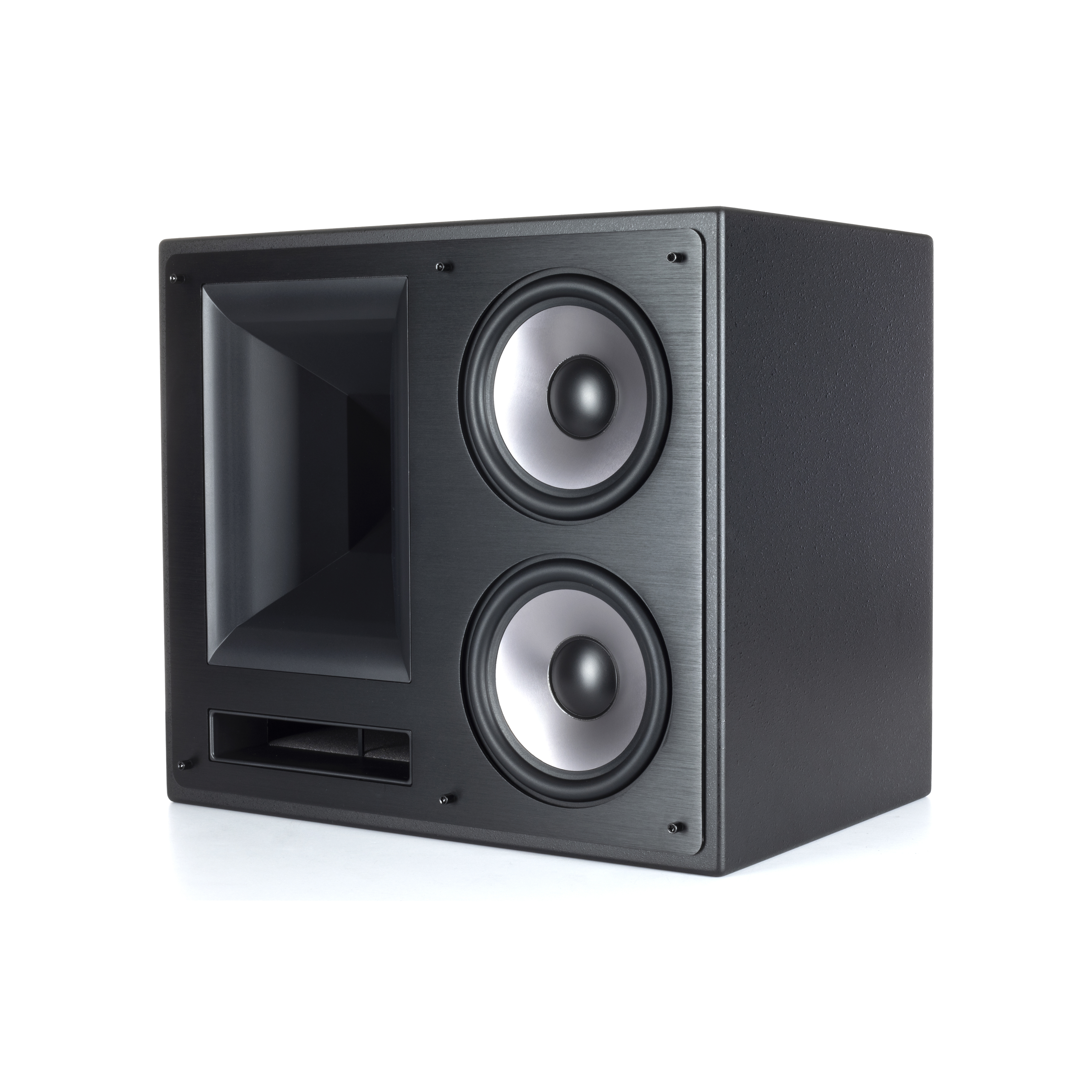

Tweeter | 1" (2.5cm) magnetically shielded titanium dome compression driver with 9.6oz ceramic magnet structure |
High Frequency Horn | 10" x 6" rectangular 90°x 60 °Tractrix® Horn |
Woofer | Two 6.5" (16.5cm) magnetically shielded, Cerametallic™ cone, cast aluminum frame drivers |

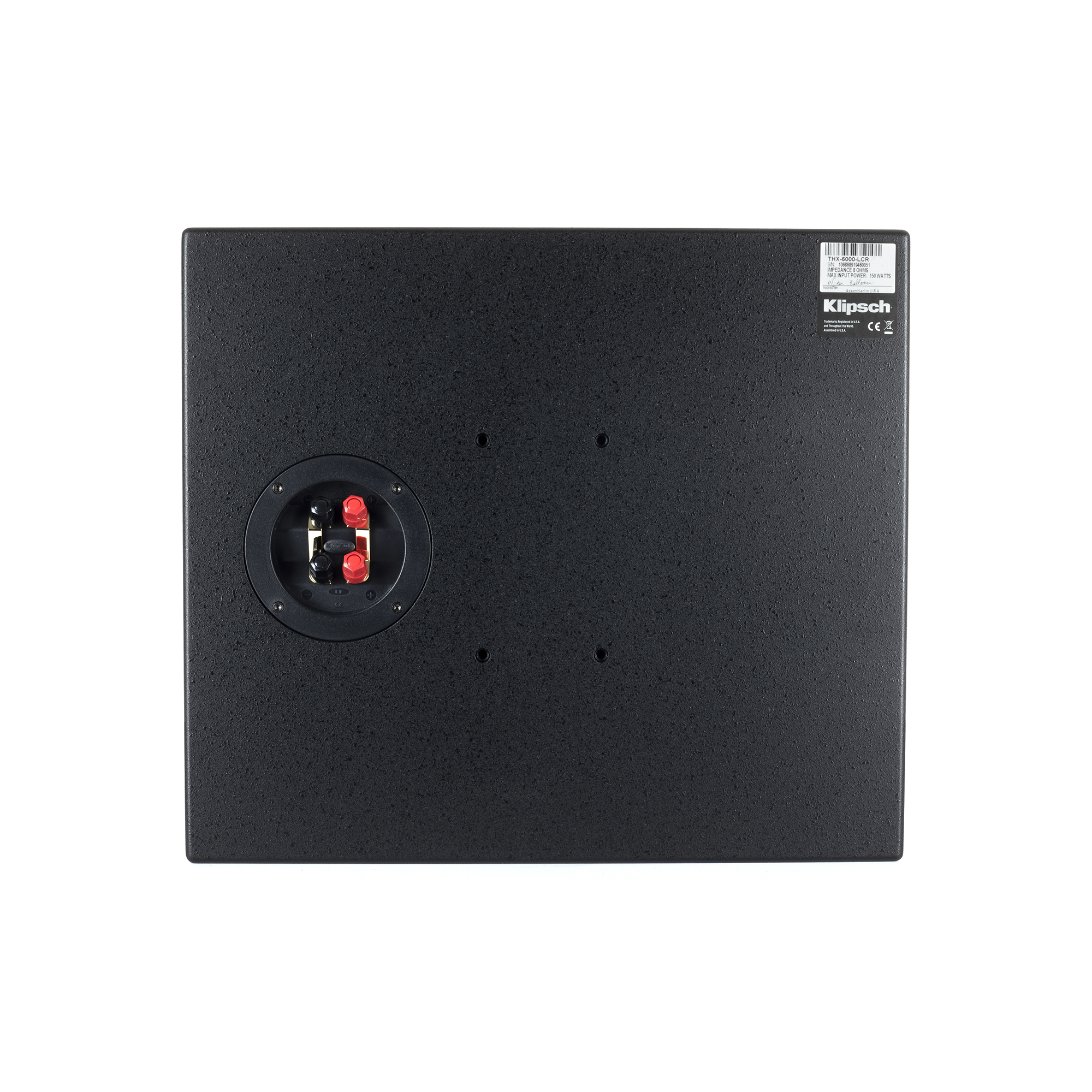

Inputs | Two sets of binding post speaker terminals (connected via brass strap jumpers) |
Dimensions | 15" (38.1cm) H x 17" (43.2cm) W x 12.5" (31.8cm) D (w/grille) |
Weight | 39 lbs. (17.7kg) |
Finish | Galaxy Black cabinet with Black anodized aluminum fascia |
Mounting | 4-bolt pattern 1/4"-20 thread |
