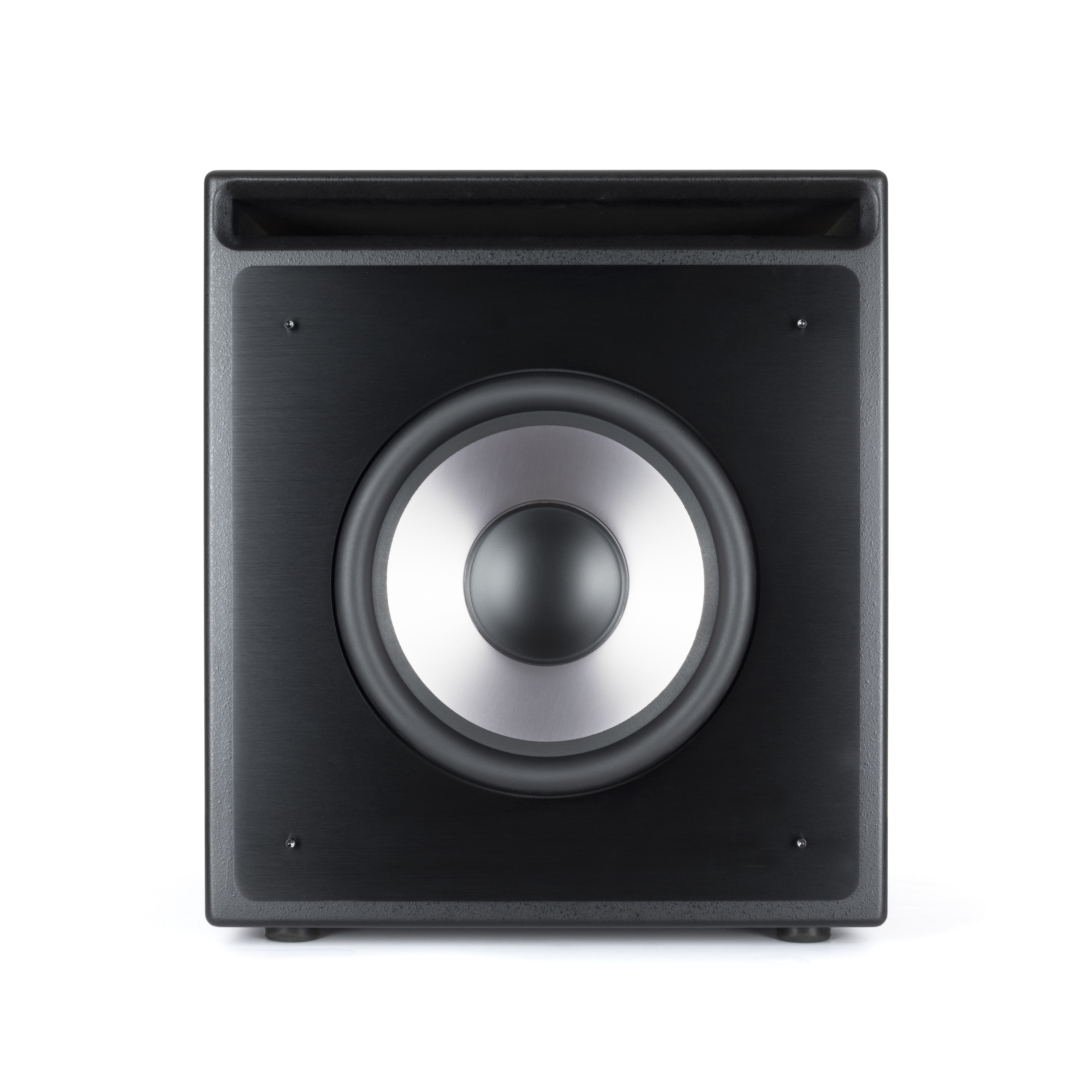

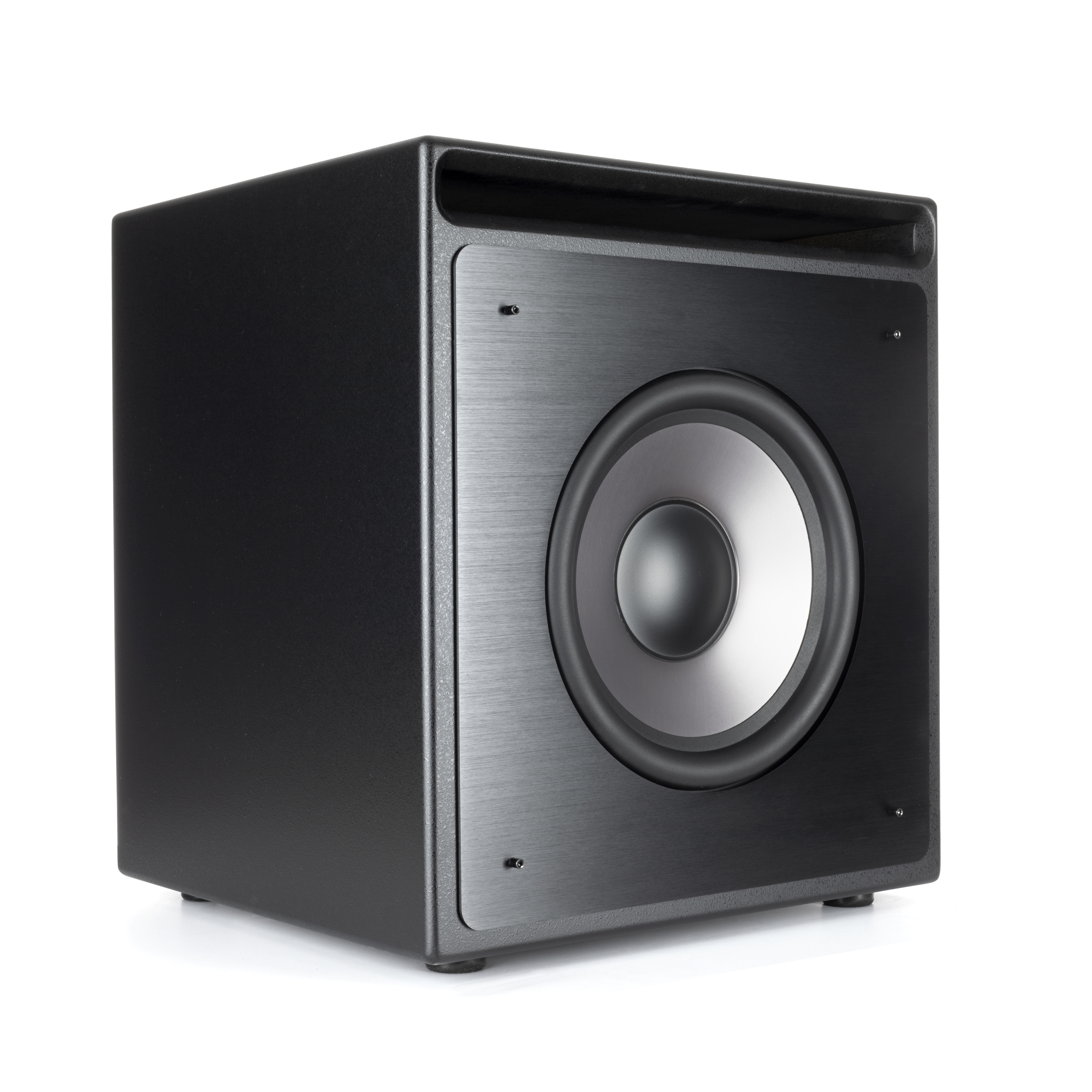

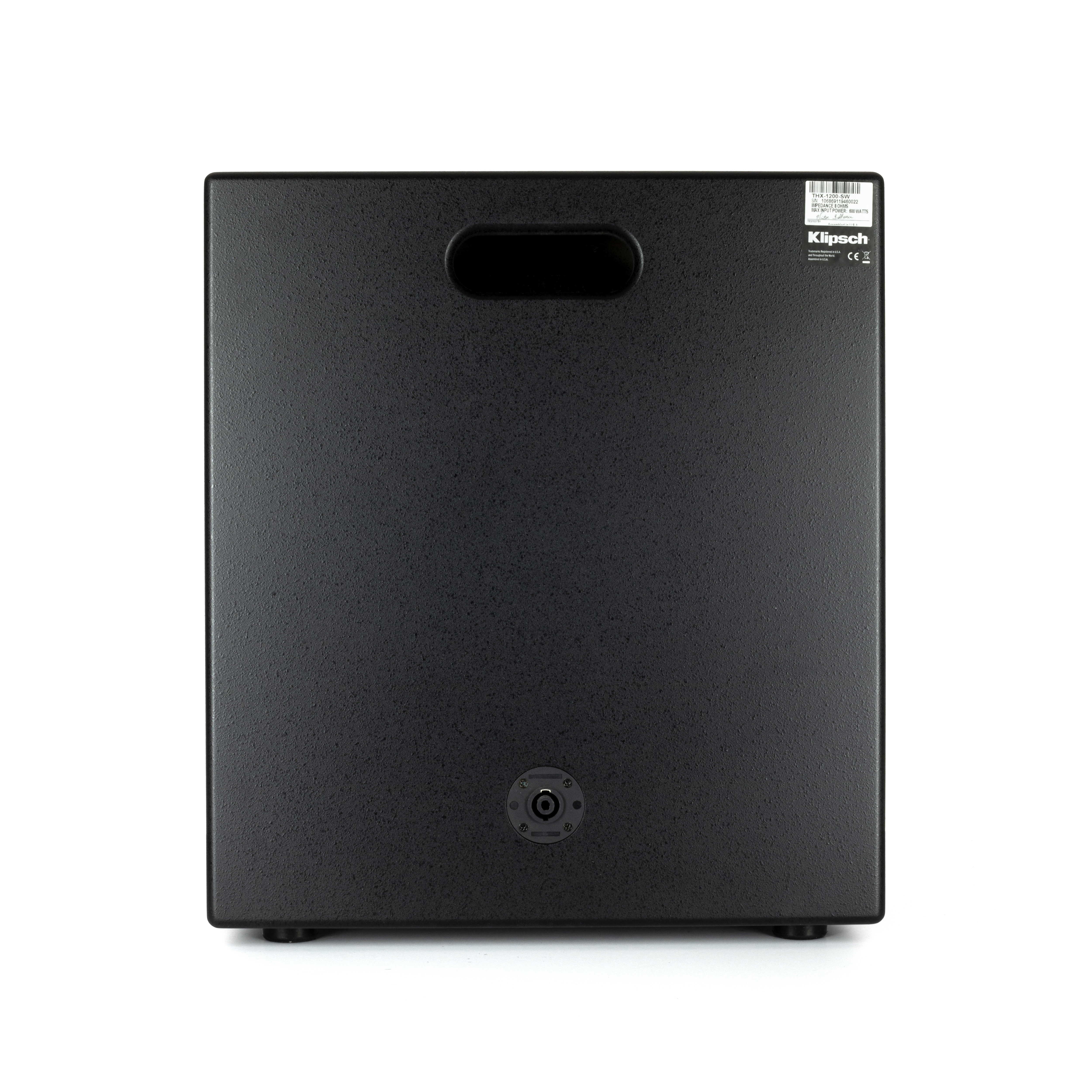

THX-1200-SW

Subwoofer

The world's finest theater operators choose Klipsch cinema systems because they deliver the full impact of the most intense action movie soundtracks without sacrificing musical definition. When designing the THX-1200-SW subwoofer, Klipsch applied its theater experience to bring the same powerful, deep-driving bass to the comforts of home.

Available at IQ Home Entertainment

Select your location and we'll connect you to the premium custom installer in your area.

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

THX Ultra2 Lifestyle 28229 635042275127530000

To achieve intense, deep-bass output in large rooms, this high-performance subwoofer that is part of the THX® family features a 12-inch, long-throw Cerametallic™ driver and front-firing port. It includes a 15 pound motor structure and a 20-foot Monster® THX Ultra cable with Neutrik Speakon® connectors. The subwoofer is driven by an external 1-kilowatt amplifier (KA-1000-THX) tailored to its characteristics for maximum output and reliability with extremely low distortion.

The subwoofer's enclosure has the dado and rabbet construction used in Klipsch professional speakers for structural integrity.

Finished in Galaxy black with an aluminum fascia, the KW-120-THX also features top-of-the-line internal wiring to ensure that every roar or explosion is heard with complete clarity.

Features

Key Product Features

12-inch, long-throw Cerametallic™ driver
Front-firing port
Top-of-the-line internal wiring

Specifications

Key Product Specifications

Frequency Response 20-200Hz ±3dB
Max Acoustic Output 130dB @ 30Hz, 122dB @ 20Hz, 112dB @ 15Hz 1/8 space, 1M (2 enclosures side-by-side per THX Ultra2)
Nominal Impedance 8 ohms
Enclosure Type Bass-reflex via front-firing slot port
Amplifier Type Use only with KA-1000-THX
Amplifier Power See KA-1000-THX specifications
Woofer 12" (30.5cm) front firing, Cerametallic™ cone, cast aluminum frame driver with a 240oz ceramic magnet structure
Dimensions 20.25" (51.4cm) H x 17.75" (45.1cm) W x 17.75" (45.1cm) D (w/grille)
Weight 80 lbs. (36kg)
Speaker Enclosure Medium density fiberboard construction(MDF)
Finish Galaxy Black cabinet with Black anodized aluminum fascia

Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: THX 1200 SW Spec Sheet v01 .

Product Manual

Download the Product Manual for THX-1200-SW Subwoofer here: THX Ultra2 Owners Manual .
