ALL-NEW

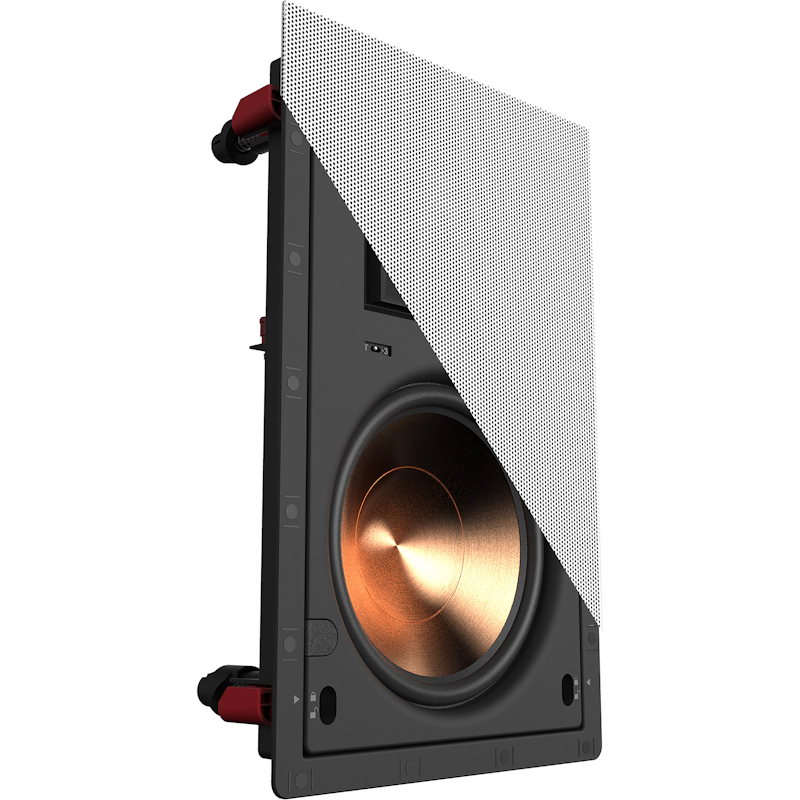

PRO-18RW angled with half grille

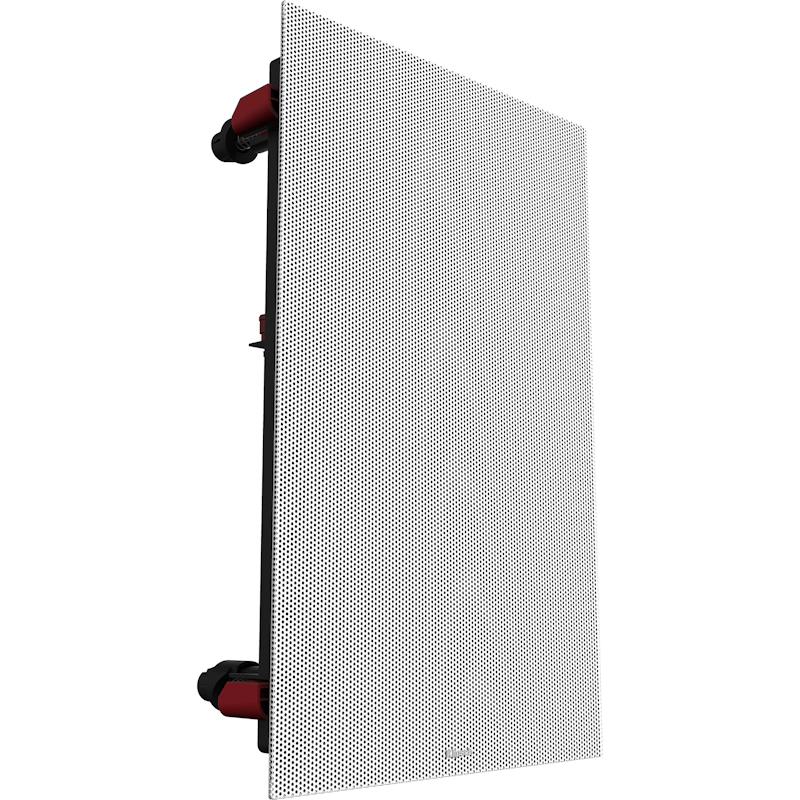

PRO-18RW angled with full grille

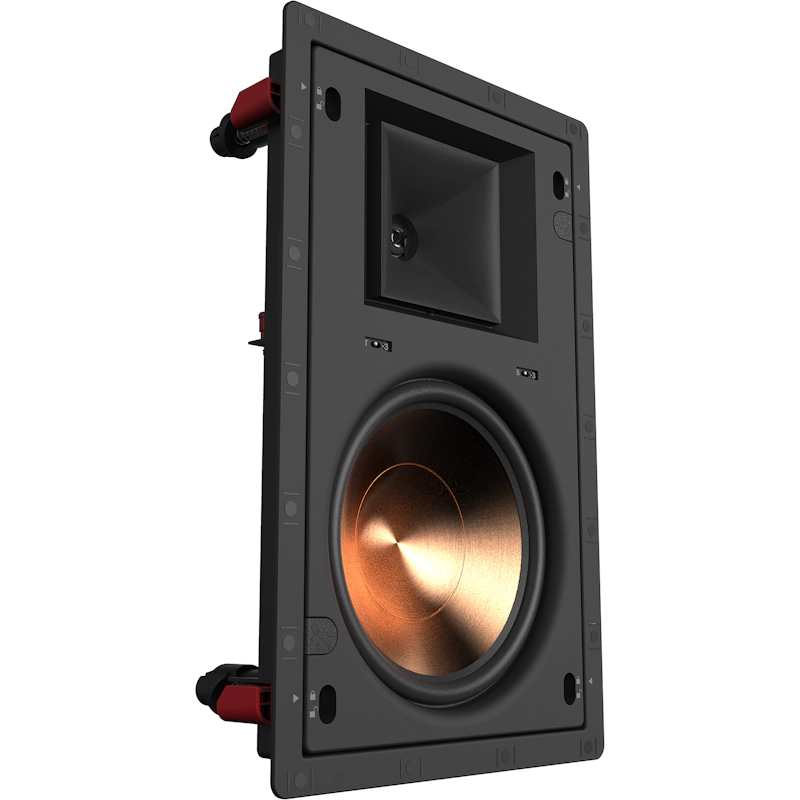

PRO-18RW angled

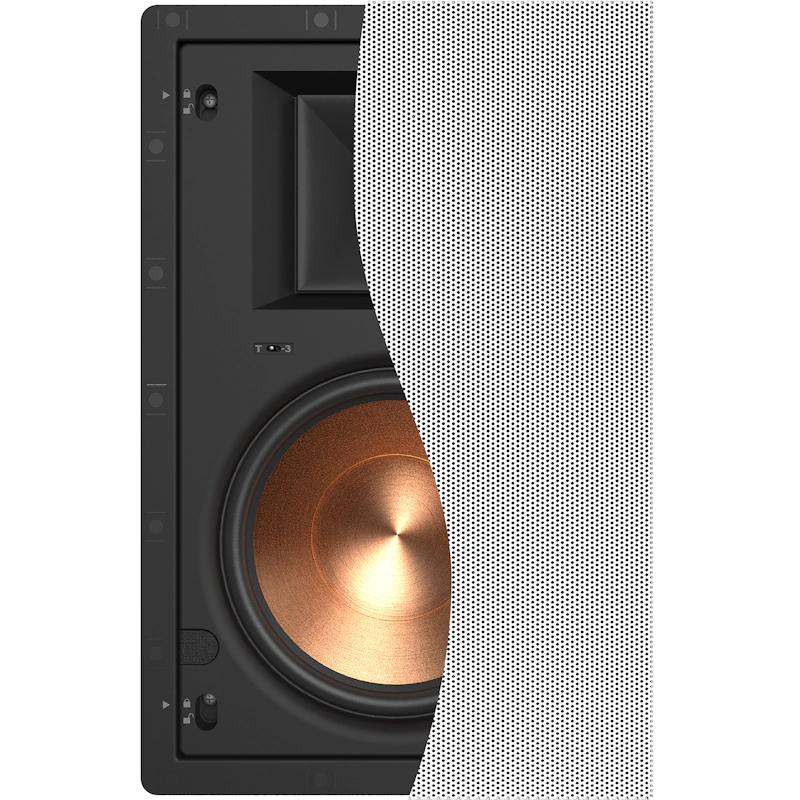

PRO-18RW front with half grille

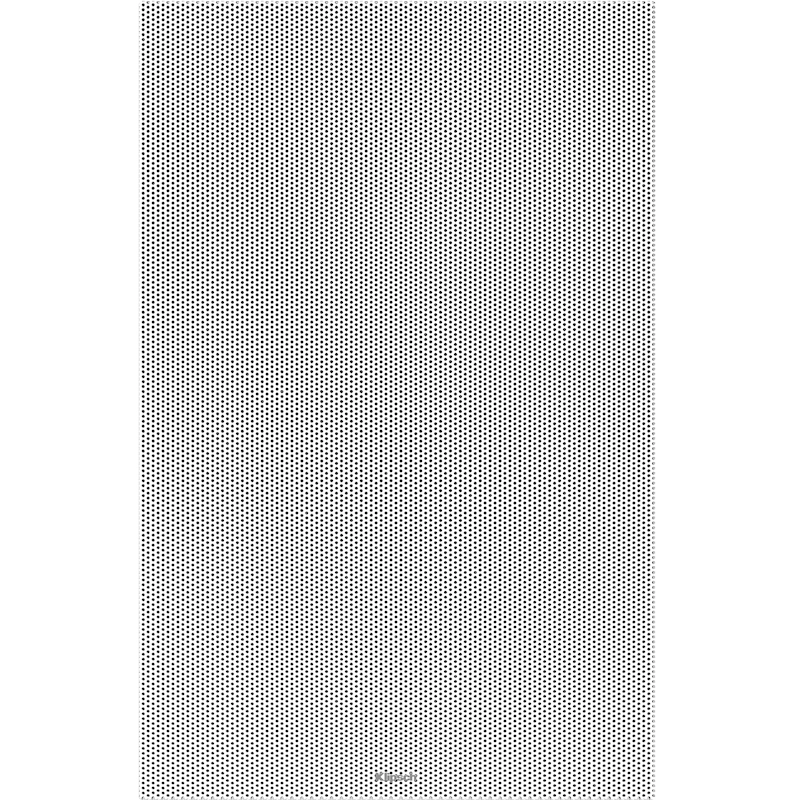

PRO-18RW front with full grille

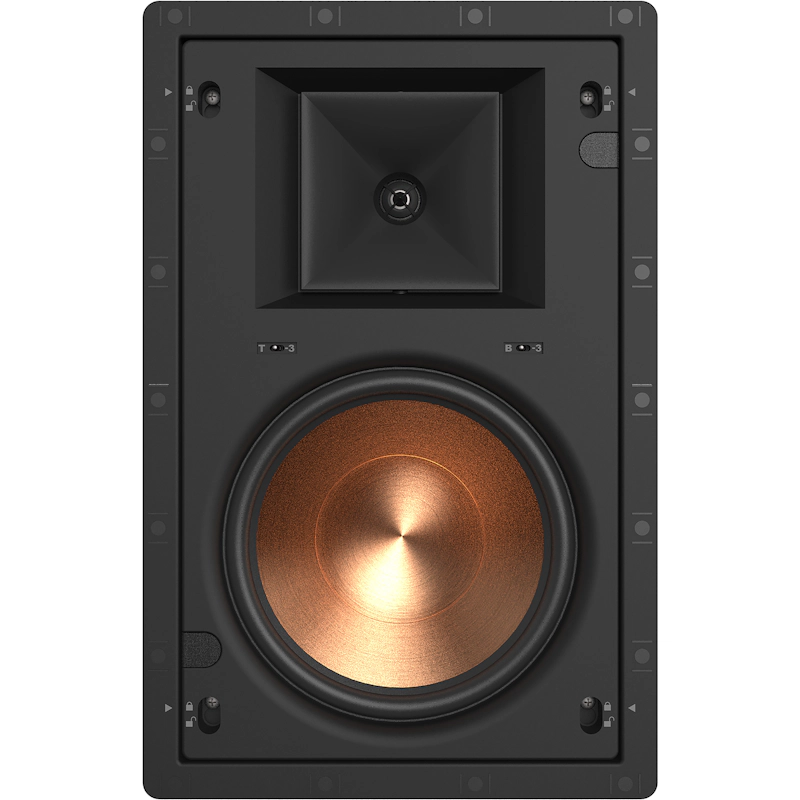

PRO-18RW front

PRO-18RW

(# 1064444) Product Support »

Featuring a 8” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-18RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.

Features:

  • 8” Injection Molded Graphite (IMG) Woofer
  • 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
  • Exclusive, modular SecureFit™ Installation System
  • Bezel-Free square and round paintable magnetic grilles
  • Controlled Dispersion™ Technology
  • Magnetic paint shield

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Frequency Range56Hz - 23kHz +/- 3dB
High Frequency Driver1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
Low Frequency Driver8" (20.32cm) IMG Woofer
Sensitivity95 dB @ 2.83V / 1m
Coverage Angle90° x 90°
Power Handling50W RMS / 200W Peak
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions10.16” W x 15.75” H x 4.0” D (25.8cm H x 40.0cm W x 10.1cm D)
Mounting Depth3.9” (9.9cm)
Cutout Diameter14.8” H X 9.25” W (37.5cm H X 23.5cm W)
Product Weight7.9lbs (3.6kg)
IncludedGrille, Paint Shield
Installation KitIK-800-W II or IK-800-W (Sold Separately)
Built From2017

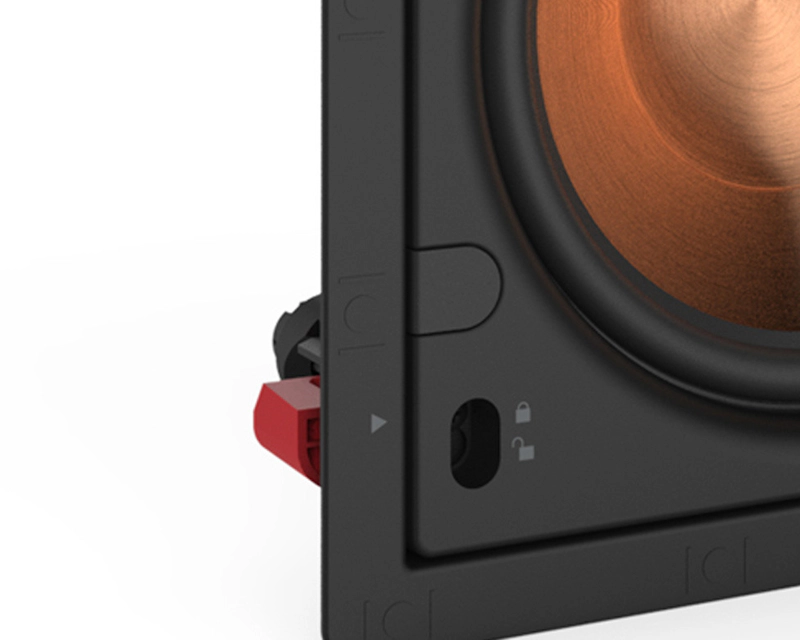

    Securefit W

    SECUREFIT™ INSTALLATION SYSTEM

    The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

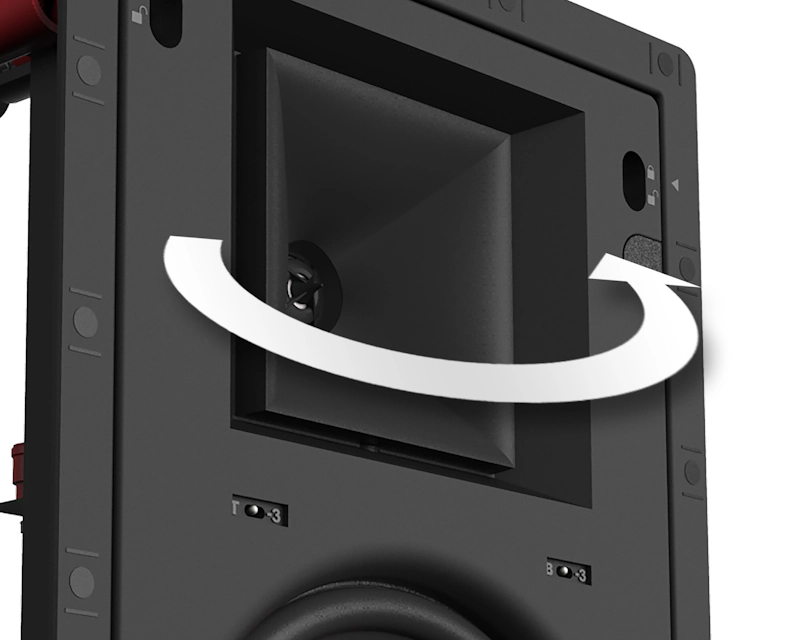

    Controlled Dispersion Technology Cdt W

    CONTROLLED DISPERSION™ TECHNOLOGY

    Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

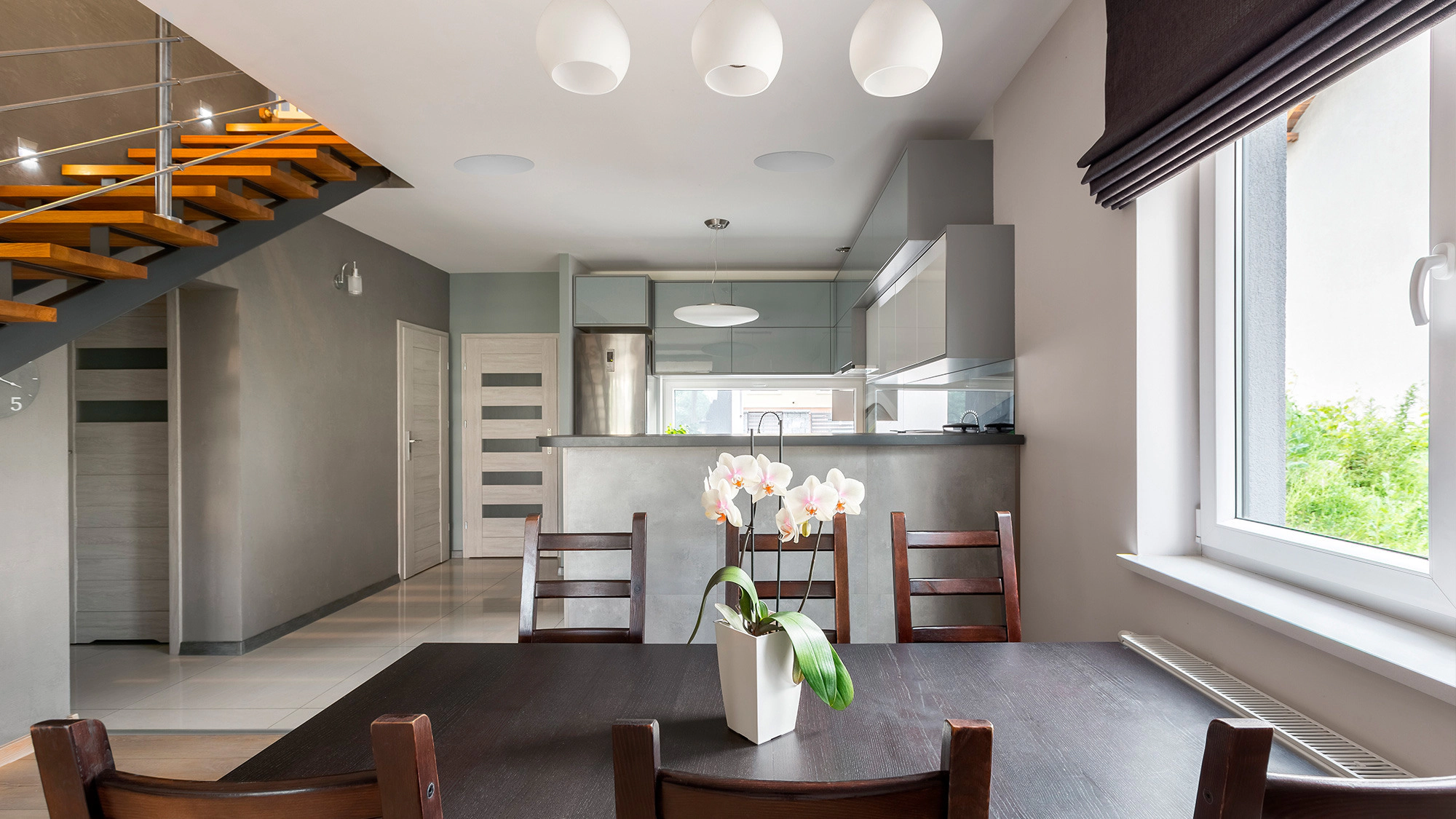

    Kitchen Custom Installation

    ALL NEW, BEZEL-FREE MAGNETIC GRILLE

    A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

    Paint Shield 2

    PVC PAINT SHIELD INCLUDED

    Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
