PRO-16RC

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RC brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.

Select your location and we'll connect you to the premium custom installer in your area.

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Securefit

SECUREFIT™ INSTALLATION SYSTEM

The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

Controlled Dispersion Technology CDT C

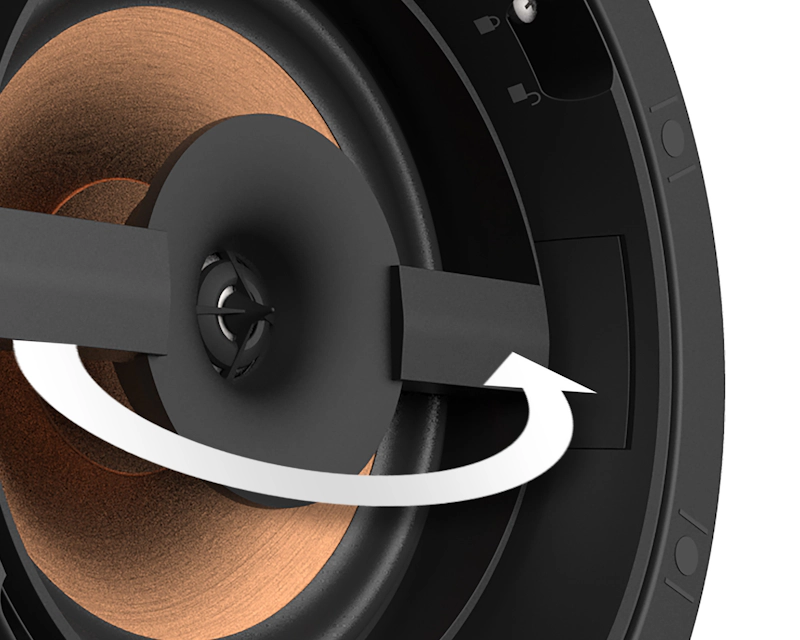

CONTROLLED DISPERSION™ TECHNOLOGY

Controlled Dispersion™ Technology allows for the tweeter and woofer to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

CEDIA Custom Series

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Paint Shield 2

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Features

Key Product Features

6.5” Injection Molded Graphite (IMG) Woofer
1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
Exclusive, modular SecureFit™ Installation System
Bezel-Free square and round paintable magnetic grilles
Controlled Dispersion™ Technology
Magnetic paint shield

Specifications

Key Product Specifications

Power Handling 50W RMS / 200W Peak
Product Dimensions 9.31" W x 9.31" H x 6.4" D ( 23.7cm W x 23.7cm H x 16.2cm D)
Cutout Dimensions Ø8.15 " (Ø20.7cm)
Product Weight 7 lbs (3.18kg)
Sensitivity 94 dB @ 2.83V / 1m
Frequency Range 63Hz - 23kHz +/- 3dB
High Frequency Driver 1" (2.54cm) Aluminum Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver 6.5" (16.51cm) IMG Woofer
Coverage Angle 100°
Impedance 8 Ohm Compatible
Enclosure Type ABS/Infinite Baffle
Finish Black Baffle/Frame, White Paintable Grille
Mounting Depth 6.15" 15.6cm)
Included Round Grille, Square Grille, Paint Shield
Installation Kit IK-650-C II (Sold Separately)
Built From 2017

Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: PRO-16RC Spec Sheet .
