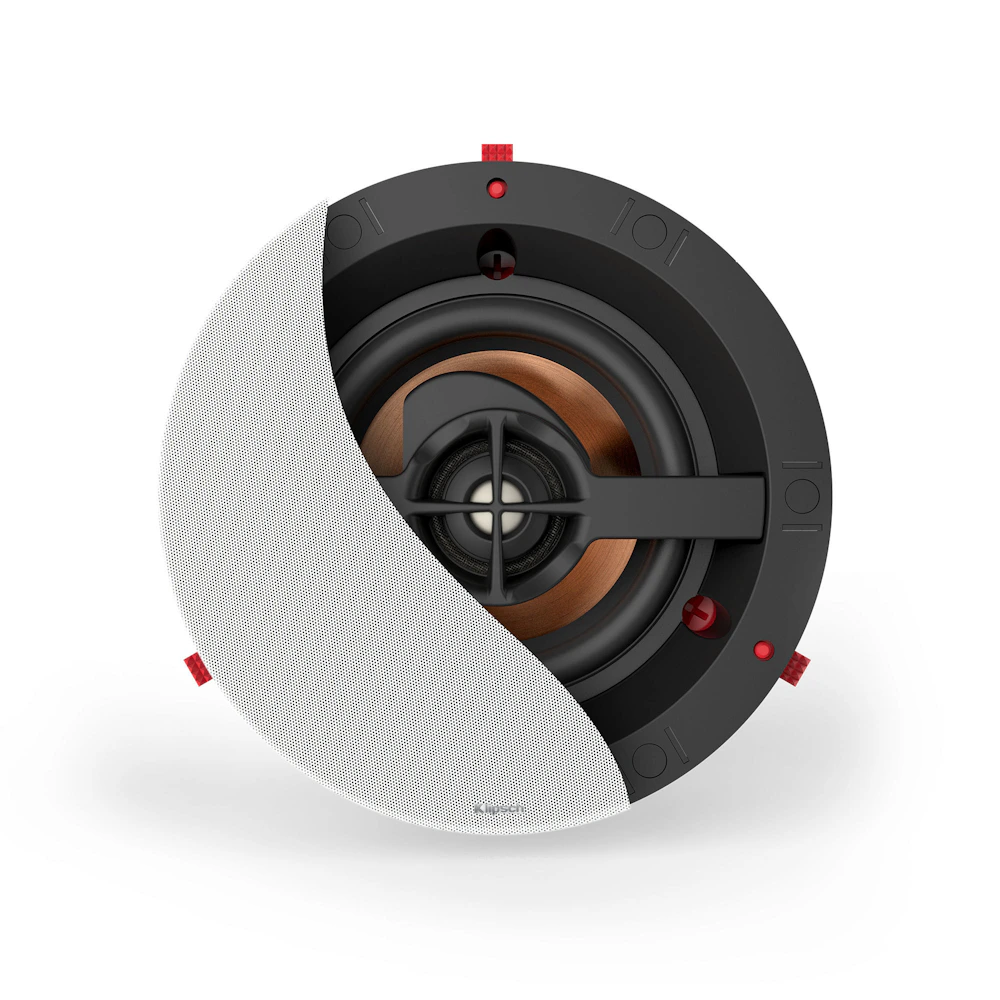

PRO-14RC front with half grille

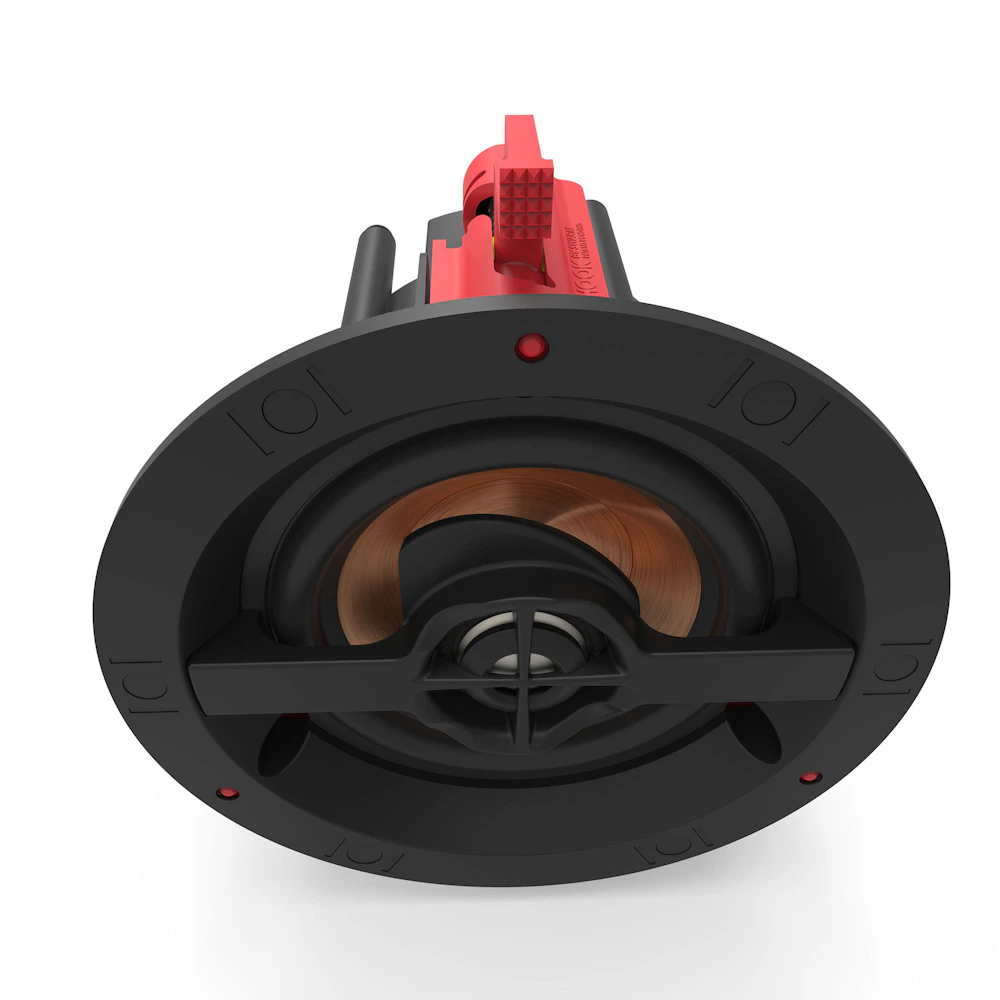

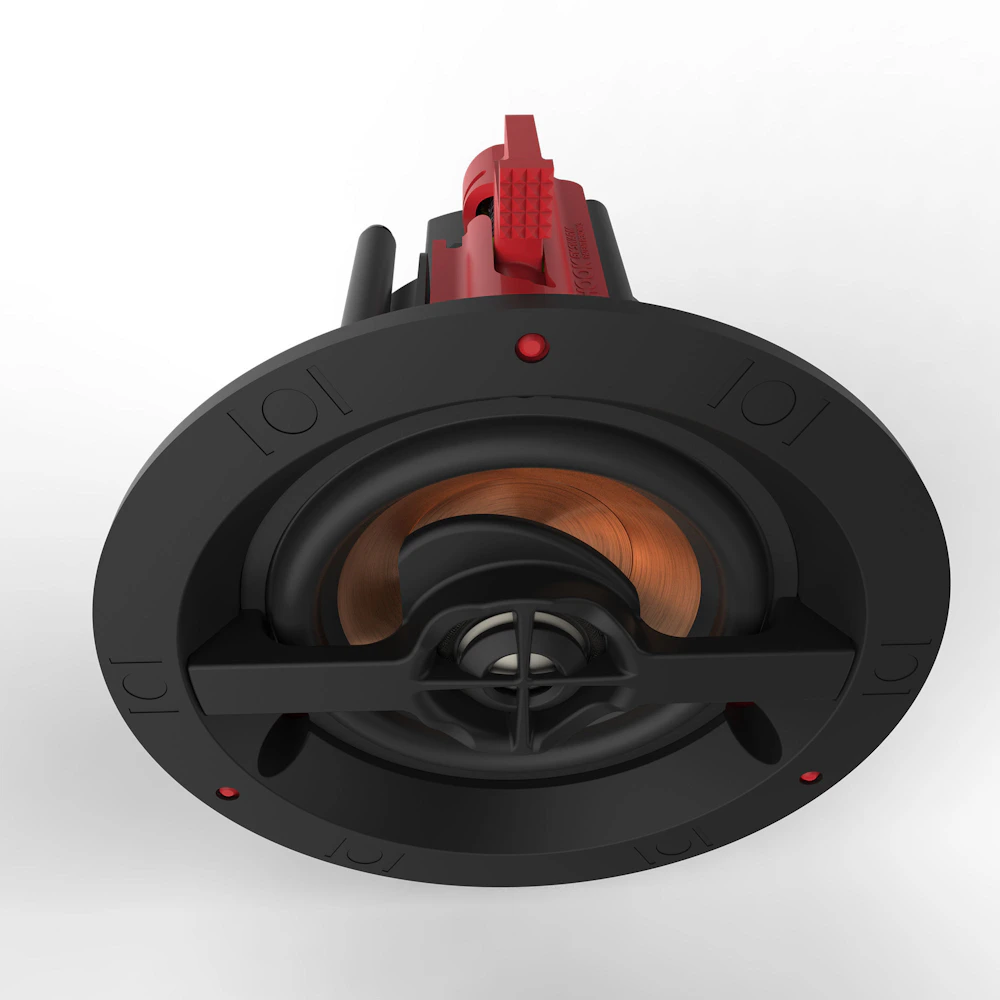

PRO-14RC angled

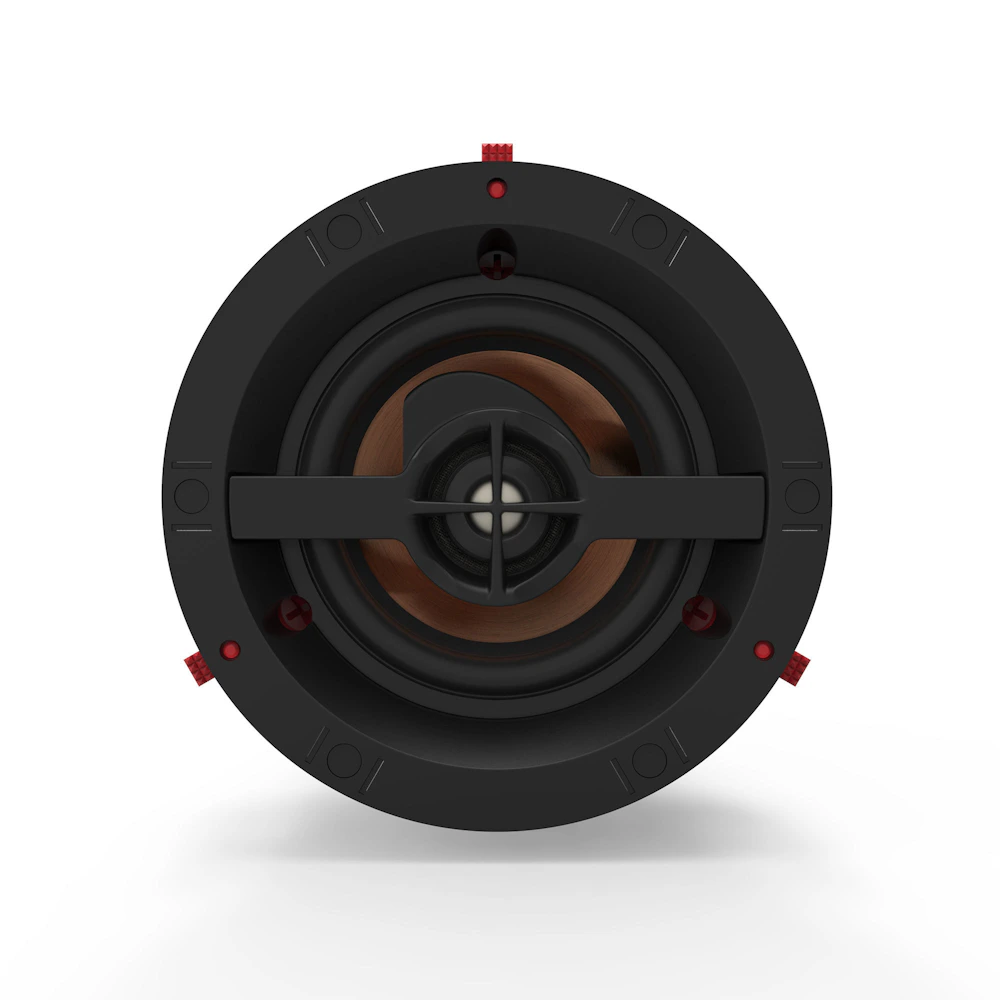

PRO-14RC front
PRO-14RC top
PRO-14RC top

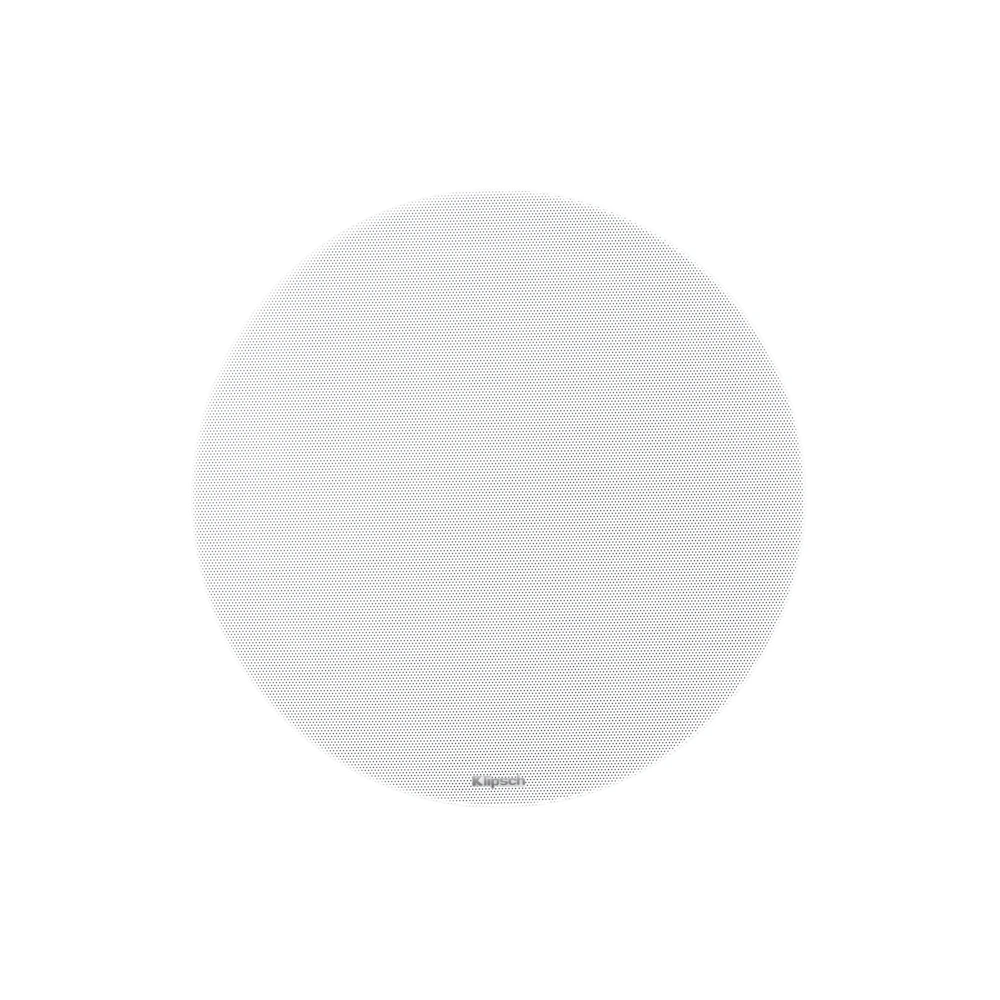

Round Grille

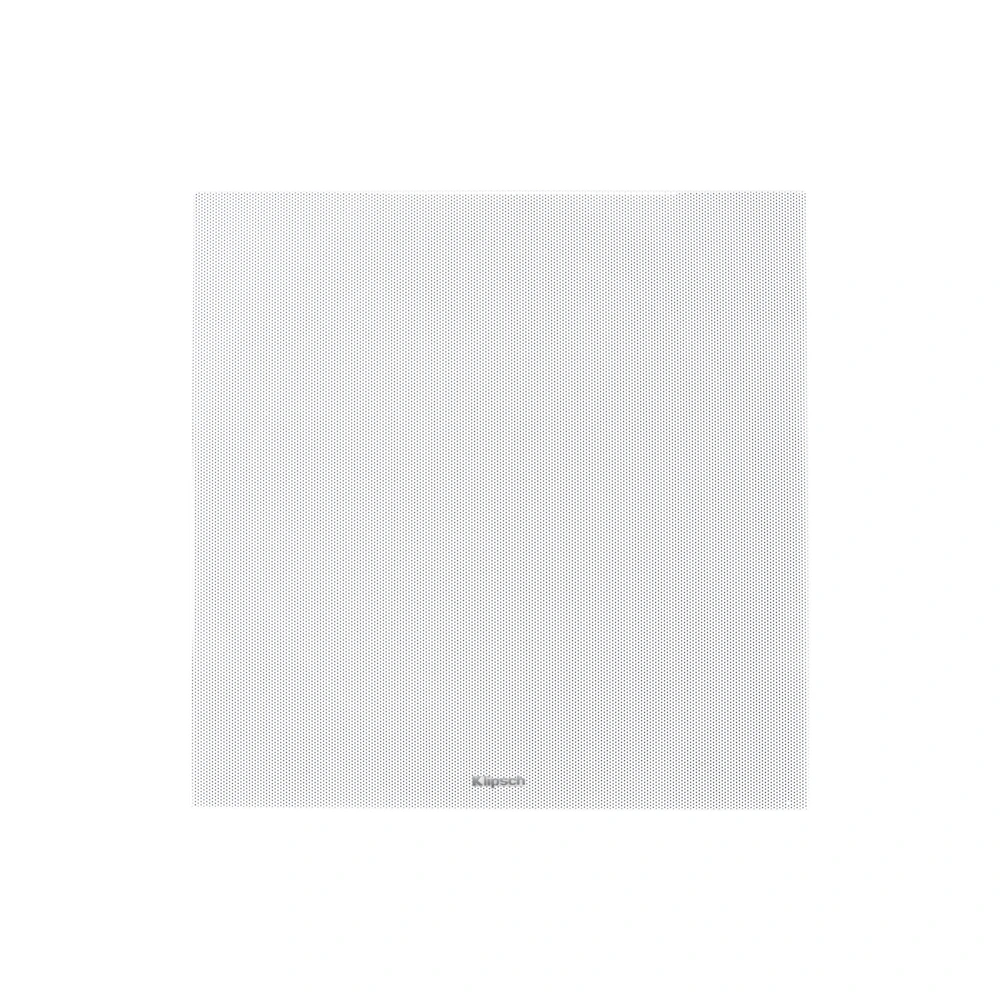

Square Grille

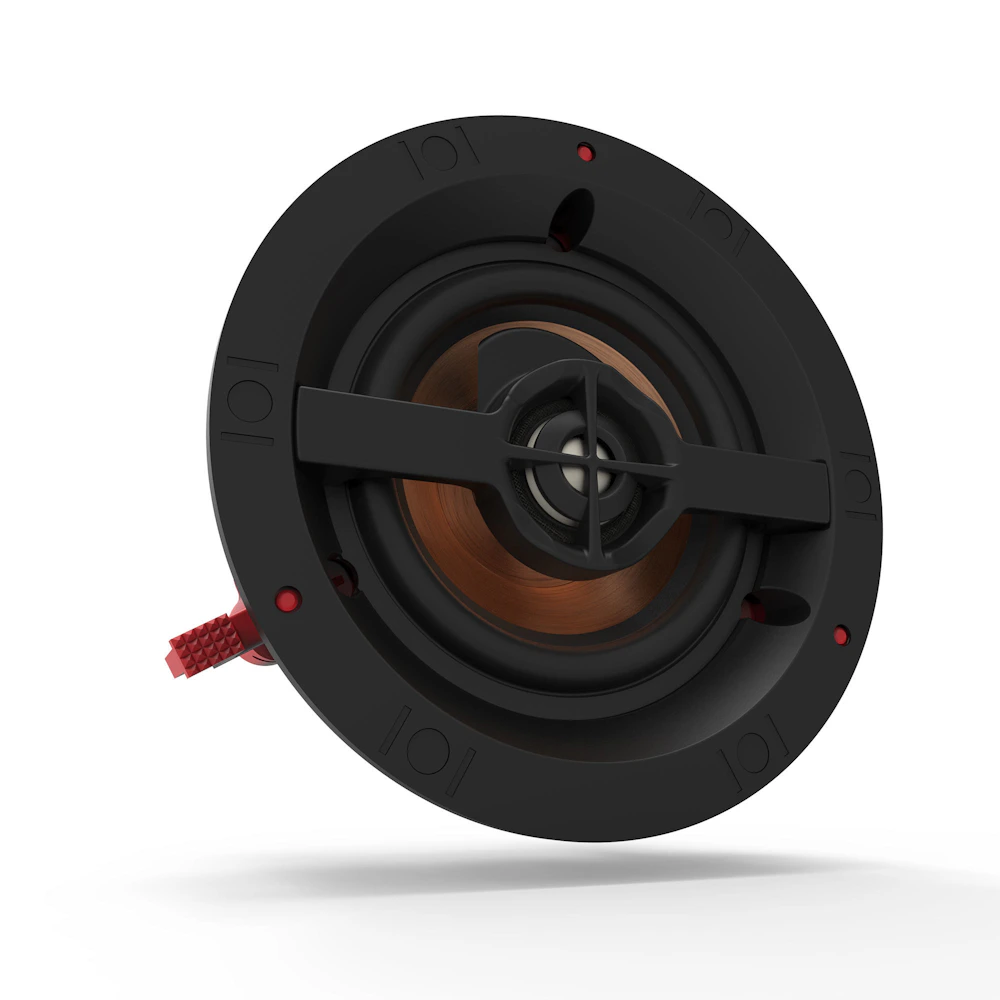

PRO-14RC

(# 1064450) Product Support »

Utilizing a custom-designed tweeter bridge with “shark fin” and asymmetric dimples to diffuse standing waves, the PRO-14RC provides crisp and clear audio over a wider range from only a 4.9” overall grille footprint. The Sky Hook® patented Cinch by Swarm Installation System provides incredibly fast and secure installations saving both time and money. With both round and square flat magnetic grilles included in the box, the new PRO-14RC minimal footprint in-ceiling speaker provides installers the ideal distributed audio solution that even interior designers will love.

Features:

  • 3.5" Injection Molded Graphite (IMG) Woofer
  • 1” Fixed Aluminum Dome FEA Optimized Tweeter
  • Exclusive, modular Patented Sky Hook® Cinch by Swarm
  • Bezel-Free square and round paintable magnetic grilles
  • Magnetic paint shield
  • Minimal footprint

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Frequency Range92Hz - 23kHz +/- 3dB
High Frequency Driver1” Fixed Aluminum Dome FEA Optimize Tweeter
Low Frequency Driver3.5" (8.89cm) IMG Woofer
Sensitivity88 dB @ 2.83V / 1m
Coverage Angle110°
Power Handling30W RMS / 120W Peak
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions4.86” W x 4.86” H x 4.5” D (12.3cm H x 12.3cm W x 11.3cm D)
Mounting Depth4.34” (11.03cm)
Cutout Dimensions4.25” (10.8cm)
Product Weight4 lbs (1.8kg)
IncludedRound Grille, Square Grille, Paint Shield
Installation KitIK-400-C (Sold Separately)
Built From2017

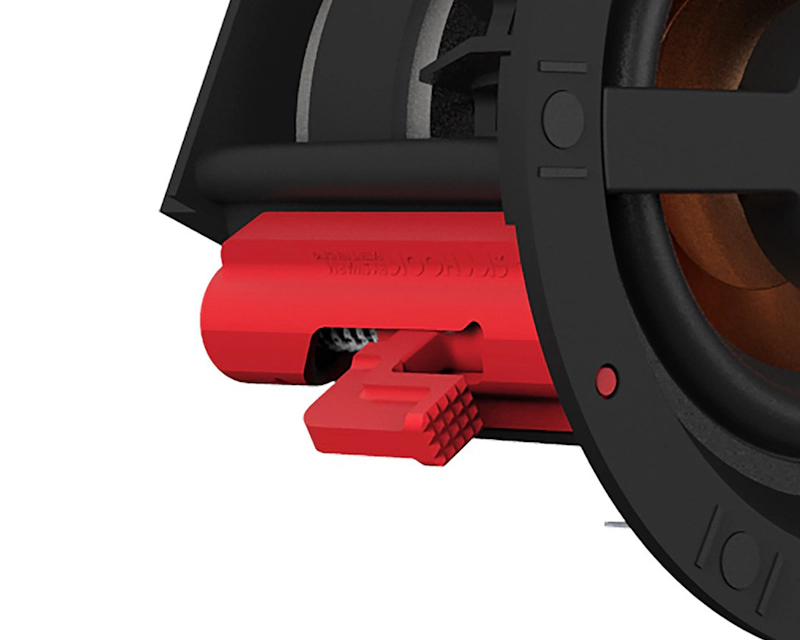

Skyhook Pro 14 Rc

PATENTED SKY HOOK® TOOL-FREE INSTALLATION SYSTEM

The exclusive, patented Sky Hook™ Cinch by Swarm technology combines great sound with lightning-fast installation. Automatically engaging the dog legs when the Klipsch speaker is inserted into the cutout hole, the preset clamping force eliminates the possibility of over-torquing during installation. This tool-free, fast, easy installation system reduces install time by up to 75% and provides solid, reliable installation with premium sound. Available for the Klipsch Professional Series Minimal Footprint, Designer and Custom series speakers. Watch the video below for more details.

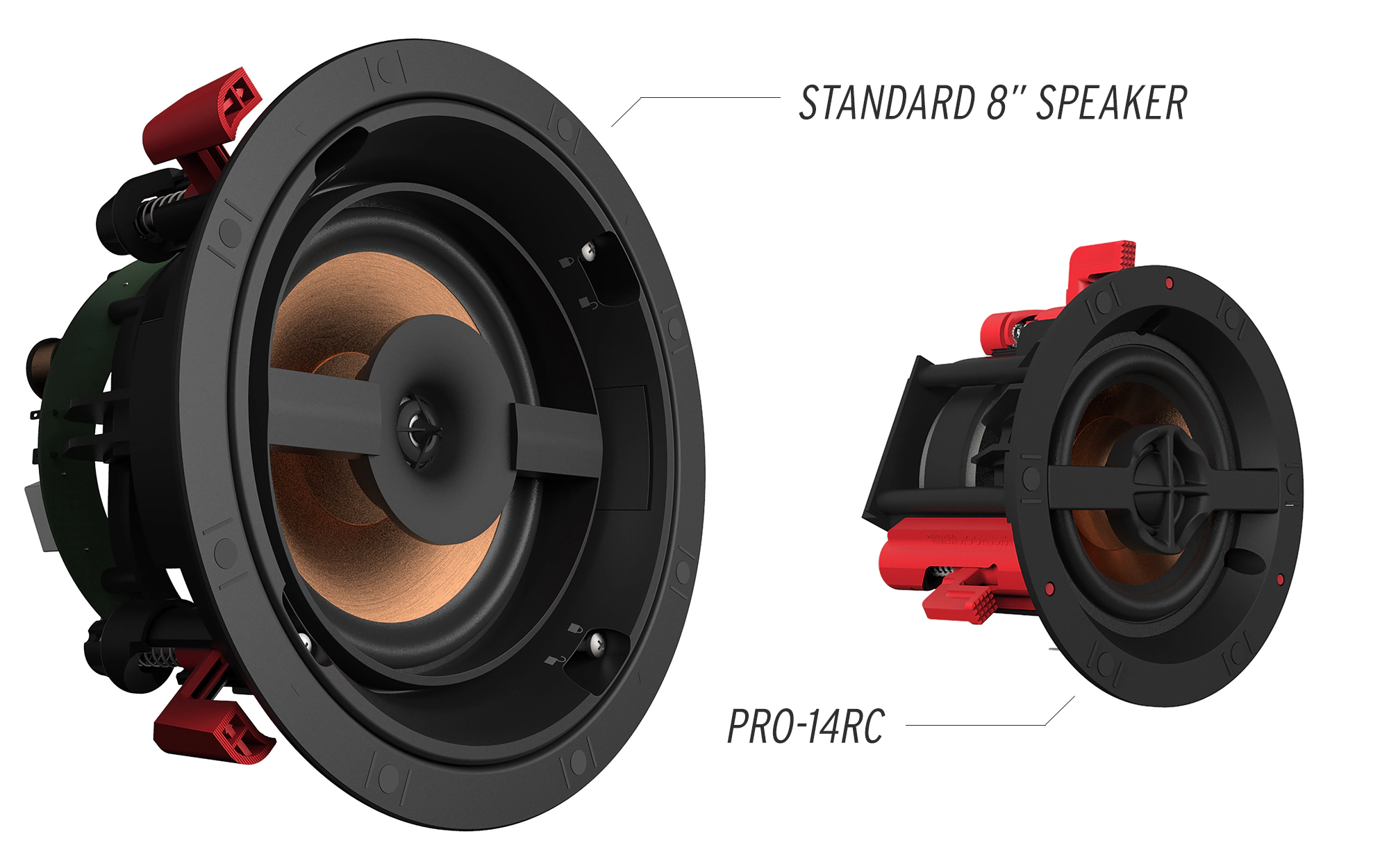

8 Inch Vs Pro 14 C

THE DIFFERENCE IS CLEAR

Compared to a standard 8" in-ceiling speakers, the PRO-14RC minimal-footprint in-ceiling speakers allows for maximum installation flexibility while being able to deliver the incredible acoustic signature that only Klipsch can deliver.

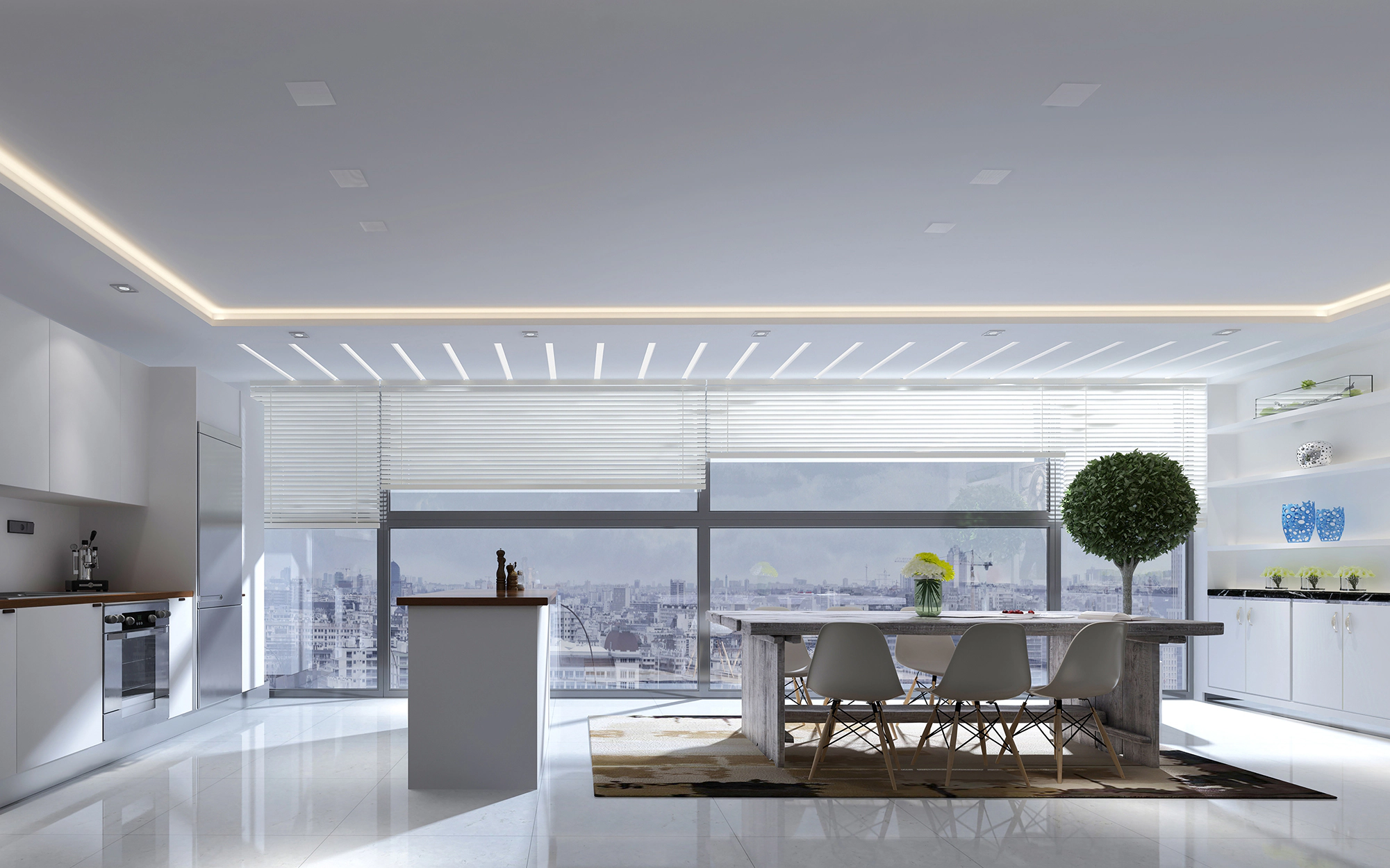

Kitchen Custom Installation

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Minimal Footprint

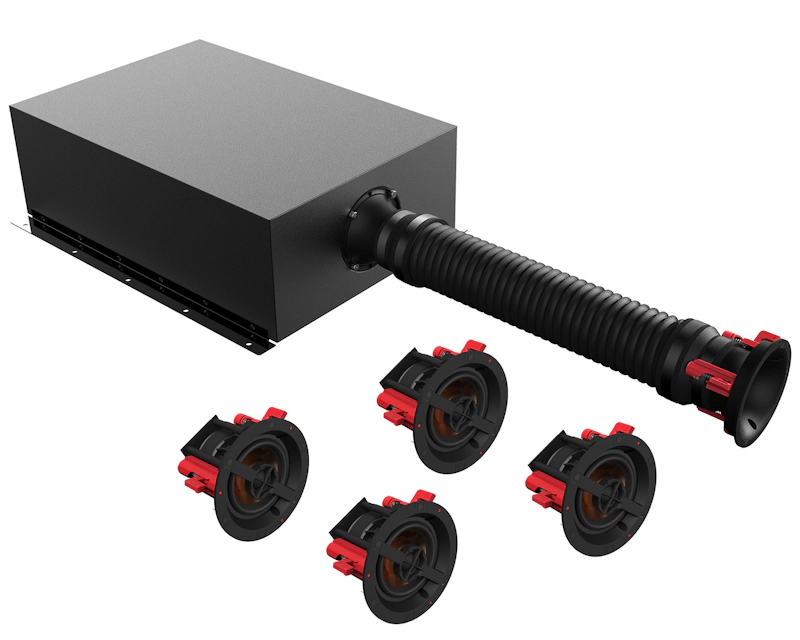

MINIMAL FOOTPRINT SYSTEM

The PRO-14RC in-ceiling speakers pair perfectly with our PRO-800SW subwoofer - both requiring only a 4.9" overall grille footprint to deliver a non-invasive, incredibly minimal custom audio solution.

SEE PRO-800SW

Paint Shield 2

PVC PAINT SHIELD INCLUDED

Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.

Square Round Grilles

SQUARE OR ROUND GRILLES

For whatever the installation demands, the PRO-14RC in-ceiling speakers come complete with both square and round grilles to match your desired aesthetic.
