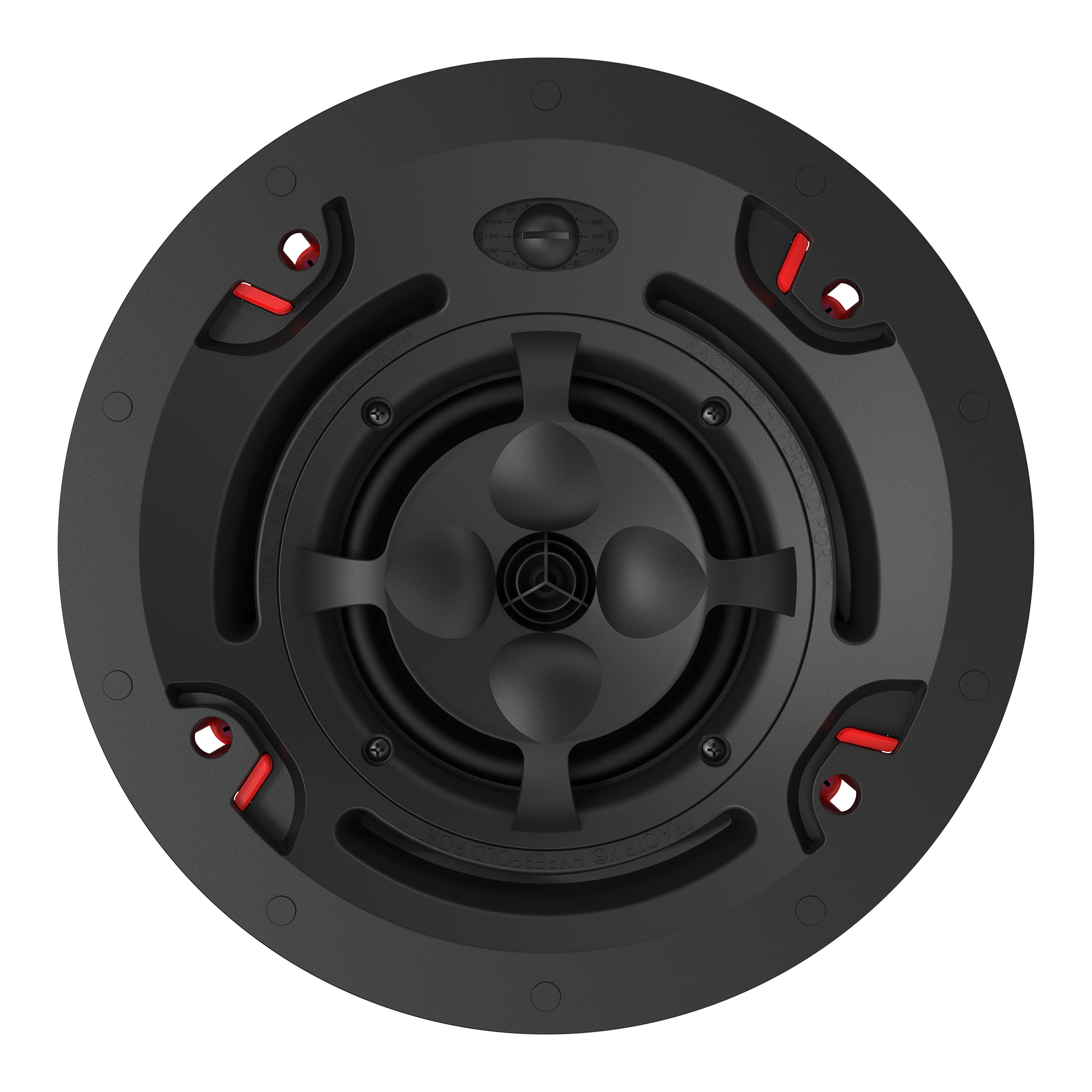

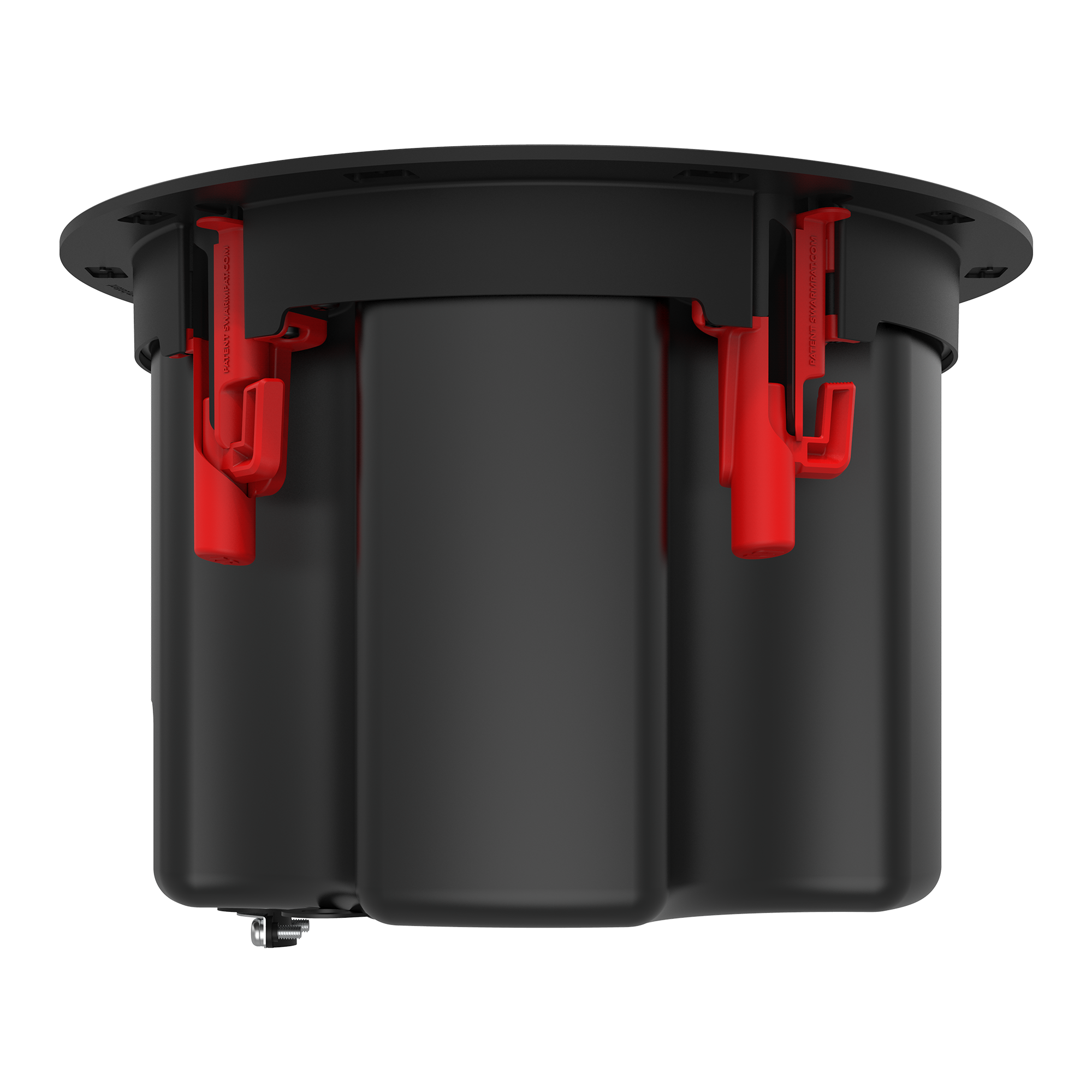

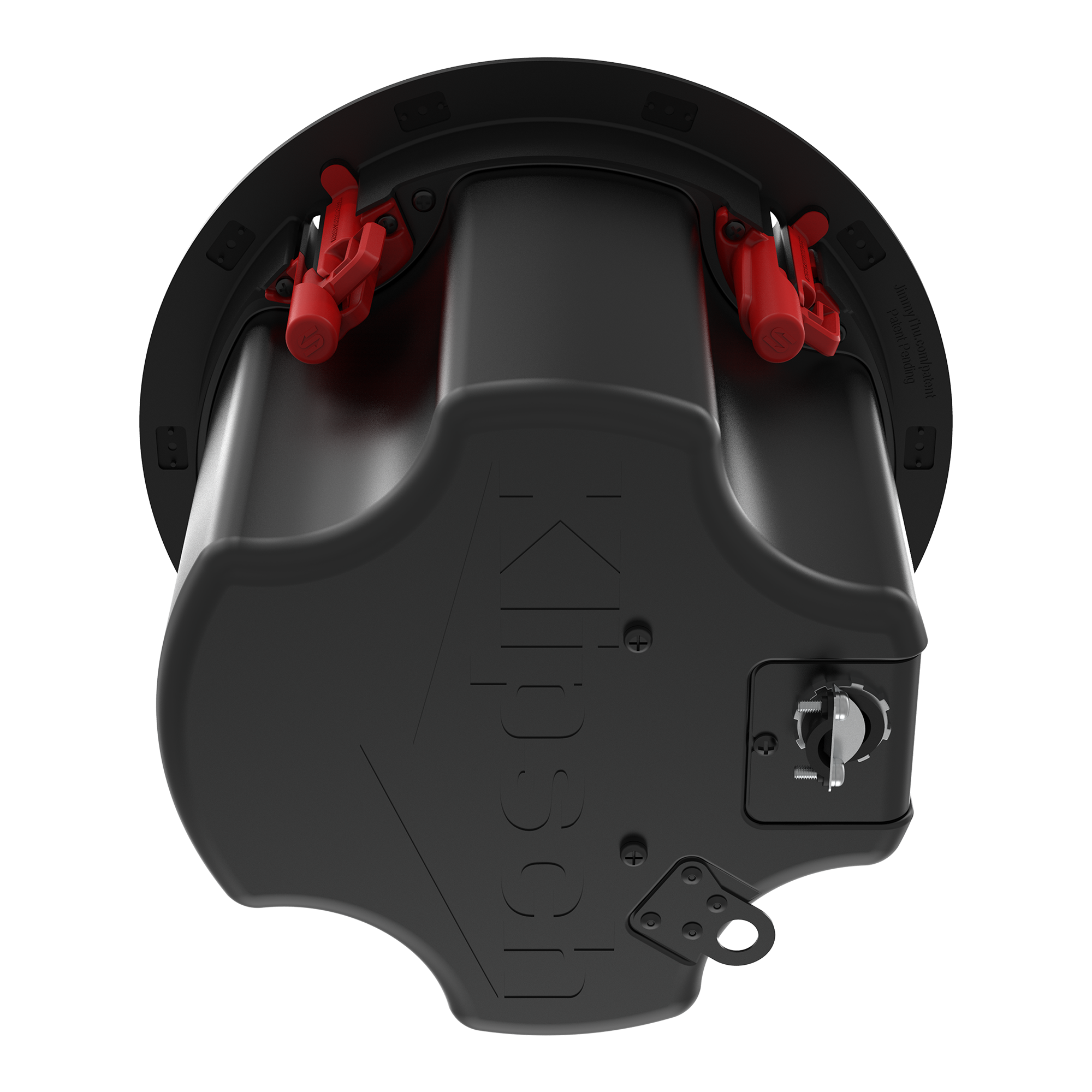

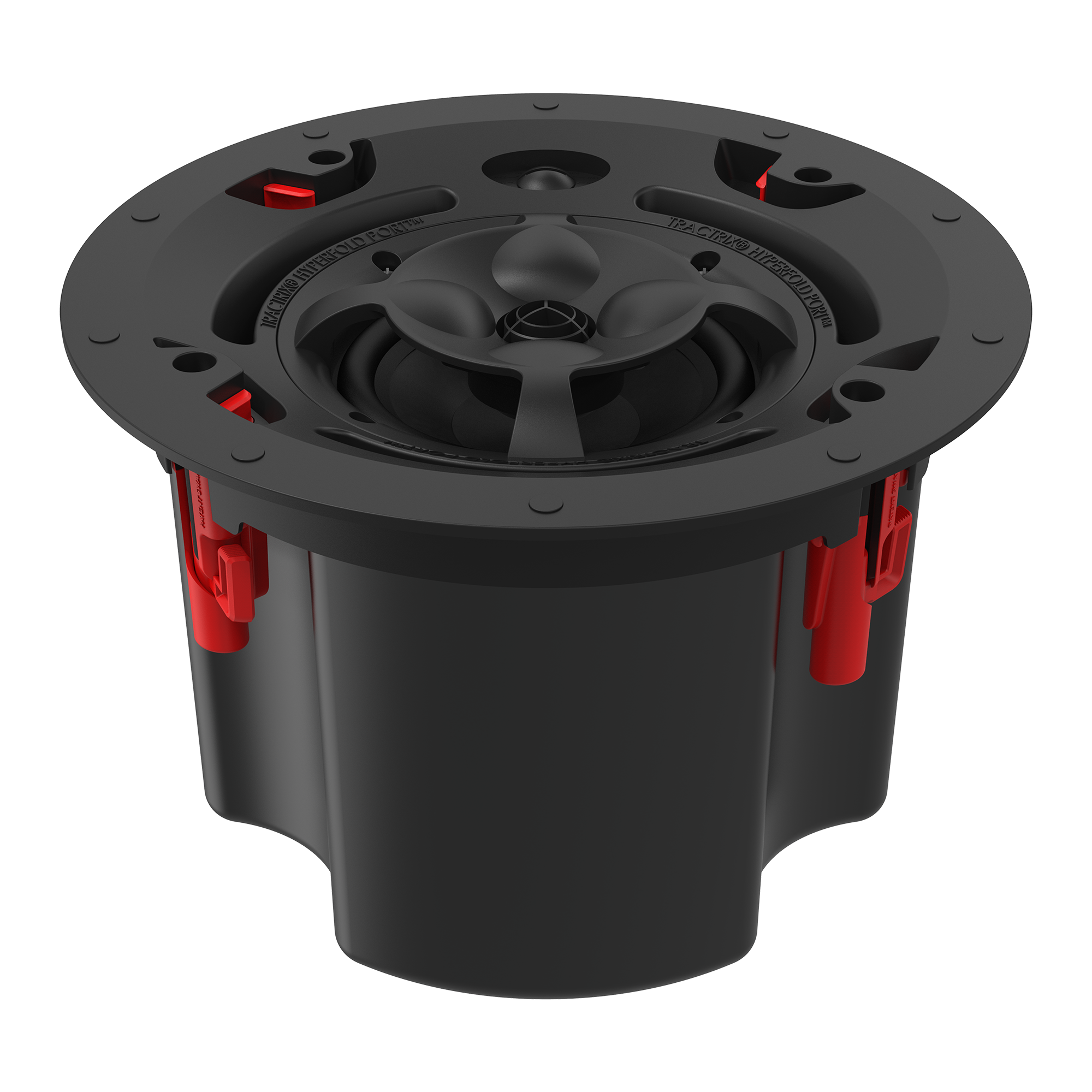

PIC-525-T
5.25" PROFESSIONAL IN-CEILING SPEAKER
Features:
- All-New Tractrix® Hyperfold™ Port
- 1” Titanium compression driver
- Exclusive patented Sky Hook® Pro System
- Phoenix connector
- IPX5 Rated

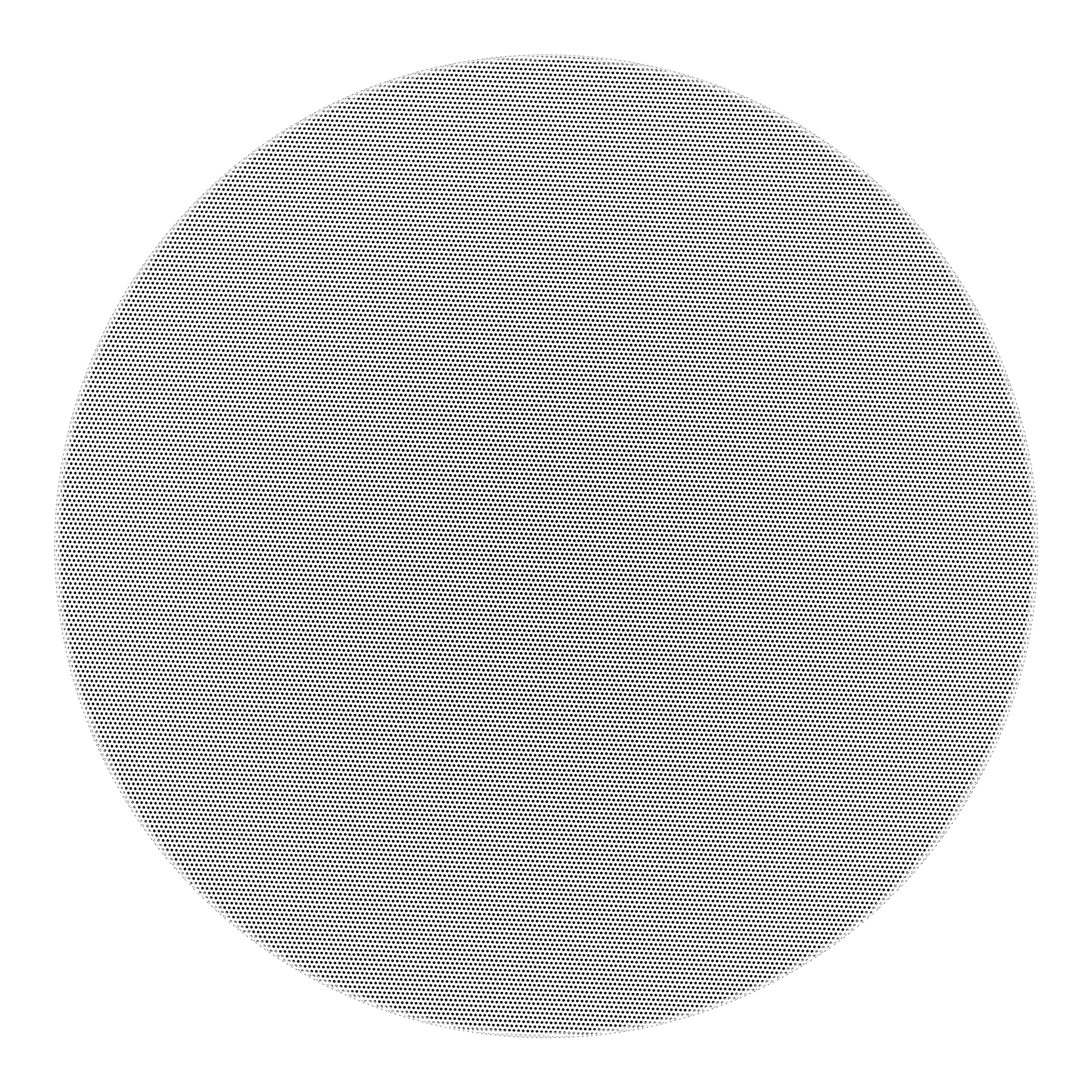

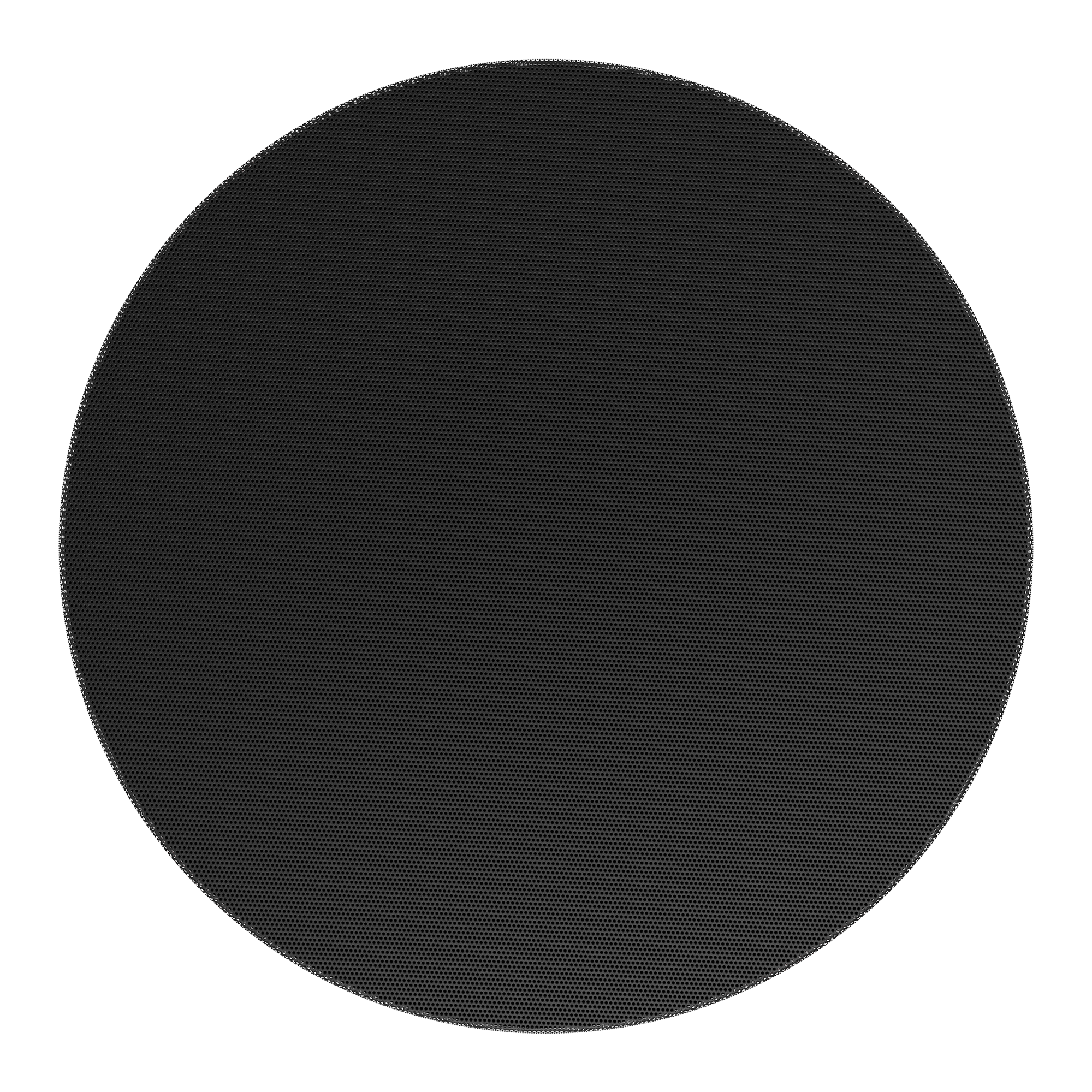

- Paintable black and white grilles included
Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.
Specifications
Key Product Specifications
| FREQUENCY RESPONSE | 62Hz-20kHz +/- 4dB, 52Hz -10dB |
| POWER HANDLING | 65 watts (16.7V) 55Hz-10kHz (260 watts peak) |
| CALC. MAX. CONT. OUTPUT | 104dB |
| SENSITIVITY | 89dB |
| COVERAGE | 100° +/- 20° 1kHz-20kHz |
| DIRECTIVITY INDEX | 7dB +/- 1.5dB 1kHz-20kHz |
| NOMINAL IMPEDANCE | 8 ohms 4.3 ohms at 175Hz minimum |
| ACOUSTIC CROSSOVER | 2kHz |
| TRANSDUCERS | 5.25” woofer and 1” titanium compression driver, on a K-1200M Tractrix horn/tweeter bridge |
| ENCLOSURE MATERIAL | All Weather Abs Plastic, Paintable; Metal Can |
| ENCLOSURE TUNING | Vented via 3 folded TRACTRIX ports |
| INPUT CONNECTORS | 4 pin euro block |
| TRANSFORMER TAPS | 70V: 30W, 15W, 7.5W, 3.8W and 100V: 30W, 7.5W, 3.8W and Bypass position: 8 ohms nominal |
| CUTOUT DIMENSION | 9.125" |
| MOUNTING DEPTH | 7.313" |
| OVERALL DEPTH | 7.438" |
| OVERALL WIDTH | 10.625" |
| THRU HOLE WIDTH | 8.875" |
| WEIGHT | 9 lbs |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
Klipsch PIC-525-T Spec Sheet
.
Product Manual
Download the Product Manual for PIC-525-T 5.25" PROFESSIONAL IN-CEILING SPEAKER here:
Klipsch PIC-525 LIT
.
