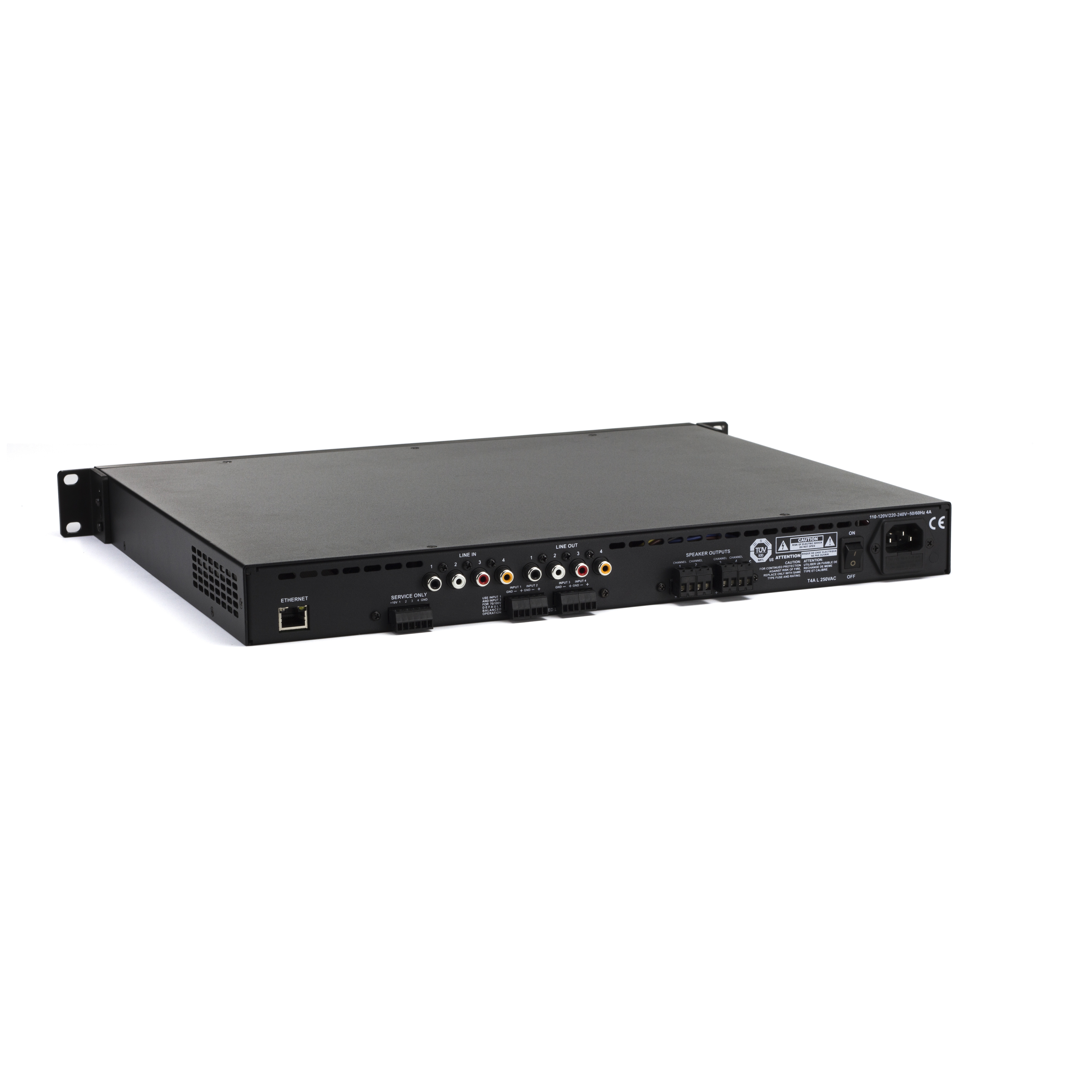

Kda 1000 Angle Back

KDA-1000 DSP Amplifier

(# 1063258) Product Support »

For outdoor systems requiring more output, the Klipsch KDA-1000 DSP Amplifier powers larger arrangements to deliver incredible performance from a 1000W, single-rack unit solution - all completely customizable through the web-based DSP menu.

Features:

  • 1000W Total System Power (4 x 250W)
  • High performance power platform
  • 70V / 100V / Low Impedance Compatibility
  • Flexible I/O
  • State-of-the-art DSP control and set-up

Firmware updates available. Please see our Firmware Updates & Drivers section.

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Part Number120V: 1063258 230V: 1063261
Amplifier TypeHigh Efficiency Class G/H
Amplifier Power1000W Total System Power 4 x 250W Per Channel
InputsBalanced: 4 x Phoenix Line Level (up to 12 AWG wire) Unbalanced: 4 x RCA Line Level
Outputs4 x Phoenix Speaker Level (up to 12 AWG wire) 4 x RCA Line Level (Throughs)
Input Sensitivity750mV Balanced, 0dBU
Input ImpedanceBalanced 40k
THD<1% @ Rated Output
Signal-To-Noise-100dB Below Rated Output
Enclosure TypeFront Face: ABS Plastic Case: Machine Formed Steel
Rack Unit1RU
Product Dimensions1.73” x 19.02” x 14.29” (44mm x 483mm x 363mm)
Product Weight15 lbs (6.82 kg)
Mount TypeRemovable 1RU Rack Ears, Removable Rubber Feet
Built From2016
