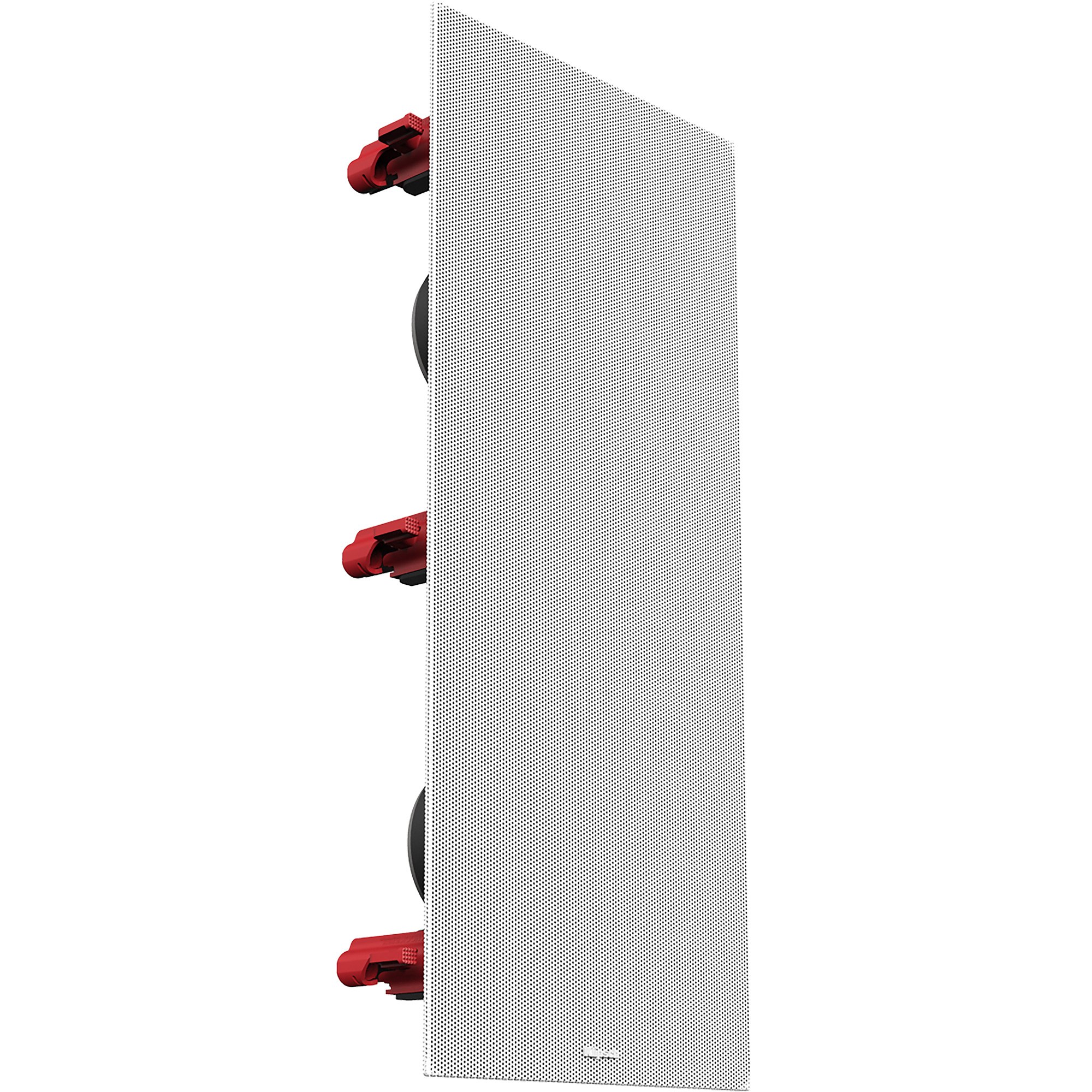

DS-250W angled half grille
DS-250W angled full grille
DS-250W angled no grille

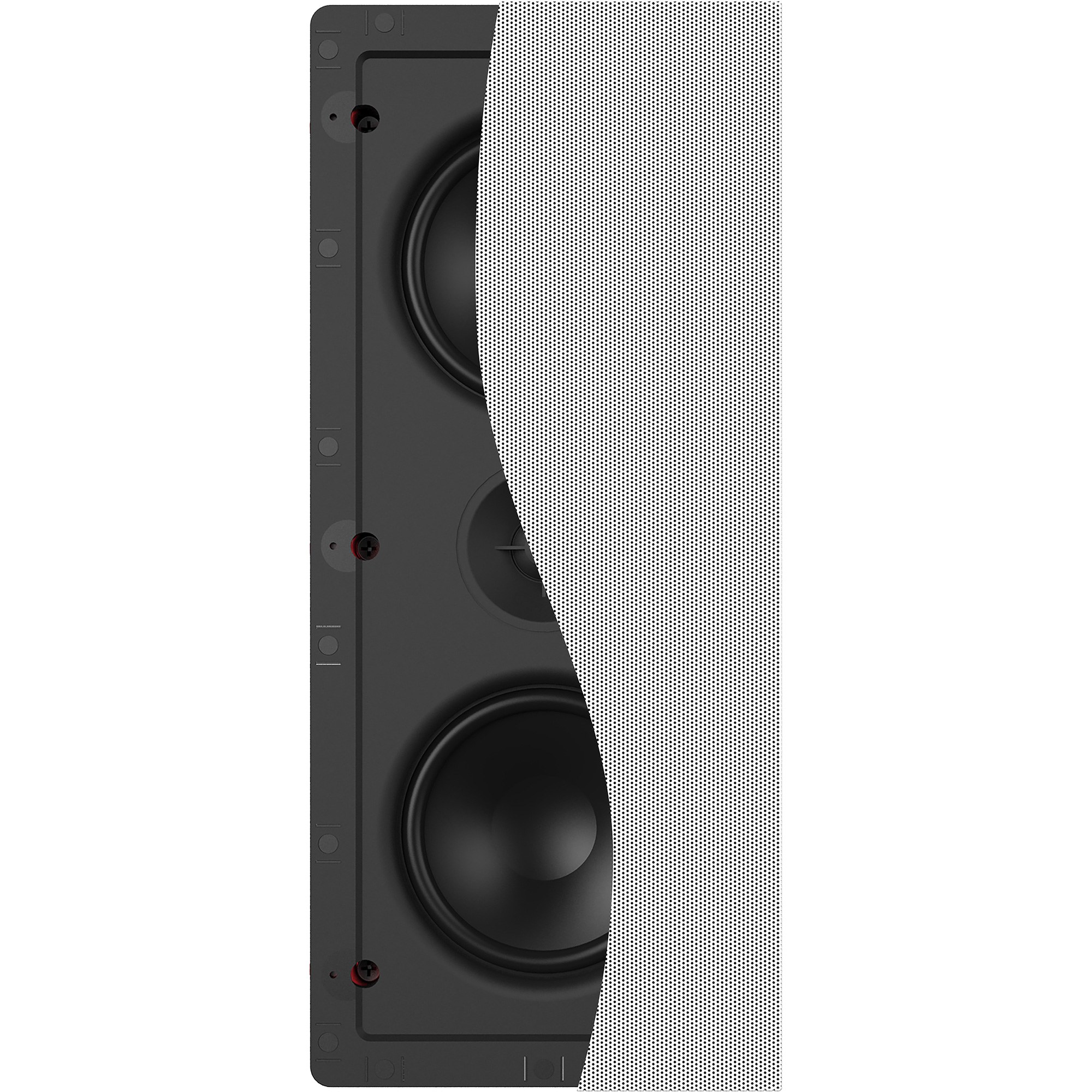

DS-250W front half grille

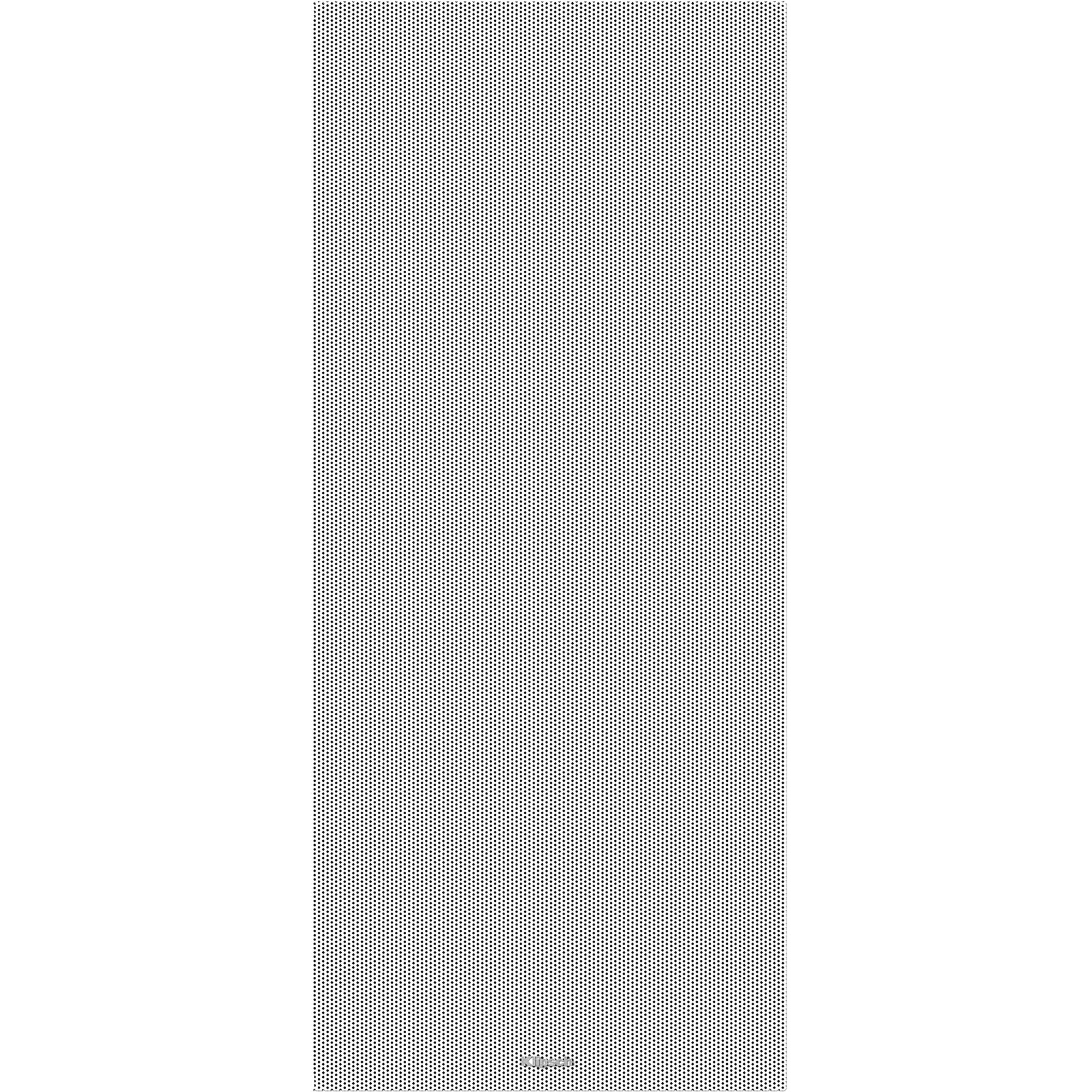

DS-250W front full grille

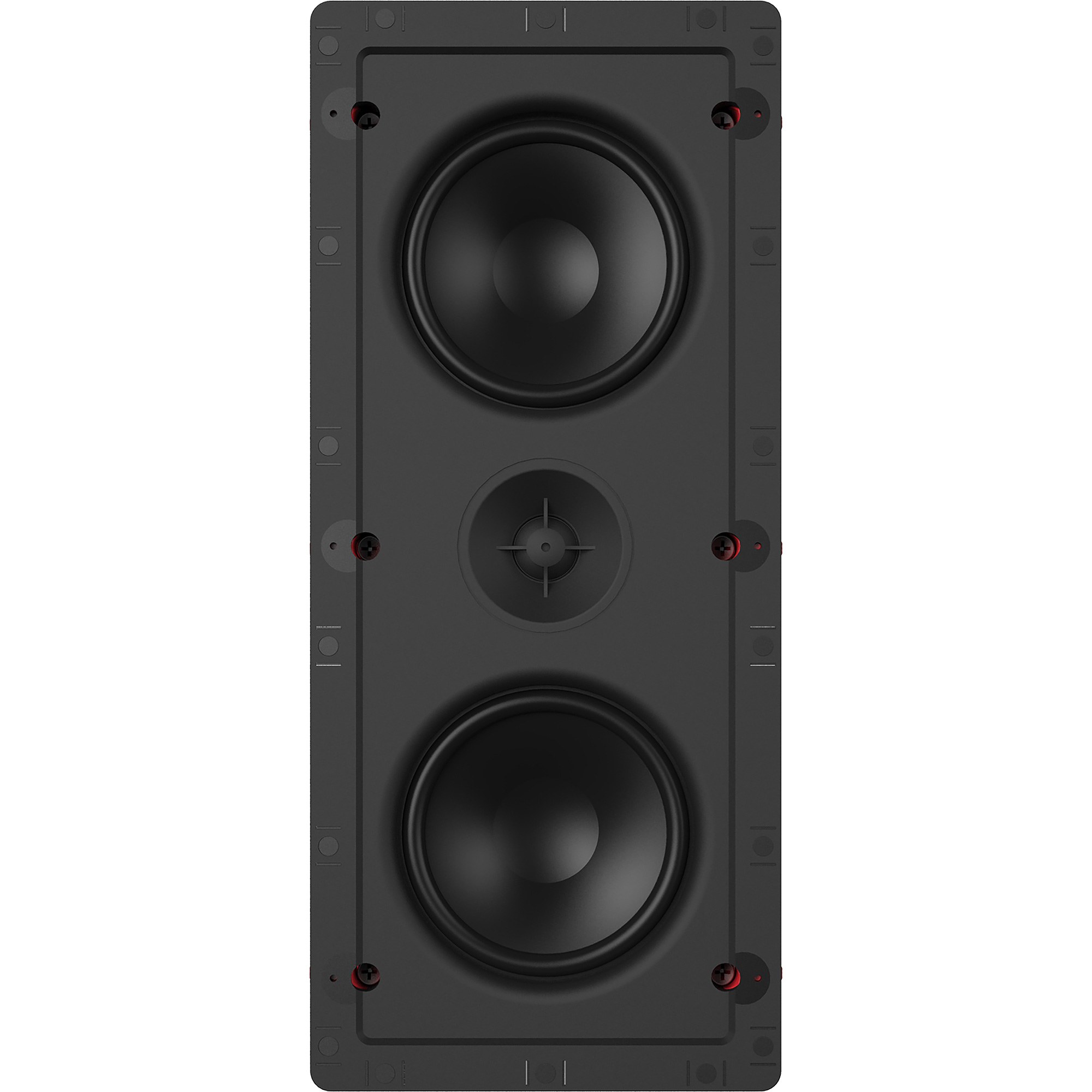

DS-250W front no grille

DS-250W LCR

(# 1064164) Product Support »

With the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-250W LCR features dual 5.25” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Features:

  • Dual 5.25” Polypropylene woofer
  • 1” Silk Dome tweeter
  • Patented Sky Hook® Tool-Free Installation System
  • Bezel-Free Magnetic Grille

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Frequency Range73Hz - 20kHz +/- 3dB
High Frequency Driver1" (2.54cm) Silk Dome Tweeter mated to a 90°x90° Tractrix® Horn
Low Frequency DriverDual 5.25" (13.34cm) Polypropylene Woofers
Sensitivity92 dB @ 2.83V / 1m
Coverage Angle100°
Power Handling60W RMS / 240W Peak
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions7.5” W x 17.4” H x 3.8” D (19.1cm H x 44.2cm W x 9.6cm D)
Mounting Depth3.78” (9.35cm)
Cutout Dimensions16.5” H X 6.5” W (41.9cm H X 16.5cm W)
Product Weight6.5lbs (2.95kg)
IncludedFlat Magnetic Grille
Installation KitIK-502-W II (Sold Separately)
Built From2017
