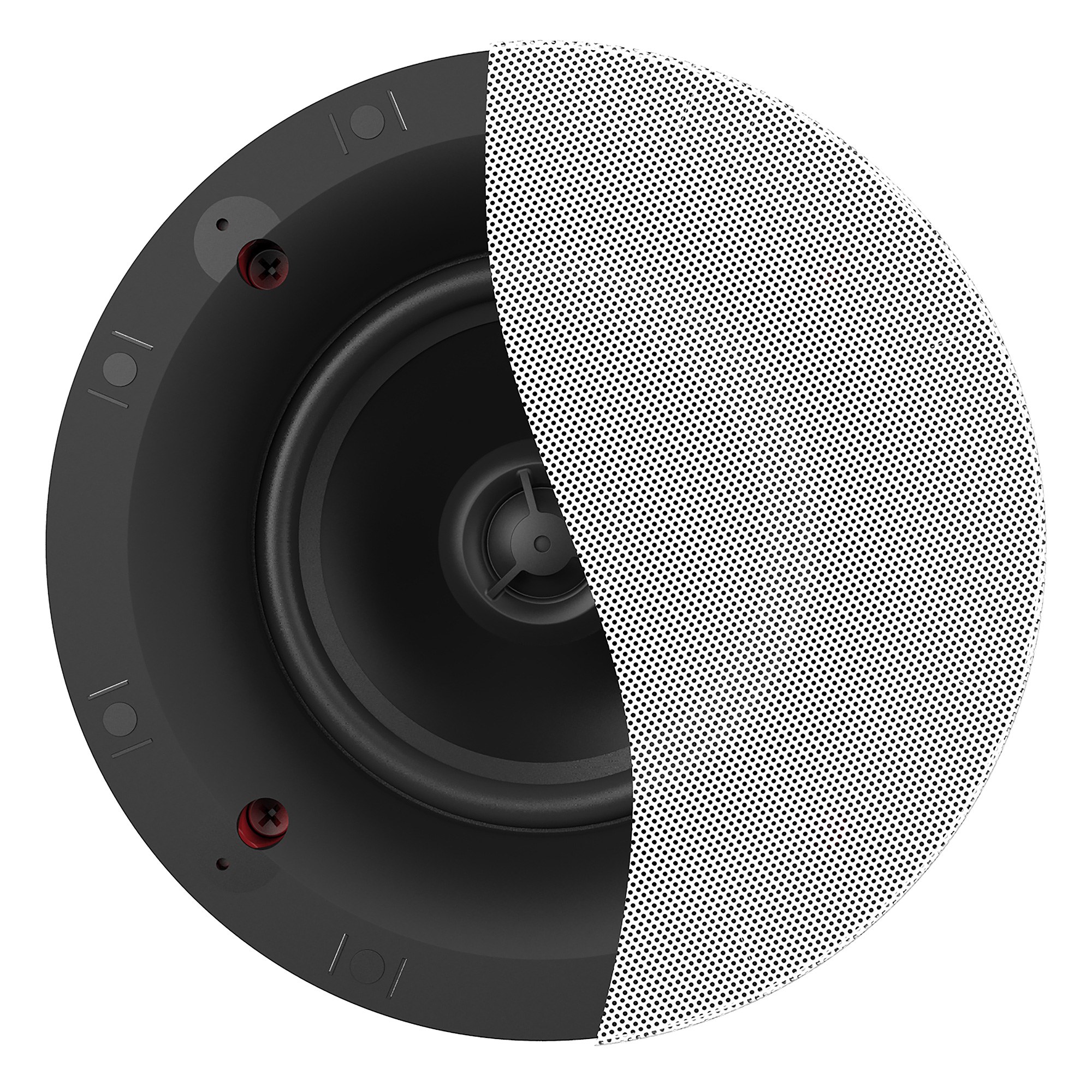

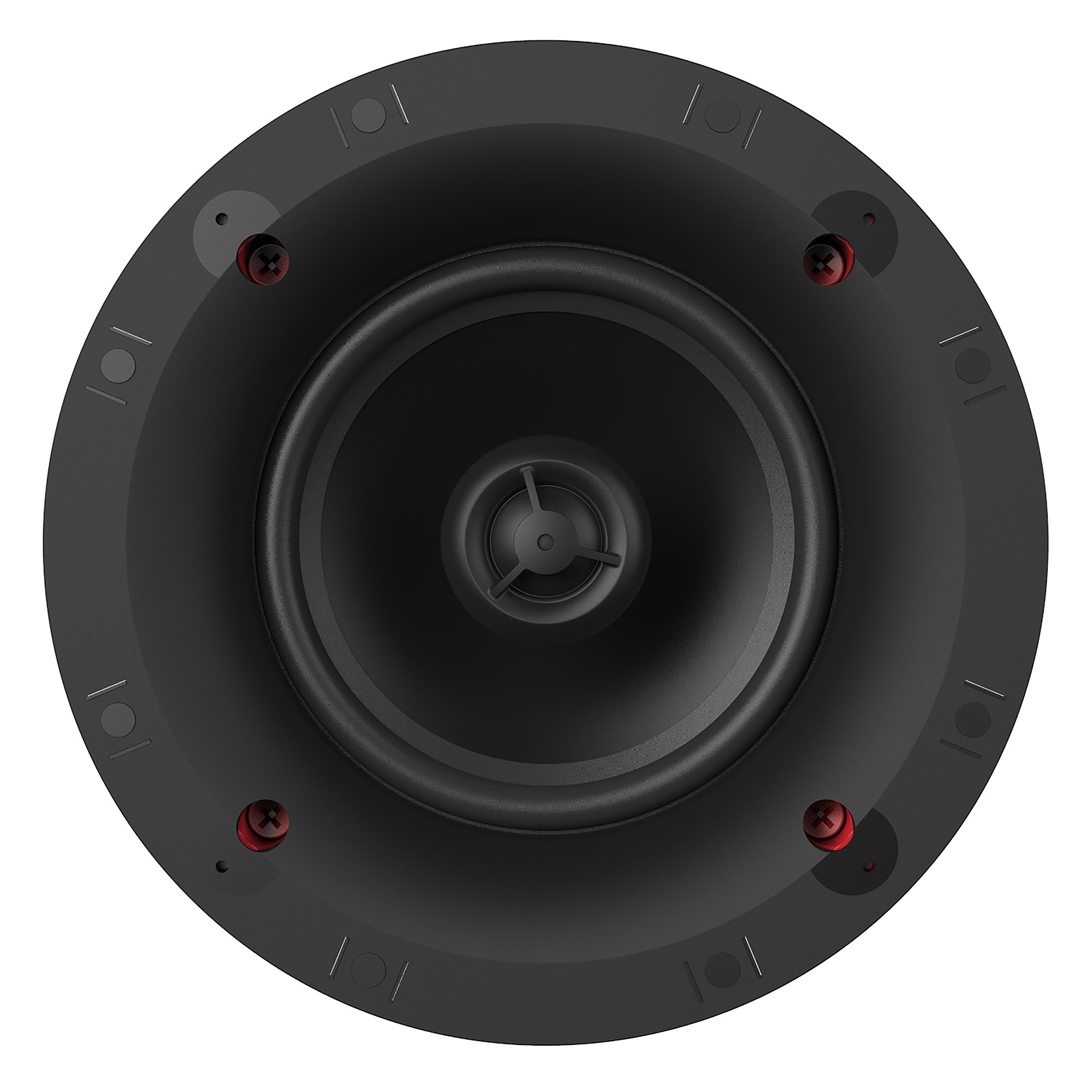

DS-160C

Offering the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-160C features a 6.5” Polypropylene woofer and a 1” Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.

Features:

  • 6.5” Polypropylene woofer
  • 1” Silk Dome tweeter
  • Patented Sky Hook® Tool-Free Installation System
  • Bezel-Free Magnetic Grille

Select your location and we'll connect you to the premium custom installer in your area.

Representative(s) for State:

Specifications

Frequency Range77Hz - 20kHz +/- 3dB
High Frequency Driver1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver6.5” (16.51cm) Polypropylene Woofer
Sensitivity91 dB @ 2.83V / 1m
Coverage Angle100°
Power Handling50W RMS / 200W RMS
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D)
Mounting Depth4.34” (11.03cm)
Cutout Dimensions8.3” (21.1cm)
Product Weight7 lbs (3.18kg)
IncludedFlat Paintable Magnetic Grille
Installation KitIK-650-C II (Sold Separately)
Fire Rated EnclosureME-650-C (Sold Separately)
Built From2017
Ds Sky Hook

SKY HOOK® TOOL-FREE INSTALLATION SYSTEM

The exclusive, patented Cinch by Swarm Installation System engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of over-torquing. This fast, easy installation system reduces install time by up to 75%.

Ds Grille

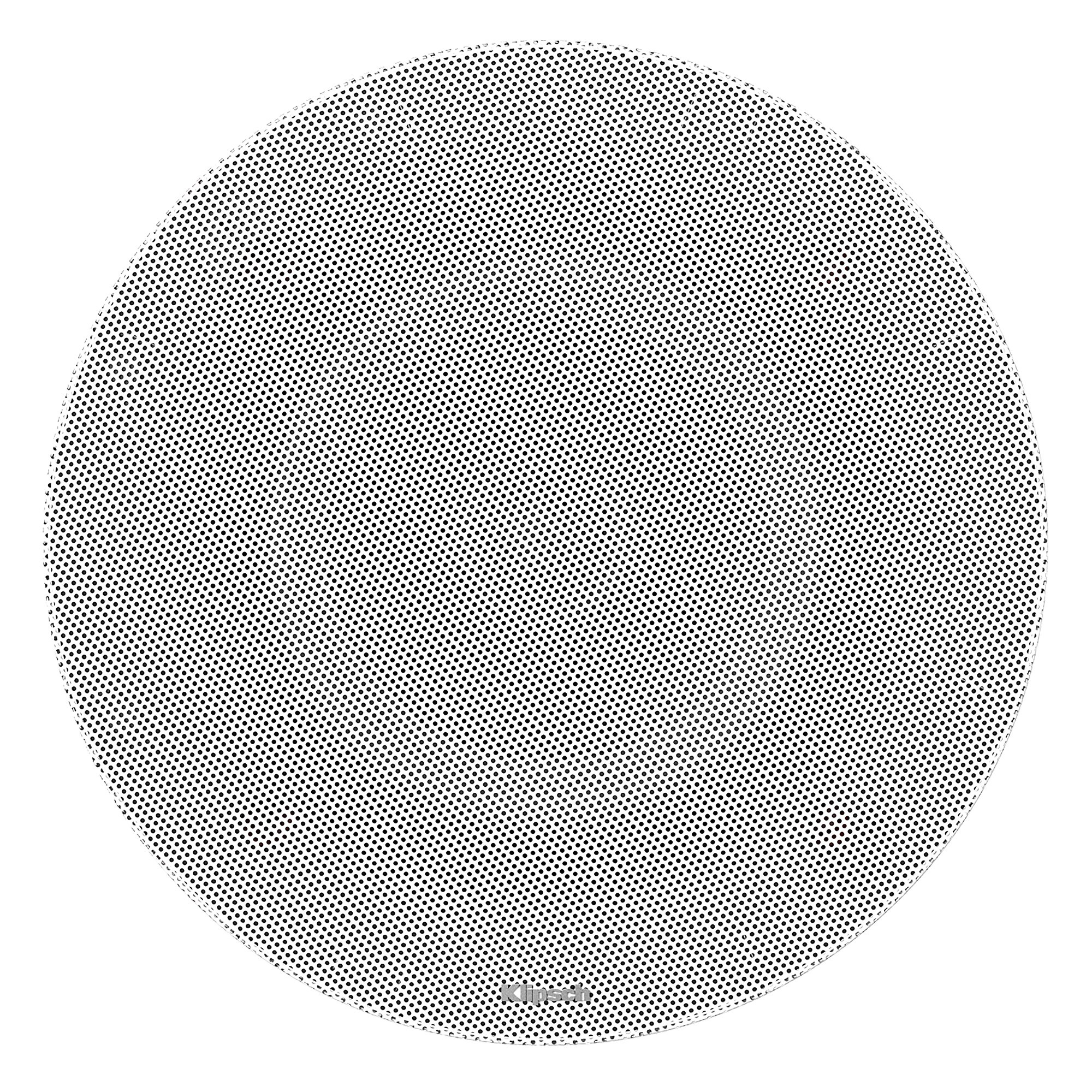

ALL NEW, BEZEL-FREE MAGNETIC GRILLE

A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Ds Tweeter

HORN-LOADED PERFORMANCE

Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
