CS-16CSM
Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-16CSM features a 6.5” Polymer woofer and dual 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.
Features
Key Product Features
| 6.5” Polymer woofer |
| Dual 1” Polymer tweeter |

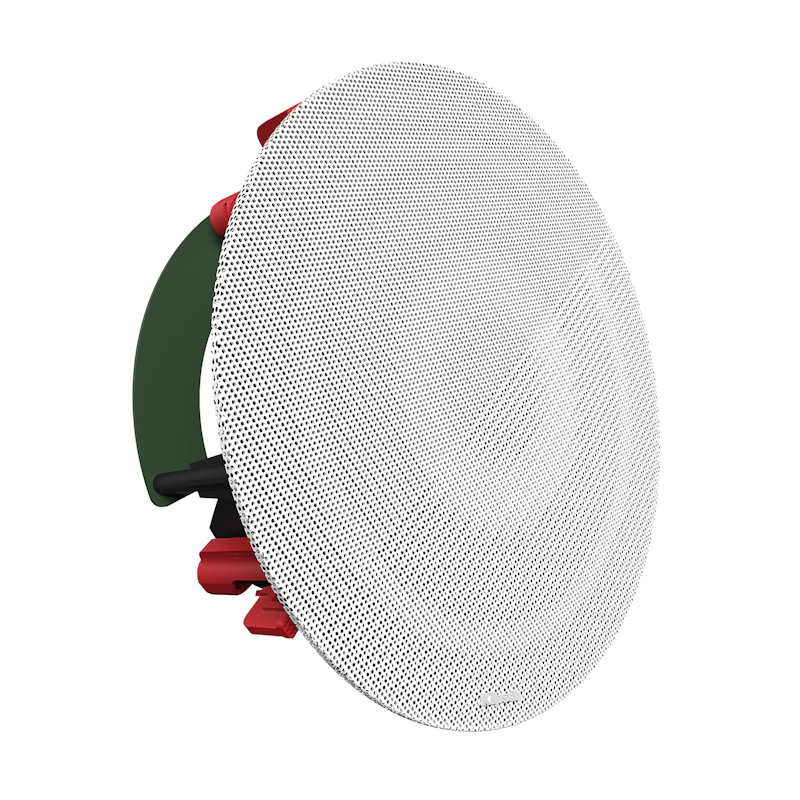

| Patented Sky Hook® Tool-Free Installation System |
| Bezel-Free Magnetic Grille |
Specifications
Key Product Specifications
| Frequency Range | 65Hz - 20kHz +/- 3dB |
| High Frequency Driver | Dual .75" (1.9cm) Polymer Dome Tweeters |
| Low Frequency Driver | 6.5” (16.51cm) Dual Voice Coil Polymer Woofer |
| Sensitivity | 91 dB @ 2.83V / 1m |
| Power Handling | 40W RMS / 160W Peak |
| Impedance | 8 Ohm Compatible |
| Enclosure Type | ABS/Infinite Baffle |
| Finish | Black Baffle/Frame, White Paintable Grille |
| Product Dimensions | 9.2” W x 9.2” H x 4.5” D (23.3cm H x 23.3cm W x 11.3cm D) |
| Mounting Depth | 4.34” (11.03cm) |
| Cutout Dimensions | 8.3” (21.1cm) |
| Product Weight | 7 lbs (3.18kg) |
| Included | Round Magnetic Grille |
| Installation Kit | IK-650-C II (Sold Separately) |
| Fire Rated Enclosure | ME-650-C (Sold Separately) |
| Built From | 2017 |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
CS-16CSM Spec Sheet
.
Product Manual
Download the Product Manual for CS-16CSM here:
Custom Series Manual
.
