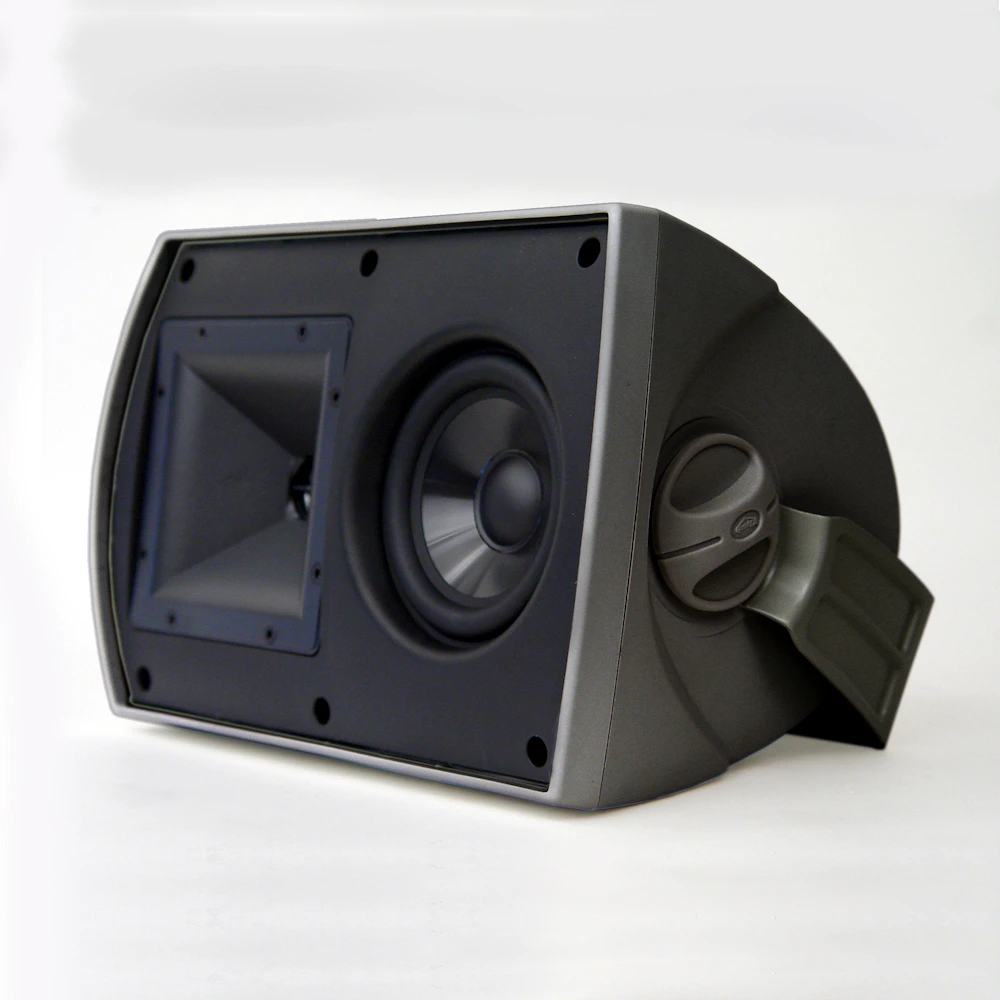

AW-525 Outdoor Speaker, black
AW-525 Outdoor Speaker
AW-525 Outdoor Speaker, rear view

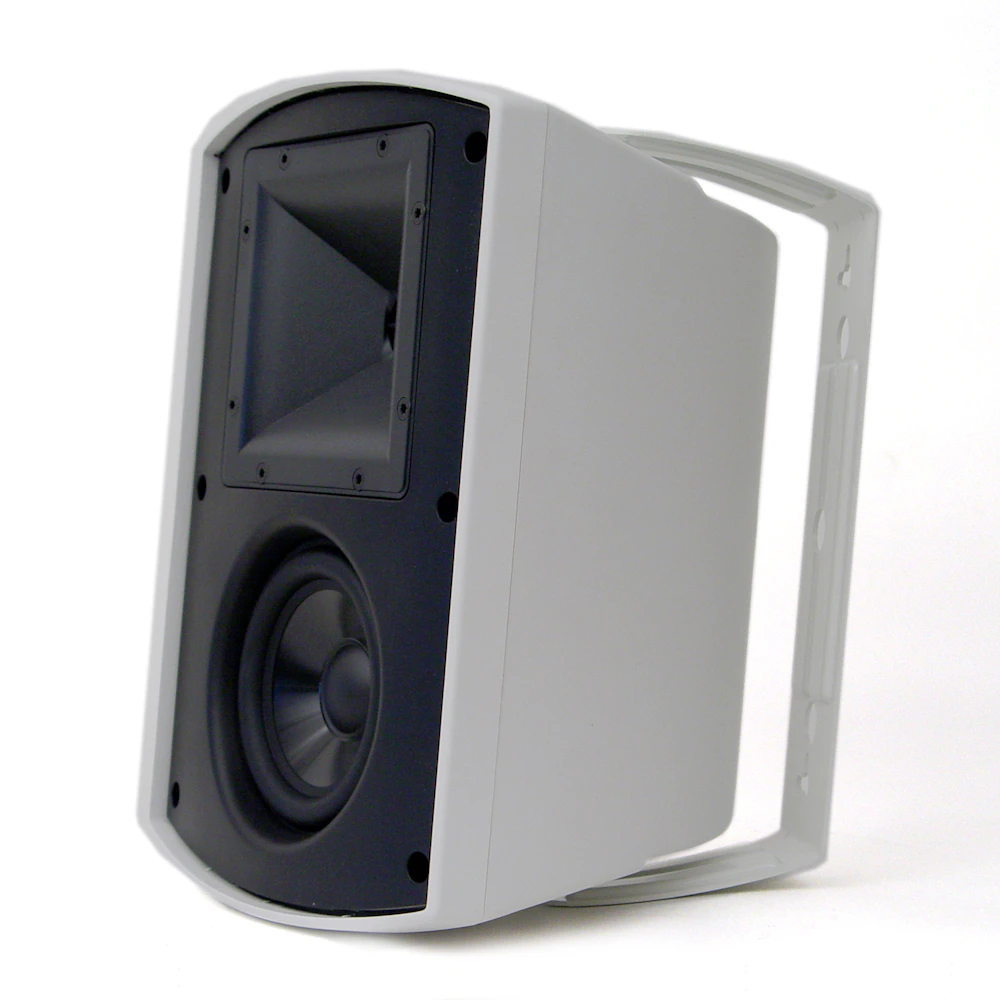

AW-525 Outdoor Speaker
AW-525 Outdoor Speaker
AW-525 Outdoor Speaker, no grille
AW-525 Outdoor Speaker, no grille
AW-525 Outdoor Speaker, no grille
AW-525 Outdoor Speaker, no grille
AW-525 Outdoor Speaker

AW-525 Outdoor Speaker - Custom

Black (# 1009313) Product Support »

The AW-525 all-weather loudspeaker brings clean clear dynamic Klipsch quality performances to patios, terraces, balconies, gardens, or poolside. And because it's so efficient you get much more sound per watt enabling this full-range model to work well in wide-open spaces.

Features:

  • Paintable UV-resistant ABS enclosure with rustproof aluminum grille</li><li>High sensitivity and power handling
  • 90º x 90º Tractrix® Horn tweeter for clean clear highs
  • Supplied with C-style mounting bracket and stainless steel hardware
  • 3/8"-16 threaded insert for optional mounts

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Frequency Response80Hz-20kHz ± 3dB
Sensitivity94dB @ 1 watt/1 meter
Nominal Impedance8 ohms
Crossover Frequency2450Hz
Power Handling75 watts (300 watts peak)
Enclosure TypeBass-reflex via dual front-firing ports/ABS
Drive ComponentsTwo-way system using one 1" (2.5cm) titanium dome tweeter with a 90˚x 90˚ Tractrix Horn and one 5.25" (13.3cm) IMG woofer
Wire Gauge Accommodated12
Weight6.5 lbs. (3kg)
Height11.8" (29.8cm)
Width8" (20.3cm)
Depth9" (22.9cm)
FinishWhite or Black enclosure and grille

RUGGED

DURABLE

SPEAKERS

AWESOME

Featuring a 5.25-inch IMG woofer 1-inch titanium dome tweeter mated to a square Tractrix® Horn durable UV-resistant enclosure non-corrosive grille easy draining input cup heavy gauge zinc C-bracket and 3/8"-16 threaded inserts the AW-525 easily creates the ultimate outdoor sound experience. Regardless of what Mother Nature throws its way the AW-525 will continue to deliver big time sound and worry-free performances.

Available in white or black finish.
