R-820F Floorstanding Speaker


Want the latest? Shop the New Reference R-800F Floorstanding Speaker Now.

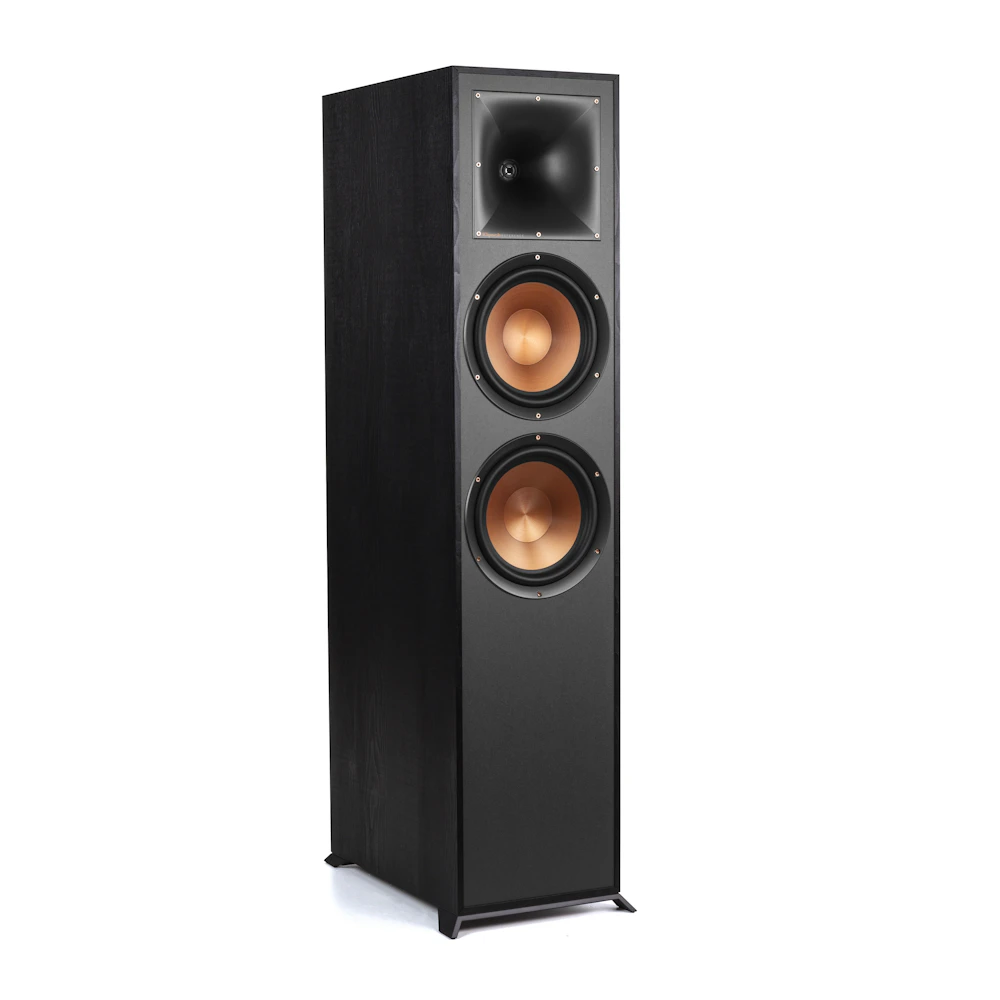

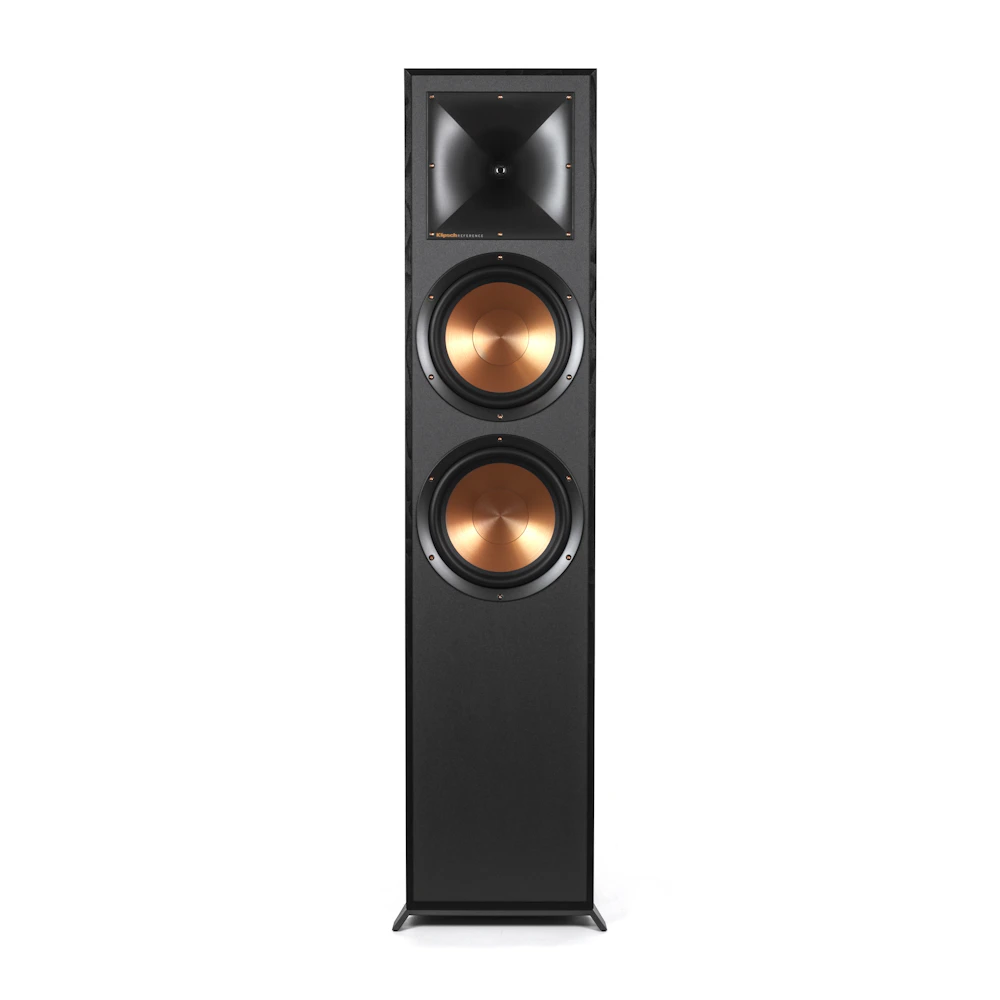

The Klipsch R-820F floorstanding speaker fills your room with amazing detail and clarity. Leveraging our proprietary horn-loaded technology and featuring dual 8" spun-copper IMG woofers, the R-820F delivers lifelike acoustics that brings your music and movies to life.

KLIPSCH RECOMMENDATIONS

Take your R-820F floorstanding speakers to the next level and turn your home theater system dreams into reality today.

AVAILABLE TO SHIP EARLY JANUARY
R 34 C Angle
TOP GIFT UNDER $250
R 120 SW Angle
AVAILABLE TO SHIP EARLY JANUARY
R 51 M Pair
Klipsch R 820 F Horn
Klipsch R 820 F Horn

Tractrix® Horn Technology

Klipsch exclusive 90° x 90º Tractrix® horn technology ensures the R-820F high-frequency energy is aimed at the listener and reduces artificial reverb or filtering caused by indirect sound bouncing off of walls. Using this proprietary focused technology gives you the best clarity, dynamics, and detail from your movies and music.


Reference LTS Tweeter
Reference LTS Tweeter

LINEAR TRAVEL SUSPENSION TWEETER

WITH KAPTON® SUSPENSION

Klipsch exclusive Linear Travel Suspension (LTS) aluminum tweeter minimizes distortion for enhanced, detailed performances. Using Kapton, an extremely light and rigid material, in the tweeter suspension provides high efficiency and improves resolution and detail. LTS tweeters are a hallmark of Klipsch speakers, making them some of the best speakers in the world.

Reference Floorstanding Woofers 2
Reference Floorstanding Woofers 2

Spun Copper IMG Woofers

Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.

Reference Floorstanding Port
Reference Floorstanding Port

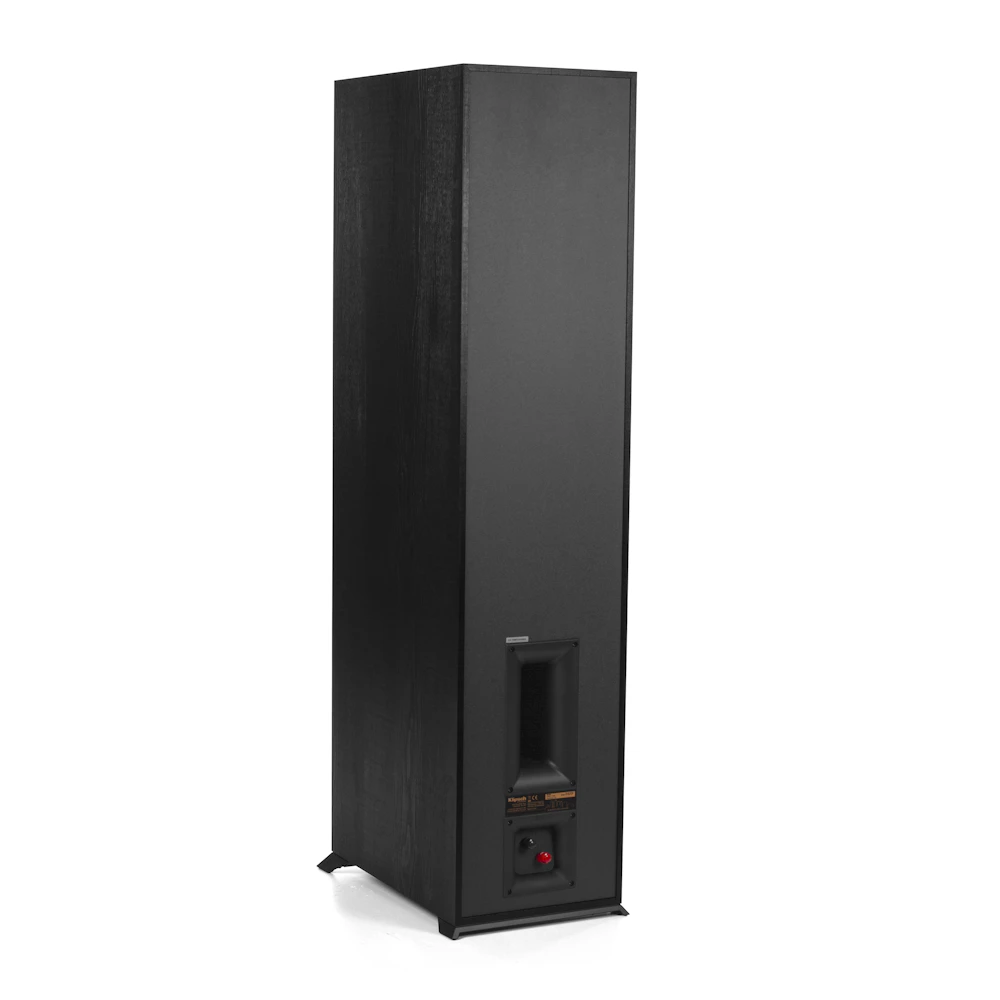

REAR TRACTRIX® PORT

The rear Tractrix port is perfectly matched to the cabinet and woofers, creating ideal airflow with minimal distortion or turbulence even at the lowest frequencies.

Reference 2018 Floorstanding Look
Reference 2018 Floorstanding Look

Sleek Design

Exposed fasteners, angled feet, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-820F floorstanding speaker a polished, modern appearance.

Reference 2018 Floorstanding Cabinet
Reference 2018 Floorstanding Cabinet

HIGH QUALITY CABINET DESIGN

Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.

Features

Key Product Features

1" Aluminum LTS tweeter
90x90 Square Tractrix Horn
Dual 8" Spun-Copper IMG Woofers
Bass-Reflex via Rear-Firing Tractrix® ports

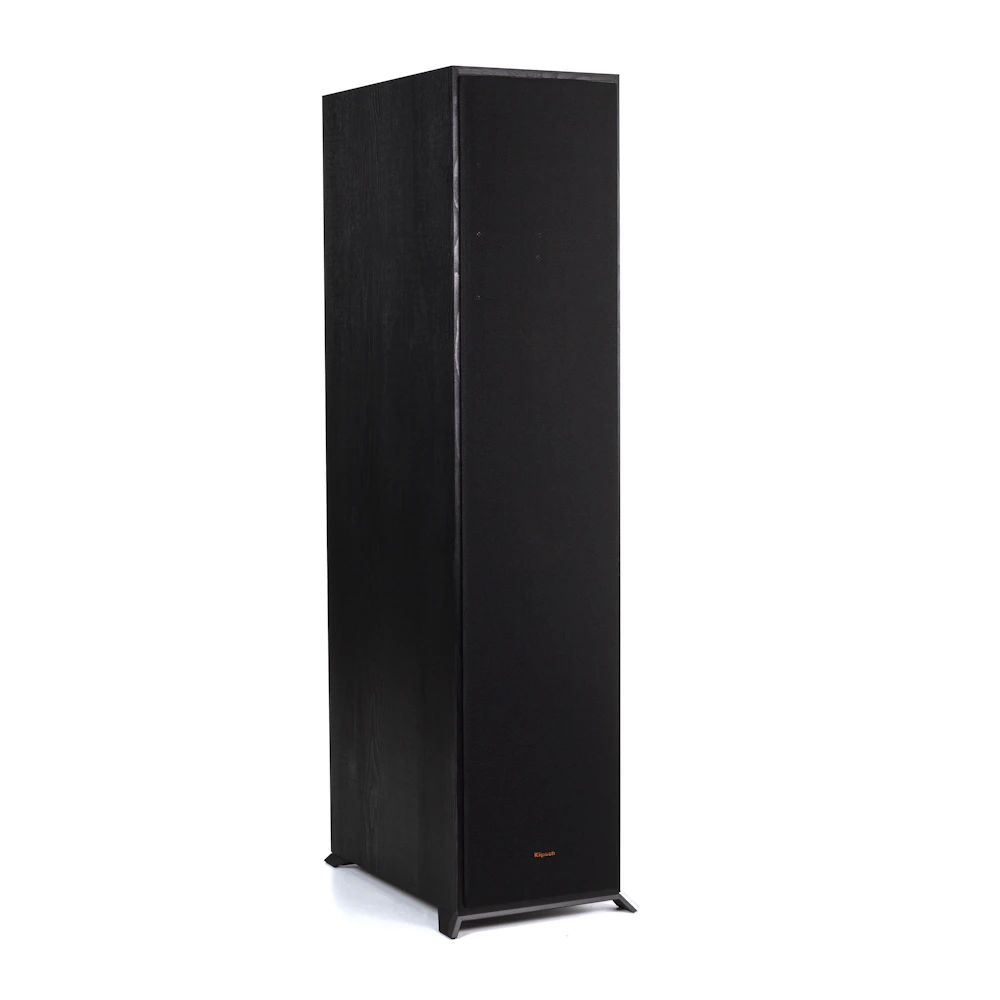

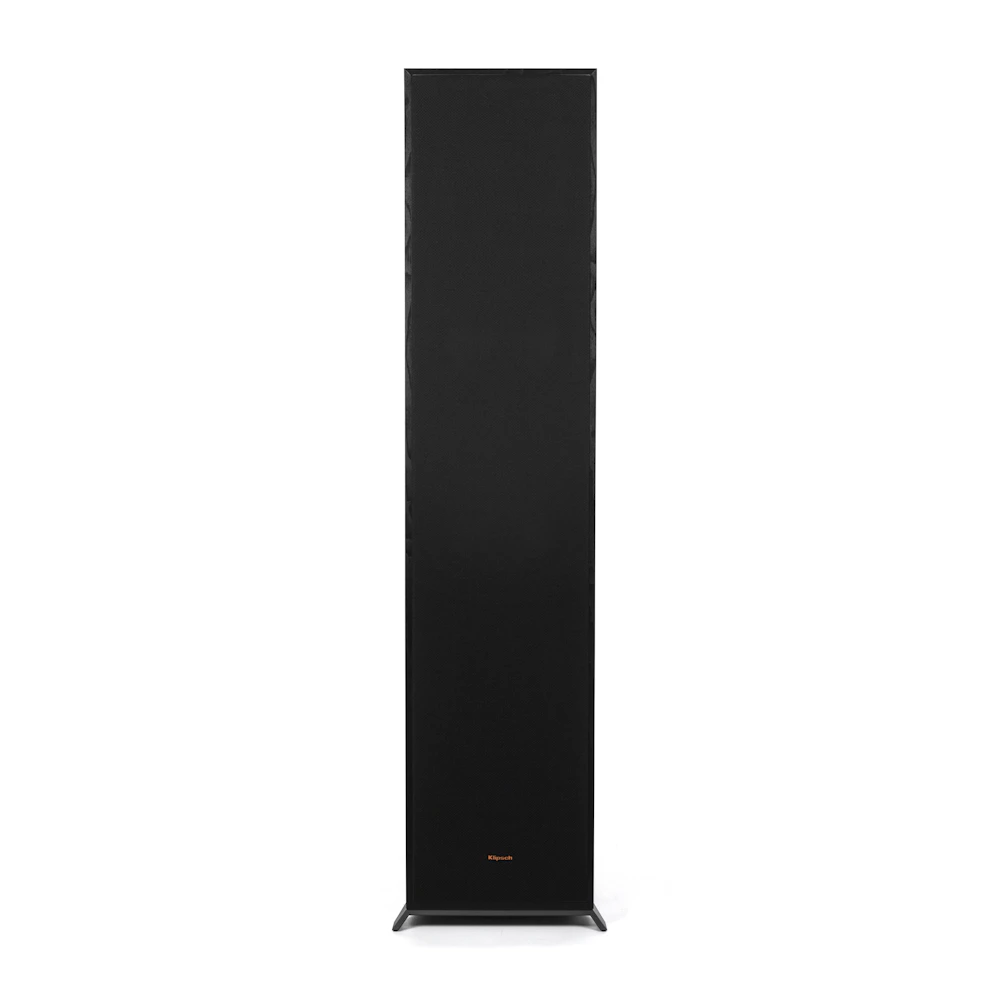

Strong, Flexible Removable Magnetic Grille
Dimensions: 43" x 10.9" x 17.5"

Documents

Spec Sheet

For more technical detail, download the Spec Sheet here: R 820 F Spec Sheet v01 .

Product Manual

Download the Product Manual for R-820F Floorstanding Speaker here: Reference Speakers 2018 Manual .
