CP-6T
The Klipsch Compact Performance Series CP-6T is a versatile 70/100 Volt speaker that brings powerful musical sound quality to retail, hospitality, restaurant and bar environments, indoors or out. Proprietary Tractrix® Horn technology for highly-efficient, low-distortion, musical sound.

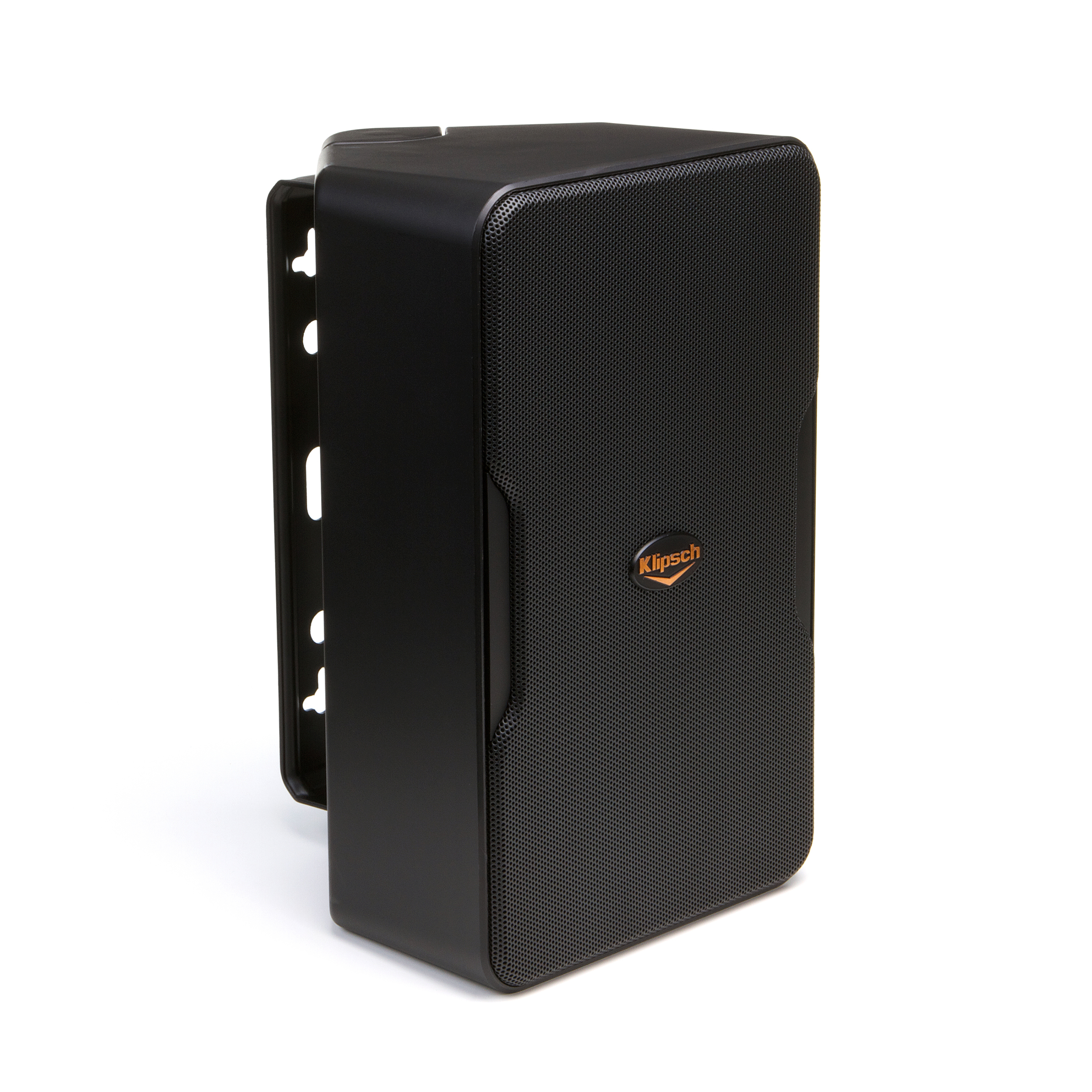

The CP-6T presents an appealing look from all angles with its integrated bracket and its ability to be tightly mounted into a corner with its V-shaped rear profile.
White
Black
Specifications
Key Product Specifications
| Frequency Response | 83Hz-22kHz +/- 3dB |
| Power Handling | 75 w (300 peak) (8 ohm bypass) |
| Sensitivity | 94 dB |
| Nominal Impedance | 8 ohm (8 ohm bypass) |
| Tweeter | .75" (1.9cm) aluminum dome tweeter |
| High Frequency Horn | 90° x 90° Tractrix® Horn |
| Woofer | 5.25" (13.3cm) long-throw IMG woofer |
| Crossover Frequency | 3kHz 12dB octave |
| Enclosure Type | Bass-reflex via dual front-firing ports |
| Speaker Enclosure | Anti-resonant, mineral-filled PPC; paintable, weather resistant |
| Grille | Powder-coated aluminum w/rotatable logo |
| Weight | 6.85 lbs (3.1 kg) |
| Dimensions | 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.1"(15.5cm) D |
| Speaker Dimensions w/ Wall Mount | 11.0"(27.9cm) H x 7.0"(17.8cm) W x 6.9"(17.5cm) D |
| Other Mounting Options | 1/4", 20-thread inserts on cabinet rear |
| Finish | White/Black enclosure and grille |
| Wire Gauge Accommodated | up to 16AWG |
| Included | Speakers (x2), Grilles (x2), Brackets (x2), Manual, Mounting Template, Bracket Retaining Screws (x4), Safety Instructions, Grille Removal Tool |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
CP 6 T Spec Sheet
.
Product Manual
Download the Product Manual for CP-6T here:
CPT Manual
.
