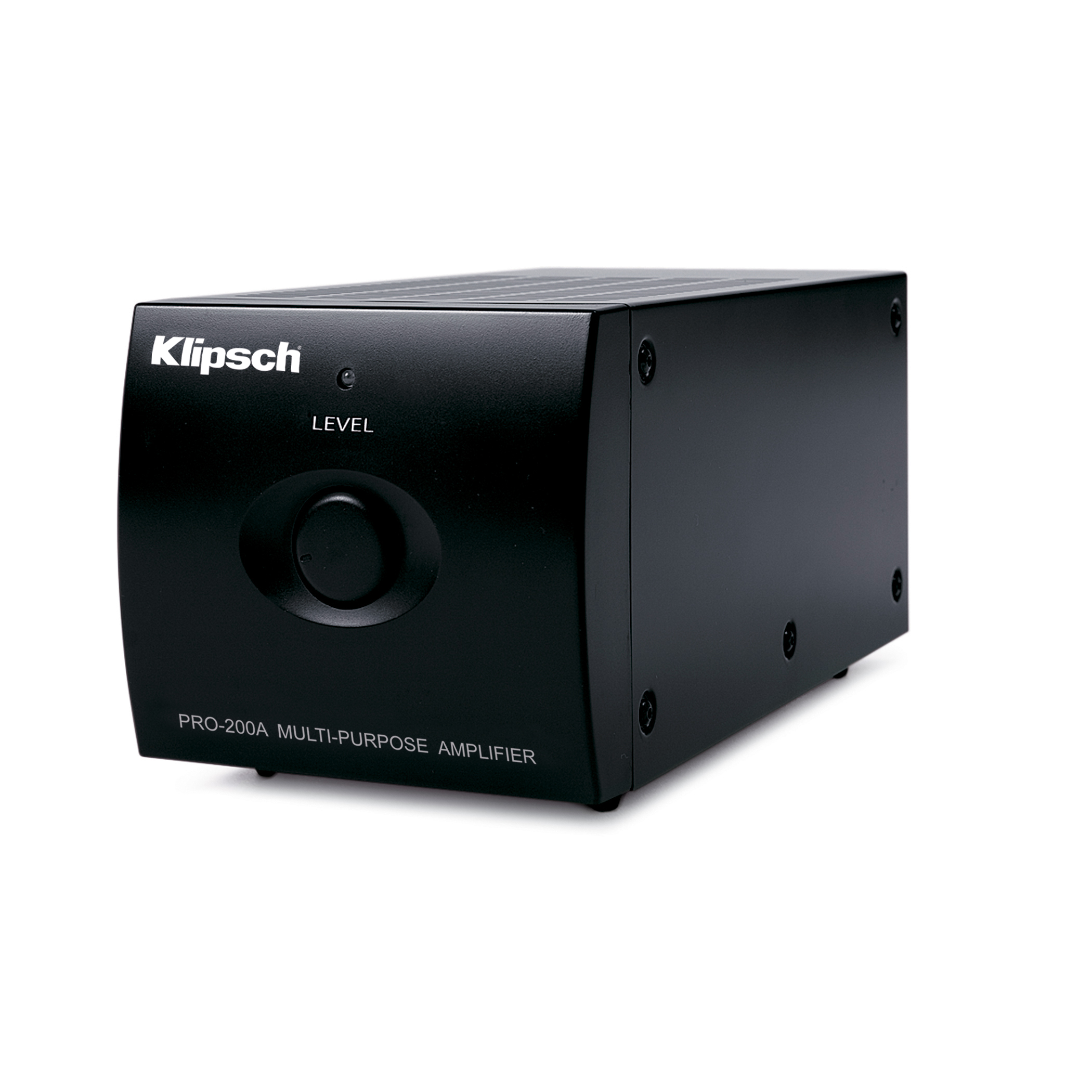

PRO-200A

The PRO-200A utilizes premium circuit and amp design to serve at the perfect unit to power the entire Klipsch Professional Series.

Specifications

Rated Power Output

2 x 100 Watts (Stereo) into 4 ohm Load 200 Watts (BTL) into 8 ohm Load

THD

<0.1%

Signal-To-Noise

>100dB

Crossover Frequency Response

@ Min position 18.5-55.2Hz 40Hz/0dB ref @ Max position 18.2-168.8Hz 40Hz/0dB ref

Auto Turn On Sensitivity

5mV +/-2mV Full Range 1KHz 5mV +/-2mV Input 50 Hz

Delay "Off" Time

8 minutes

Line Out Freq. Response

20Hz +/-5K - 20 KHz +/-5K 1KHz/0dB ref

Input Impedance

9.2K ohm +/-5%

Max Noise+Hum Vol Max

<1.0mV, Input Shorted

Power Requirement

115V 60Hz or 220 - 240V 50Hz

Dimensions

5.5” (140mm) H 5.69” (145mm) W 12.75” (324mm) D

Clearance for Ventilation

Top: Min. 0.375” (10mm) | Back: Min. 2” (50mm)

Weight

11 lbs (5.3 kg)

For more technical detail, download the Spec Sheet here: PRO 200 A Spec Sheet .

Download the Product Manual for PRO-200A here: PRO 200 A Manual v08 WEB .
