2-Way

Mid to large houses benefit with customary bi-amping of both traditional and space-saving systems. Klipsch passive processors allow larger amps combined with active PEQ for optimized bass for a particular size room, with easy setup and excellent performance from remaining drivers of three or four way systems.

KPT-942-B THX

2-WAY SYSTEM FOR MEDIUM AUDITORIUMS

The THX®-Certified KPT-942-B is a high-performance two-way screen and stage loudspeaker system well suited to medium-sized auditoriums. Based on the proven KPT-904-LF dual 15-inch bass unit it delivers powerful bass from a cabinet just 24 inches deep.

For high output combined with excellent coverage the system uses a KPT-402-HF Tractrix® Horn with a K-1132 two-inch exit titanium compression driver to reproduce middle and high frequencies. The KPT-942-B is also available, using a passive crossover, in a mono-amp configuration called the KPT-942-M.

  • Dual 15-inch bass unit
  • Tractrix® Horn with a two-inch exit titanium compression driver
  • 24 inches deep
  • Bi-amp configuration

KPT-942-M

2-WAY BEHIND THE SCREEN CINEMA SYSTEM

For high output combined with excellent coverage the system uses a KPT-402-HF Tractrix® Horn with a K-1132 two-inch exit titanium compression driver to reproduce middle and high frequencies. The KPT-942-M is also available without a passive crossover for bi-amplification as the model KPT-942-B.

  • Dual 15-inch bass unit
  • Tractrix® Horn with a two-inch exit titanium compression driver
  • 24 inches deep
  • Bi-amp configuration

KI-398-RGL

HIGH OUTPUT 2-WAY VERTICAL LINE ARRAY SYSTEM

The Klipsch KI-398-RGL is a full-range 22.5° trapezoidal design ideally suited for use as a vertical line array in a behind the screen cinema system. The loudspeaker has incredible output capability featuring a 15" high excursion cast frame woofer, large format 3" titanium compression driver and internal high-current full-range crossover.

KPT-942/4-B THX

2-WAY BI-AMP EXTENDED BASS SYSTEM FOR MEDIUM TO LARGE AUDITORIUMS

The THX®-Certified KPT-942/4-B two-way screen and stage loudspeaker system is based on our new KPT-415-LF quad 15-inch bass unit providing enhanced bass output while retaining the 24-inch depth of our smaller systems. Higher frequencies are handled by a KPT-402-HF Tractrix® Horn with a K-1132 two-inch exit titanium compression driver.

The KPT-942/4-B's high efficiency very high output and excellent coverage characteristics make it an outstanding cost-effective solution for medium and large auditoriums.

  • Quad 15-inch bass unit Tractrix® Horn with a two-inch exit titanium compression driver
  • 24-inch depth
  • Bi-amp configuration

KPT-904-B

2-WAY SYSTEM FOR MEDIUM AUDITORIUMS

A truly exceptional sounding mid-sized screen and stage loudspeaker system, the KPT-904-B is especially suited for stadium seating.

  • 3-inch Titanium diaphragm compression driver
  • Dual 15-inch low frequency cabinet
  • Bi-amp configuration

An advanced technology Tractrix® Horn, the KPT-904-HF is mated to the KDE-75-8P titanium compression driver and together with the dual 15-inch low frequency cabinet delivers sensational performance and accurate coverage control all at a remarkable price. The KPT-904-B is also available with a passive crossover for a mono-amp configuration as the KPT-904-M.

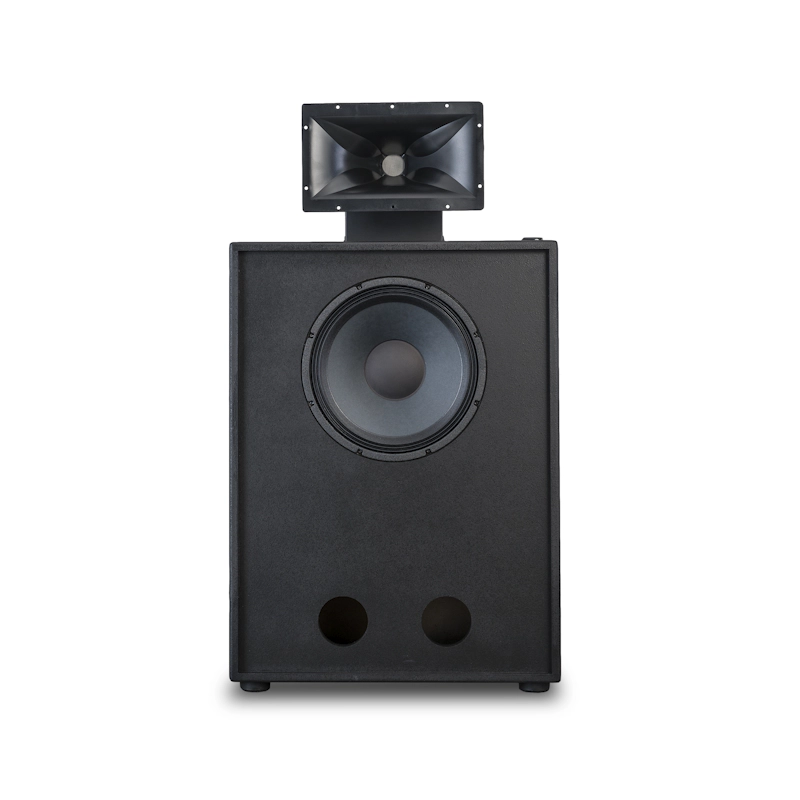

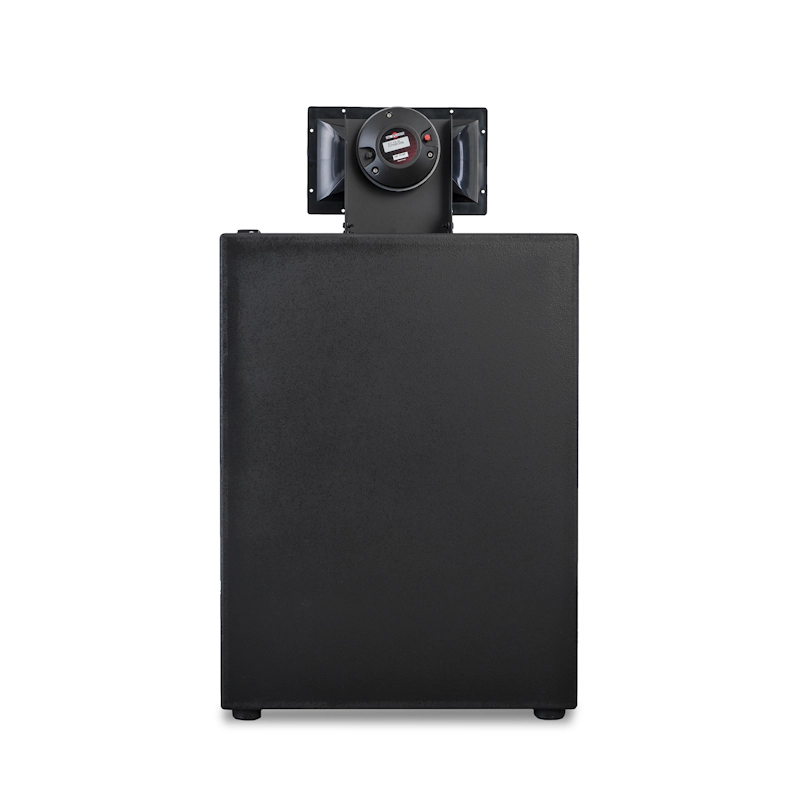

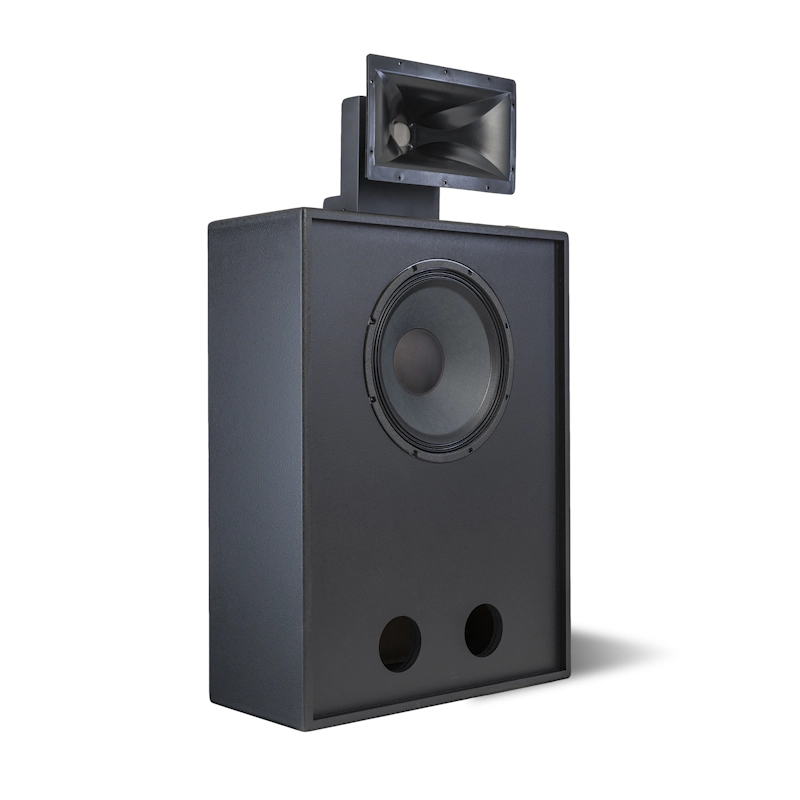

KPT-325-B

COMPACT 2-WAY BI-AMP SYSTEM FOR SMALL AUDITORIUMS

Engineered to save space, the new KPT-325-B is only 12-inches in depth.

  • Single 15-inch woofer enclosure
  • Tractrix® Horn produces more output with less energy
  • Bi-amp configuration

The system features the KPT-315-LF single 15-inch woofer enclosure coupled with the KPT-904-HF Tractrix® Horn. Amazingly this compact combination delivers the same frequency response as the KPT-904-B system. The KPT-325-B is also available for a mono-amp configuration utilizing a passive crossover (KPT-325-M).

KPT-904-M

An excellent sounding system designed for mid-sized screens and especially suited for stadium seating, the KPT-904-M not only is remarkably priced, its mono-amp configuration also keeps electronic and wiring costs in check.

  • 3-inch Titanium diaphragm compression driver
  • Dual 15-inch woofer low frequency cabinet
  • Mono-amp configuration

KPT-902-M

ECONOMICAL 2-WAY MONO-AMP SYSTEM FOR SMALL TO MEDIUM AUDITORIUMS

The KPT-902-M is an excellent entry-level 2-way system for small to medium auditoriums where cost effectiveness is a primary objective. Its sophisticated passive processor allows for a single amplifier operation and the minimal wiring runs associated with it, while still providing legendary Klipsch dynamic sound.

  • 1.75-inch Titanium diaphragm compression driver
  • Dual 15-inch woofer low frequency cabinet
  • Mono-amp configuration

KPT-325-M

Engineered to both reduce costs and save space, the new KPT-325-M is only 12-inches in depth.

  • Single 15-inch woofer enclosure
  • Tractrix® Horn/3-inch Titanium diaphragm compression driver produces more output with less energy
  • Mono-amp configuration

The system features the KPT-315-LF single 15-inch woofer enclosure coupled with the KPT-904-HF Tractrix® Horn. Amazingly this compact combination delivers the same frequency response as the KPT-904-B system. The KPT-325-M is also available for a bi-amp configuration (KPT-325-B).

KPT-310-M

ECONOMICAL 2-WAY MONO-AMP SYSTEM FOR SMALL AUDITORIUMS

Legendary Klipsch cinema sound in an economical, mono-amp operation system designed for small auditoriums.

  • 1.75-inch Titanium diaphragm compression driver/Tractrix® Horn
  • Single 15-inch woofer enclosure
  • Mono-amp configuration
