CS-18C

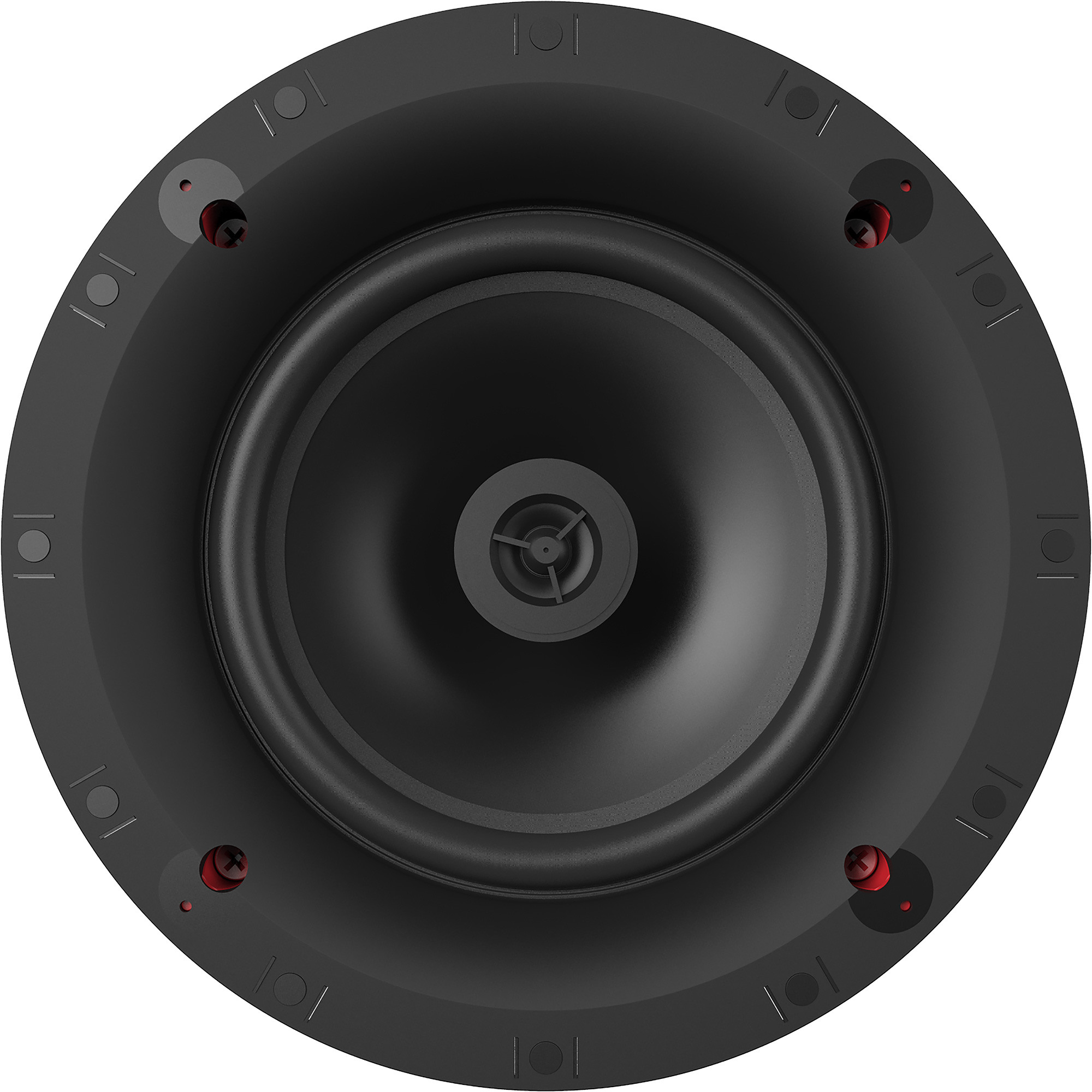

Using the same design principles of our premium architectural and box speaker lines, the Klipsch Custom series delivers true Klipsch sound to any budget. The CS-18C features an 8” Polymer woofer and a 1” Polymer tweeter. Utilizing the Sky Hook® patented Cinch by Swarm Installation System, your install time is reduced by 75%.
Features
Specifications
Specifications
| Frequency Range | 63Hz - 20kHz +/- 3dB |
Specifications
| High Frequency Driver | 1" (1.9cm) Polymer Dome Tweeter |
Specifications
| Low Frequency Driver | 8" (20.32cm) Polymer Woofer |
Specifications
| Sensitivity | 92 dB @ 2.83V / 1m |
Specifications
| Power Handling | 40W RMS / 160W PEAK |
Specifications
| Impedance | 8 Ohm Compatible |
Specifications
| Enclosure Type | ABS/Infinite Baffle |
Specifications
| Finish | Black Baffle/Frame, White Paintable Grille |
Specifications
| Product Dimensions | 10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D) |
Specifications
| Mounting Depth | 4.45” (11.3cm) |
Specifications
| Cutout Dimensions | 9.8” (24.9cm) |
Specifications
| Product Weight | 7.4 lbs (3.36kg) |
Specifications
| Included | Flat Magnetic Grille |
Specifications
| Installation Kit | IK-800-C II (Sold Separately) |
Specifications
| Fire Rated Enclosure | ME-800-C (Sold Separately) |
Specifications
| Built From | 2017 |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here: CS 18 C Spec Sheet v06.
Product Manual
Download the Product Manual for CS-18C here: Custom Series Manual v02 1.
