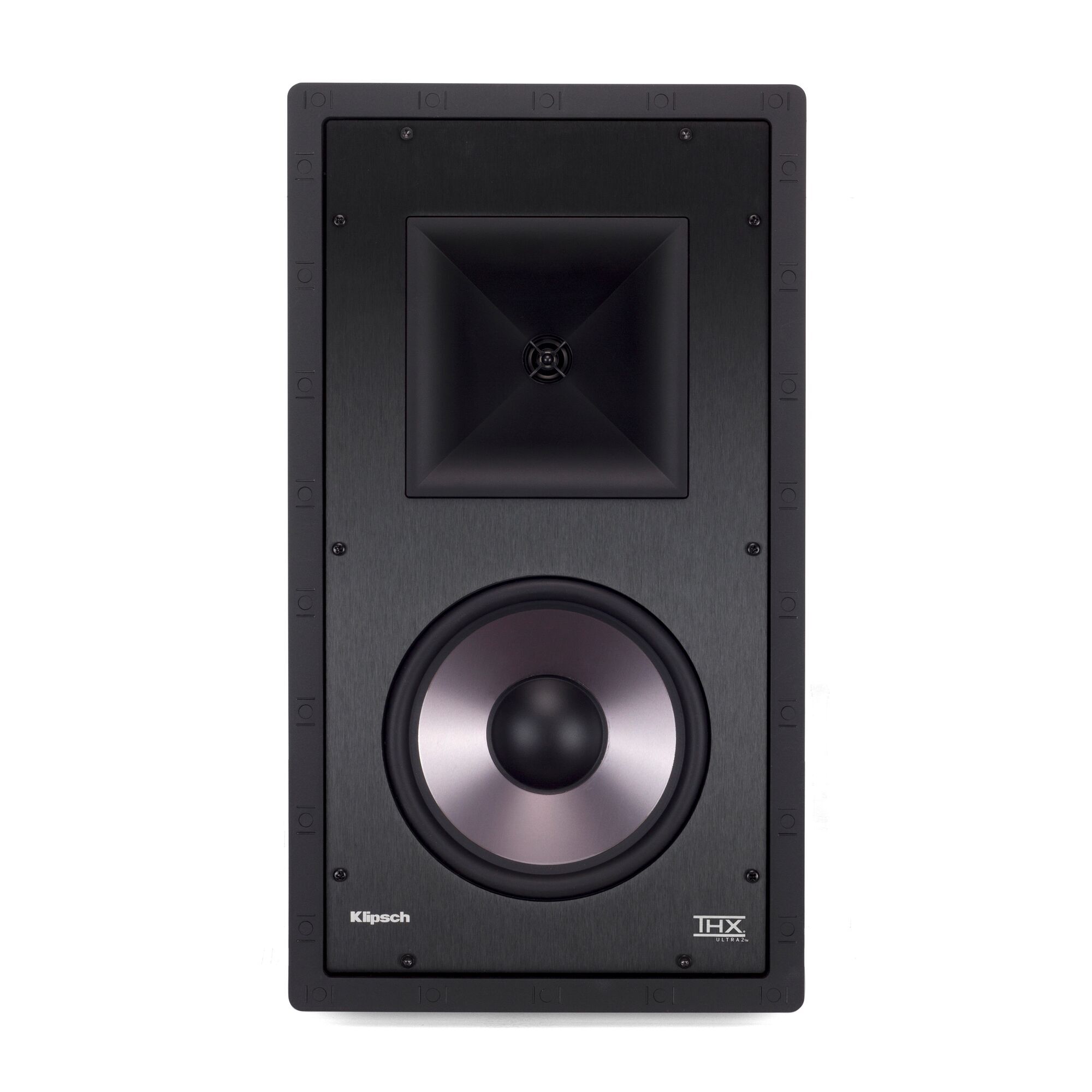

THX-8000-L
In-Wall Speaker
Engineered to bring real cinema sound to the comforts of home without taking up valuable floor space, the THX-8000-L offers the ultimate performance in a hidden solution loudspeaker. It is designed for left, center or right channel use or wherever a monopole speaker is needed.
Specifications
Key Product Specifications
| System Type | 2-way In-wall |
Key Product Specifications
| Frequency Response | 80Hz-20kHz +/- 3dB |
Key Product Specifications
| Power Handling | 150W/600W |
Key Product Specifications
| Sensitivity | 91dB |
Key Product Specifications
| Impedance | 8 Ohms |
Key Product Specifications
| Crossover Frequency | 2300Hz |
Key Product Specifications
| High Frequency Driver | 1” (2.5cm) Titanium dome compression driver mated to 80° x 80° Tractrix® Horn |
Key Product Specifications
| Low Frequency Driver | 8” (20cm) Aluminum Cone Woofer |
Key Product Specifications
| Enclosure Type | Sealed Enclosure |
Key Product Specifications
| Hole dimensions (mm/in, HxWxD) | 19” (48.3cm) H x 10” (25.4cm) W |
Key Product Specifications
| Product Dimensions | 20.63” (524 mm) H x 11.63” (295.4mm) W |
Key Product Specifications
| Mounting Depth | 3.88” (98.55mm) |
Key Product Specifications
| Weight | 17.5 lbs. (7.9kg) |
Key Product Specifications
| Finish | White with Brushed Aluminum Facia |
Key Product Specifications
| Installation Kit | IK-802-W |
Key Product Specifications
| Cutout Dimensions | 10.12” (485.90mm) W X 19.13” (257.05mm) H |
Documents
Spec Sheet
For more technical detail, download the Spec Sheet here:
THX 8000 L Spec Sheet
.
