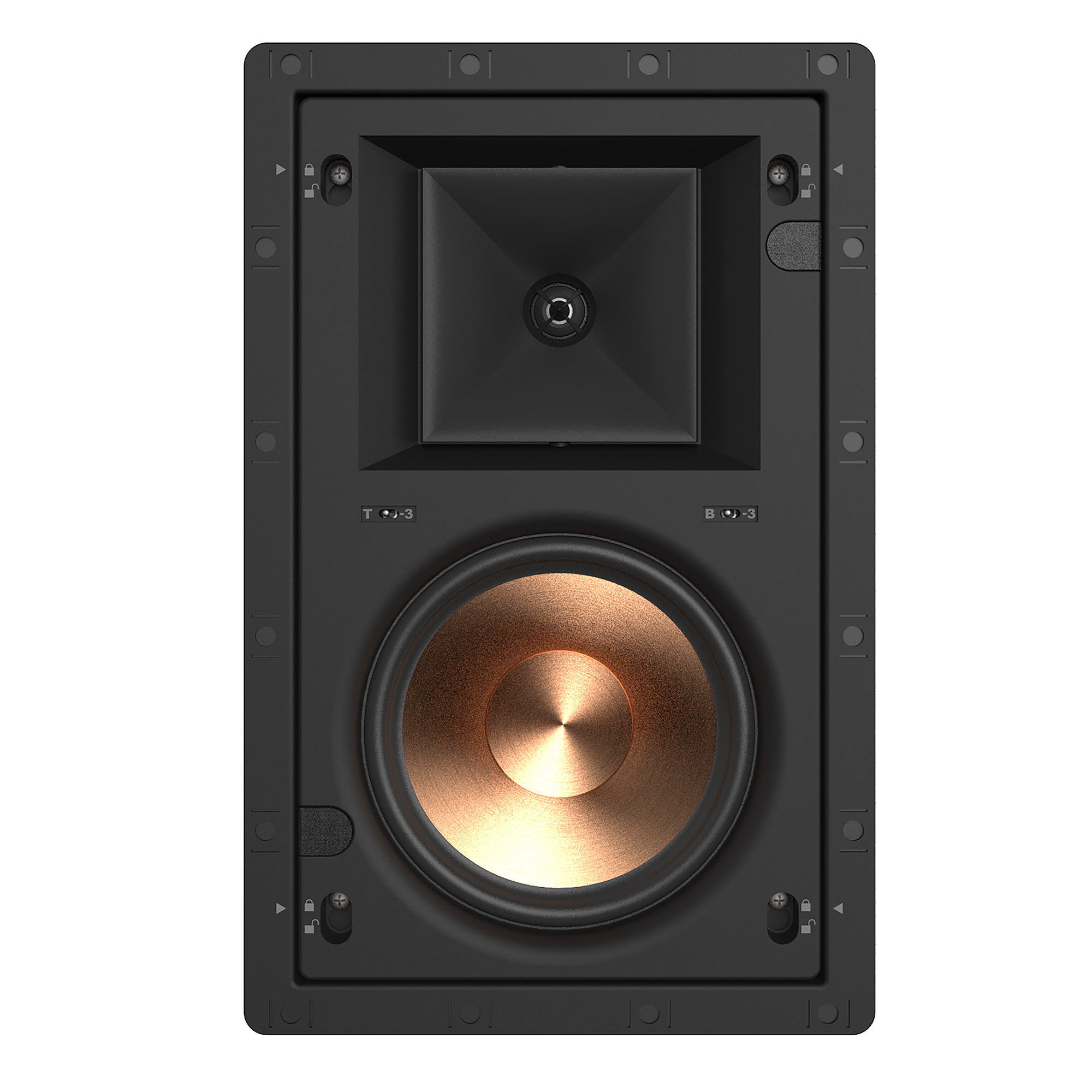

PRO-16RW

(# 1064443)

Featuring a 6.5” Injection Molded Graphite (IMG) Woofer and 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter, the PRO-16RW brings incredible acoustics with the signature Klipsch sound. Featuring the SecureFit™ Installation System, the Klipsch Professional Series Reference speakers are the ideal choice for custom home installation audio.

Features:

  • 6.5” Injection Molded Graphite (IMG) Woofer
  • 1” Pivot Aluminum Dome ABS Tractrix® Horn-Loaded Tweeter
  • Exclusive, modular SecureFit™ Installation System
  • Bezel-Free square and round paintable magnetic grilles
  • Controlled Dispersion™ Technology
  • Magnetic paint shield

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Frequency Range63Hz - 23kHz +/- 3dB
High Frequency Driver1" (2.54cm) Aluminum Dome Tweeter mated to a 90°x90° Tractrix® Horn
Low Frequency Driver6.5" (16.51cm) IMG Woofer
Sensitivity93 dB @ 2.83V / 1m
Coverage Angle90° x 90°
Power Handling50W RMS / 200W Peak
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions9.0” W x 14.1” H x 3.9” D (22.8cm W x 35.8cm H x 9.8cm D)
Mounting Depth3.78” (9.6cm)
Cutout Dimensions13” H X 8” W (33.0cm H X 20.3cm W)
Product Weight7.2lbs (3.25kg)
IncludedFlat Magnetic Grille, Paint Shield
Installation KitIK-650-W II or IK-650-W (Sold Separately)
Fire Rated EnclosureME-650-W (Sold Separately)
Built From2017
    Securefit W

    SECUREFIT™ INSTALLATION SYSTEM

    The exclusive modular installation system allows for the dog legs to be engaged by hand to a preset clamping force, eliminating the possibility of overtorquing. The speaker module is fixed to the bezel using machine screws instead of traditional drywall screws for a more robust, acoustically stable installation.

    Controlled Dispersion Technology Cdt W

    CONTROLLED DISPERSION™ TECHNOLOGY

    Controlled Dispersion™ Technology allows for the tweeter to be aimed up to 15° in any direction. This provides the perfect on-axis frequency response to off-center listening positions and the ideal solution for challenging installation positions.

    Cedia Pro Reference

    ALL NEW, BEZEL-FREE MAGNETIC GRILLE

    A completely redesigned powder coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

    Paint Shield 2

    PVC PAINT SHIELD INCLUDED

    Also included is a magnetic PVC paint shield that can be used to cover the speaker module to protect it from paint or construction dust during renovations or remodels.
