DS-180CDT

(# 1064167)

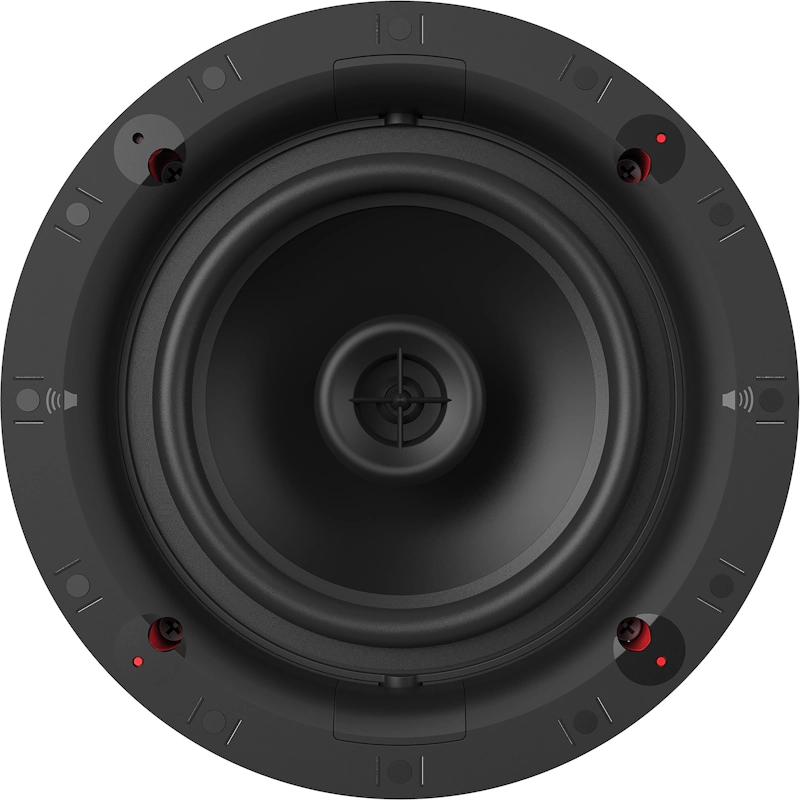

Get the Klipsch Signature Horn-Loaded performance at an incredible value, the DS-180CDT features a 8” Polypropylene woofer and a 1” Pivot Silk Dome tweeter mated to a round Tractrix® horn for dynamic acoustic performance. Utilizing Klipsch Patent-Pending SkyHook™ Tool-Free Installation System, your install time is reduced by 75%.

Features:

  • 8” Polypropylene woofer
  • 1” Pivot Silk Dome tweeter
  • Patent-Pending SkyHook™ Tool-Free Installation System
  • Bezel-Free Magnetic Grille

Select your state to locate the nearest Custom Install Rep Firm that you can contact. The Rep Firm will route your request to the proper dealer/installer.

CI Reps for State:

The following contacts represent Klipsch Custom Install reps in your selected state ().

Click here to send an email to ProSystemDesign@klipsch.com, and include details regarding your custom audio design/installation requirements. We will read your request and reply within 48 hours of receiving your email.

Specifications

Frequency Range73Hz - 20kHz +/- 3dB
High Frequency Driver1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn
Low Frequency Driver8" (20.32cm) Polypropylene Woofer
Sensitivity94 dB @ 2.83V / 1m
Coverage Angle100°
Power Handling50W RMS / 200W RMS
Impedance8 Ohm Compatible
Enclosure TypeABS/Infinite Baffle
FinishBlack Baffle/Frame, White Paintable Grille
Product Dimensions10.75” W x 10.75” H x 4.5” D (27.3cm H x 27.3cm W x 11.5cm D)
Mounting Depth4.45” (11.3cm)
Cutout Dimensions9.8” (24.9cm)
Product Weight7.4 lbs (3.36kg)
IncludedFlat Paintable Magnetic Grille
Installation KitIK-800-C II (Sold Separately)
Fire Rated EnclosureME-800-C (Sold Separately)
Built From2017
    Ds Sky Hook

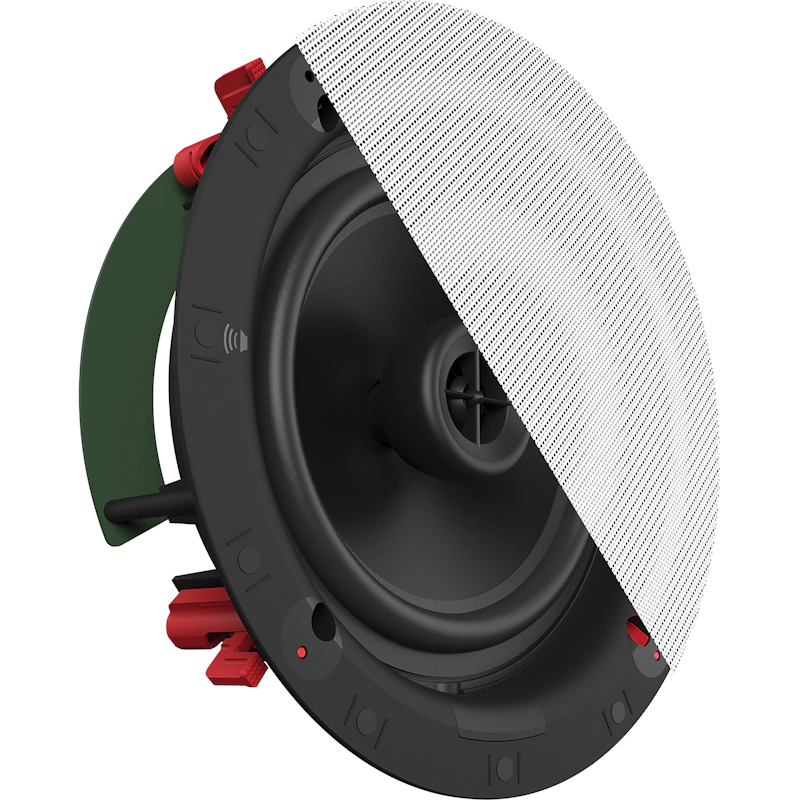

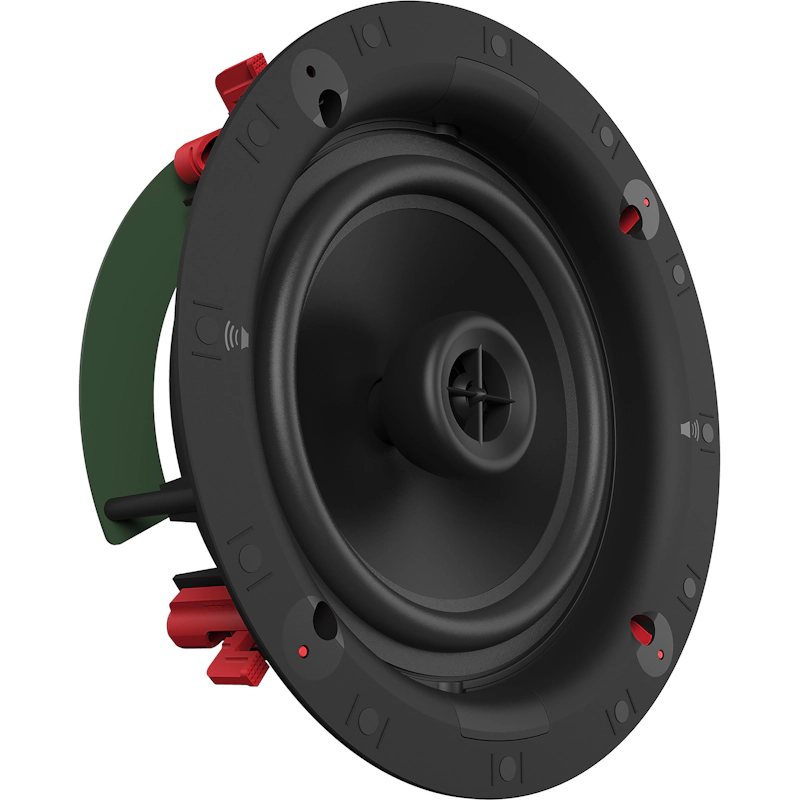

    SKYHOOK™ TOOL-FREE INSTALLATION SYSTEM

    The exclusive installation system by Swarm technology engages the dog legs automatically when the speaker is inserted into the cutout hole with a preset clamping force, eliminating the possibility of overtorquing. This fast, easy installation system reduces install time by up to 75%.

    Ds Grille

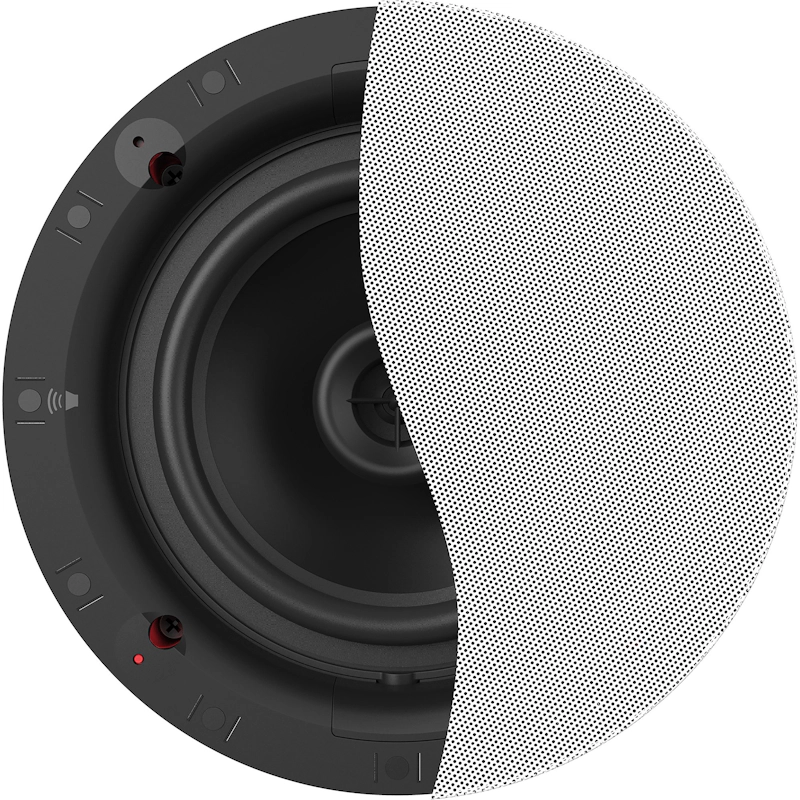

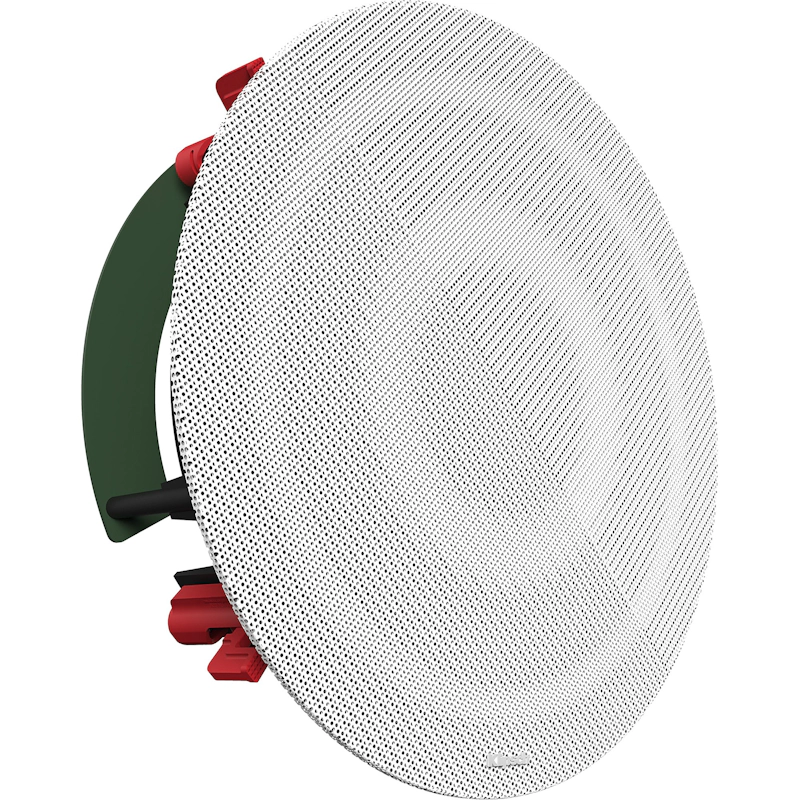

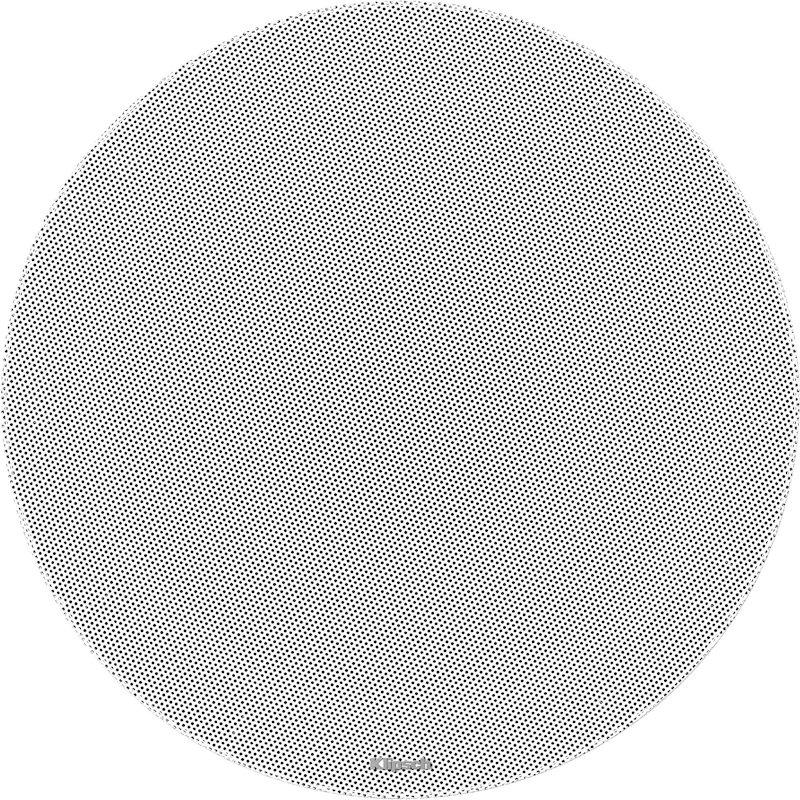

    ALL NEW, BEZEL-FREE MAGNETIC GRILLE

    A completely redesigned powercoated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

    Ds Tweeter

    HORN-LOADED PERFORMANCE

    Get crystal clear sound with minimal effort through Klipsch signature horn-loaded speakers. We've been perfecting the art of horn-loaded audio since 1946.
